Servometer

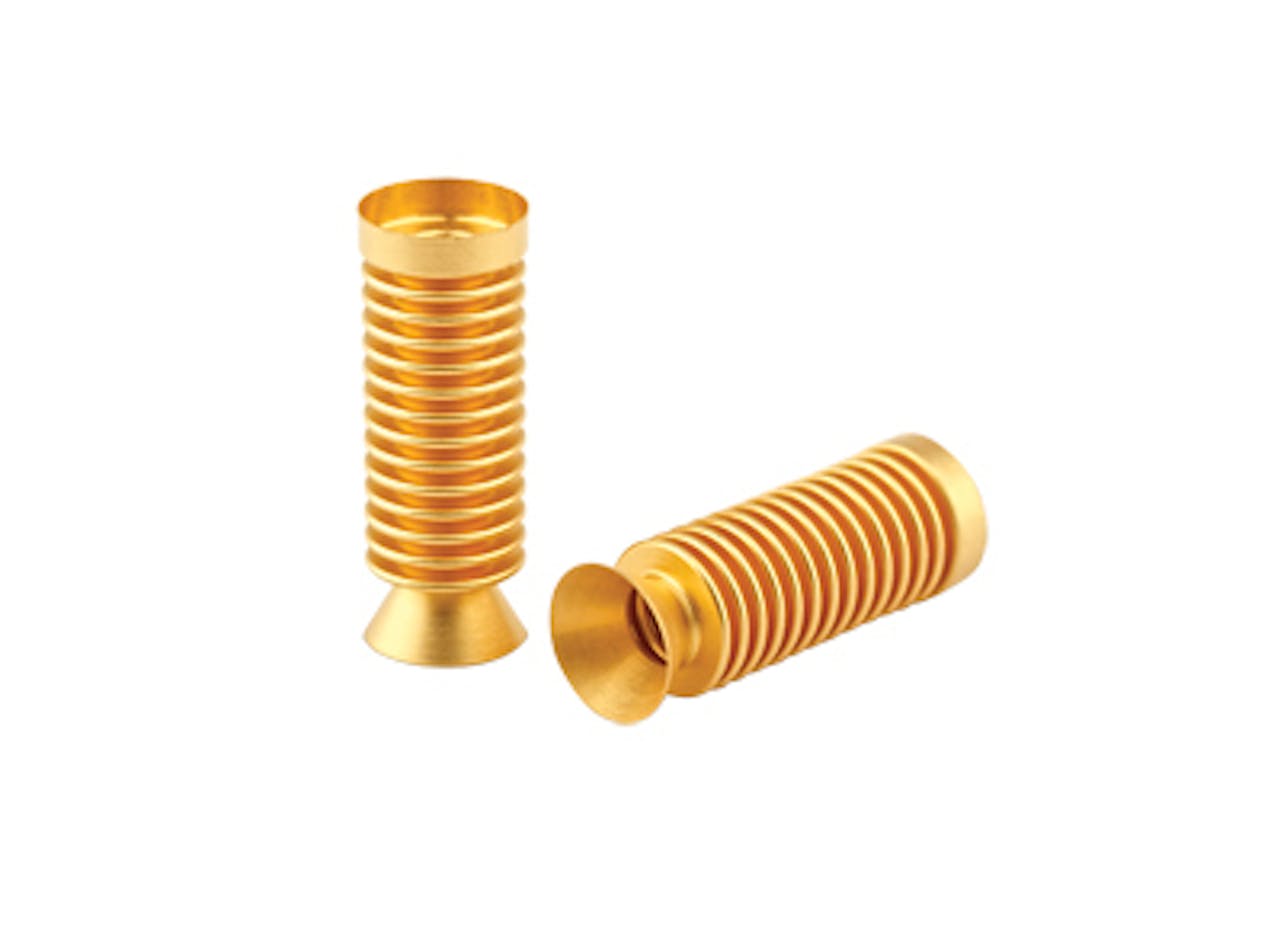

SK-18647 - 0.096 Inch OD Interconnecting Electrical Contact

Inventory:
Estimated Lead Time

Electrical contacts designed to interconnect and provide flexible connections, with an overall length of 0.264 Inch, allowing for a stroke of 0.042 Inch, and coated in .00005" Gold.

Download CAD
Unit System
Specs (in standard)
Label Value
Angular Misalignment 31 deg
Brand Servometer
C 0.195 in
Display Name SK-18647
End Type Female
Finish .00005" Gold
Length L 0.264 in
Metallic Resistance 0.022
Minimum Force 2.587 oz
Outside Diameter 0.096 in
Parallel Offset 0.021 in
SKU SK-18647
Stroke 0.042 in
Total Coils 13
Specs (in metric)
Label Value
Angular Misalignment 31 deg
Brand Servometer
C 4.95 mm
Display Name SK-18647
End Type Female
Finish .00005" Gold
Length L 6.71 mm
Metallic Resistance 0.02
Minimum Force 73.34 g
Outside Diameter 2.44 mm
Parallel Offset 0.53 mm
SKU SK-18647
Stroke 1.07 mm
Total Coils 13
