S-989CS - 1.91" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

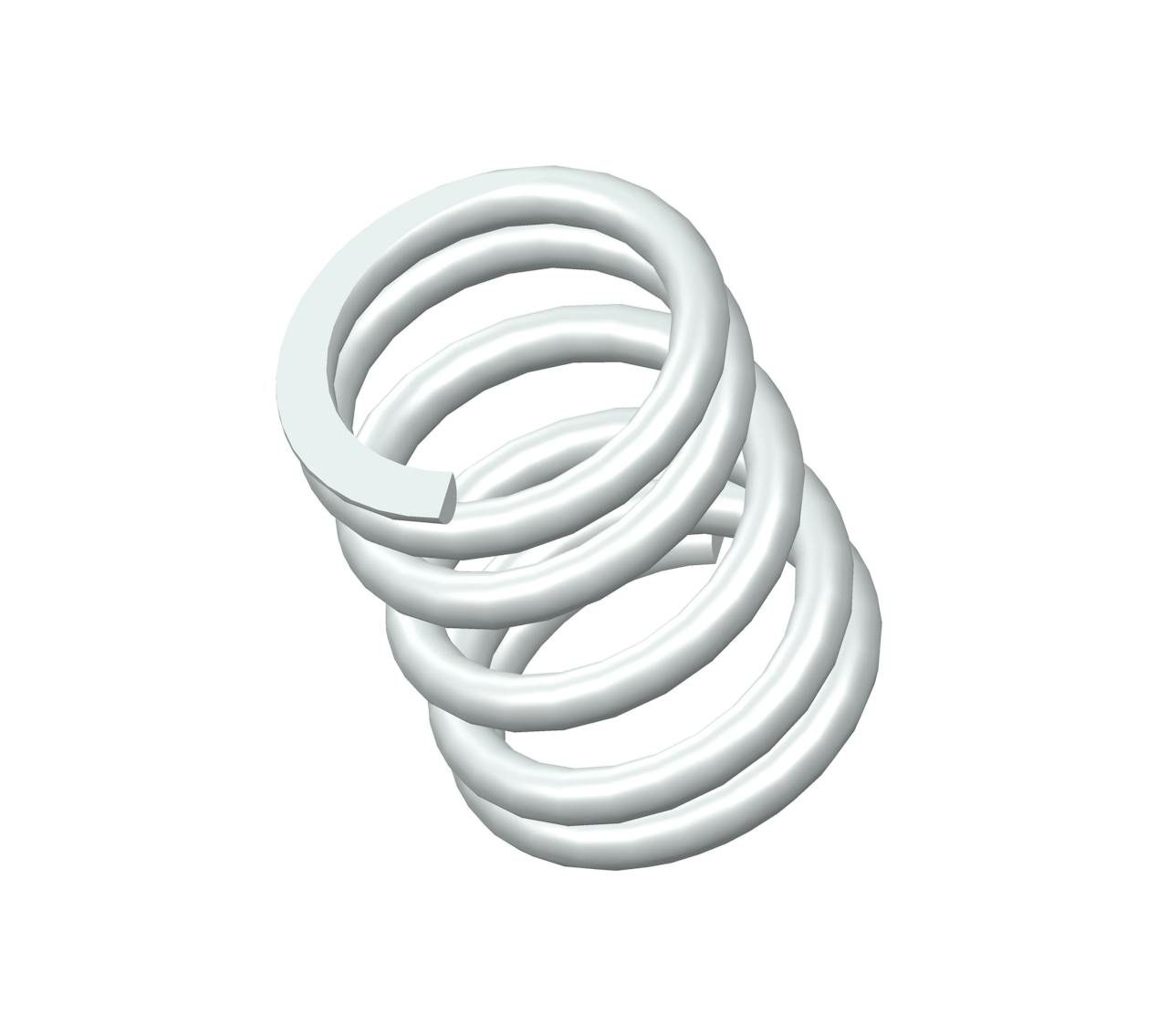

Compression spring manufactured from 302/304 stainless steel with 5.6 coils and closed & ground ends. This spring features an O.D. of 1.515", and an I.D. of 1.135".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-989 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.91 in |
| Inside Diameter | 1.135 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.515 in |
| Part Type | Standard |
| Rate | 204 lbs/in |
| SKU | S-989CS |
| Solid Length | 1.066 in |
| Suggested Max Deflection | 0.568 in |
| Suggested Max Load | 116 lbf |
| Total Coils | 5.6 |
| Wire Diameter | 0.192 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-989 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 48.51 mm |
| Inside Diameter | 28.83 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 38.48 mm |
| Part Type | Standard |
| Rate | 35.72 N/mm |
| SKU | S-989CS |
| Solid Length | 27.08 mm |
| Suggested Max Deflection | 14.43 mm |
| Suggested Max Load | 515.97 N |
| Total Coils | 5.6 |
| Wire Diameter | 4.88 mm |
The S-989 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-989CS compression spring is designed with a free length of 1.69" total of 5.33 coils, and a rate of 47 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-989 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-989CS compression spring is designed with a free length of 1.69" total of 5.33 coils, and a rate of 47 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-989 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
