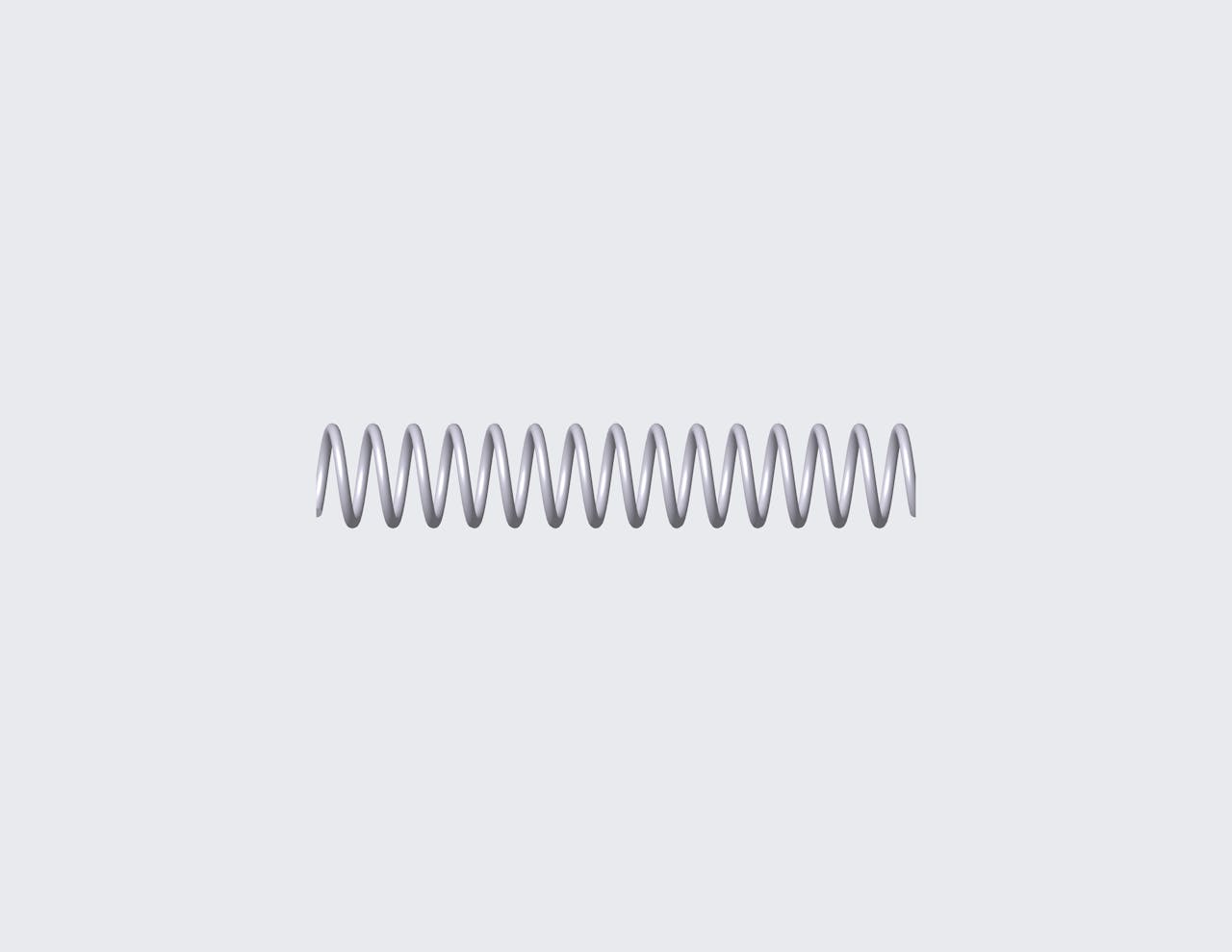

50325SCS - 2.52" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.443", and an I.D. of 0.344".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50325S
Ends Closed & Ground
Finish Passivated
Free Length 2.52 in
Inside Diameter 0.344 in
Material 316 Stainless Steel
Outside Diameter 0.443 in
Rate 9.612 lbs/in
SKU 50325SCS
Solid Length 0.714 in
Suggested Max Deflection 0.822 in
Suggested Max Load 7.9 lbf
Total Coils 14.5
Wire Diameter 0.049 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50325S
Ends Closed & Ground
Finish Passivated
Free Length 64.01 mm
Inside Diameter 8.74 mm
Material 316 Stainless Steel
Outside Diameter 11.25 mm
Rate 1.68 N/mm
SKU 50325SCS
Solid Length 18.14 mm
Suggested Max Deflection 20.88 mm
Suggested Max Load 35.14 N
Total Coils 14.5
Wire Diameter 1.24 mm
The 50325SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.049" diameter 316 stainless steel, the 50325S spring design exhibits reliable strength across its 14.5 active coils, withstanding repeated compression cycles with a maximum load of 7.9 lbf without succumbing to fatigue.

We manufacture the 50325S design to provide a compression spring that is 2.52" long at rest and provides a consistent rate of 9.612 lbs/in along its recommended maximum of 0.822" deflection. For best results, your application should fully accommodate the inner (0.344") and outer (0.443") diameters of this spring and be designed for its closed & ground end configuration.
