S-933CS - 1.28" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

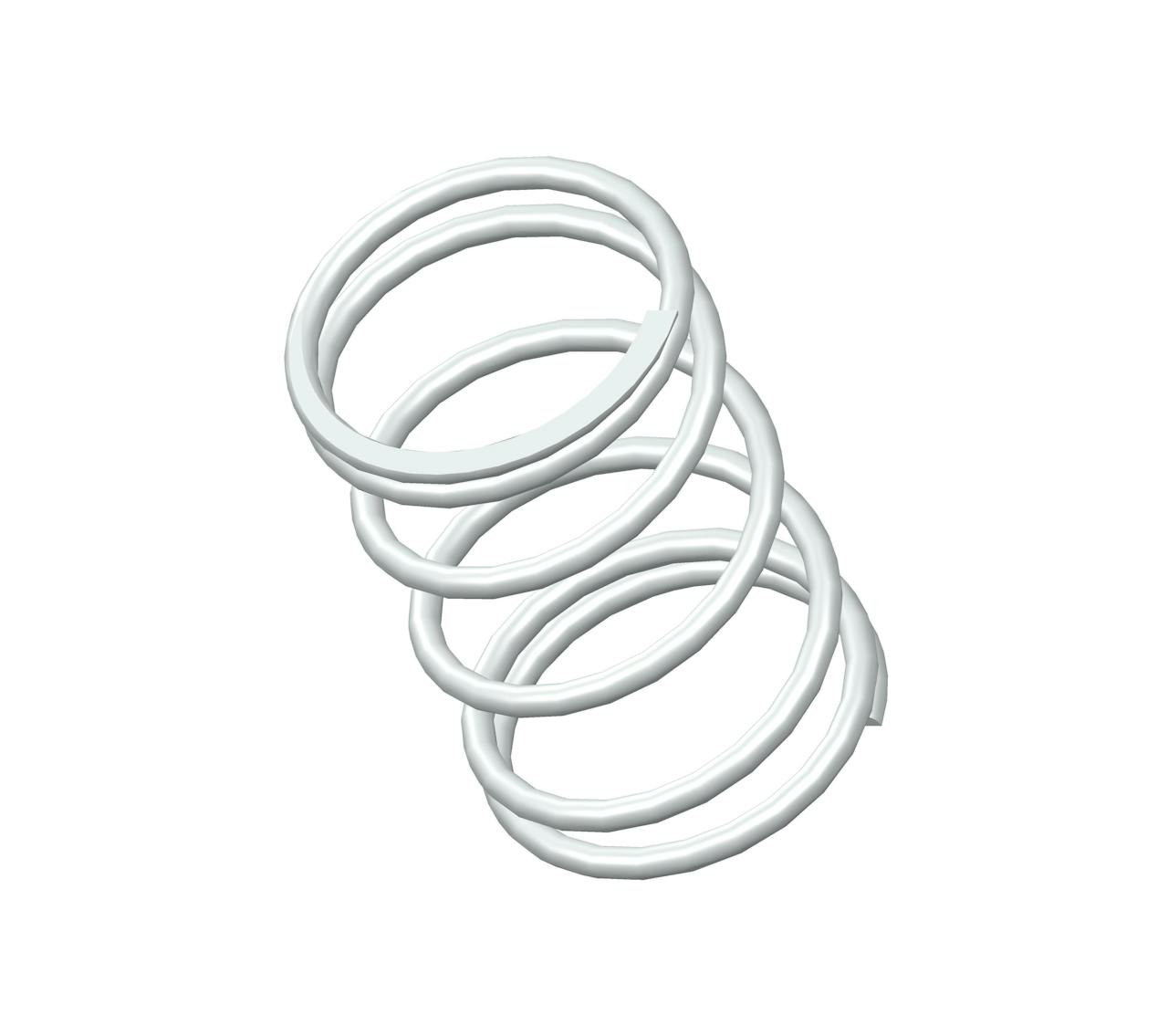

Compression spring manufactured from 302/304 stainless steel with 5.8 coils and closed ends. This spring features an O.D. of 0.812", and an I.D. of 0.686".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-933 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.28 in |
| Inside Diameter | 0.686 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.812 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | S-933CS |
| Solid Length | 0.423 in |
| Suggested Max Deflection | 0.849 in |
| Suggested Max Load | 10.2 lbf |
| Total Coils | 5.8 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-933 |
| Ends | Closed |
| Finish | None |
| Free Length | 32.51 mm |
| Inside Diameter | 17.42 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 20.62 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | S-933CS |
| Solid Length | 10.74 mm |
| Suggested Max Deflection | 21.56 mm |
| Suggested Max Load | 45.37 N |
| Total Coils | 5.8 |
| Wire Diameter | 1.59 mm |
The compression spring S-933CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-933 compression spring design exhibits exceptional tensile strength and resilience.
The S-933 design is manufactured with a free length of 1.28", with an outer diameter of 0.812", an inner diameter of 0.686", and a total of 5.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The S-933CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-933 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
