S-923CS - 0.63" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

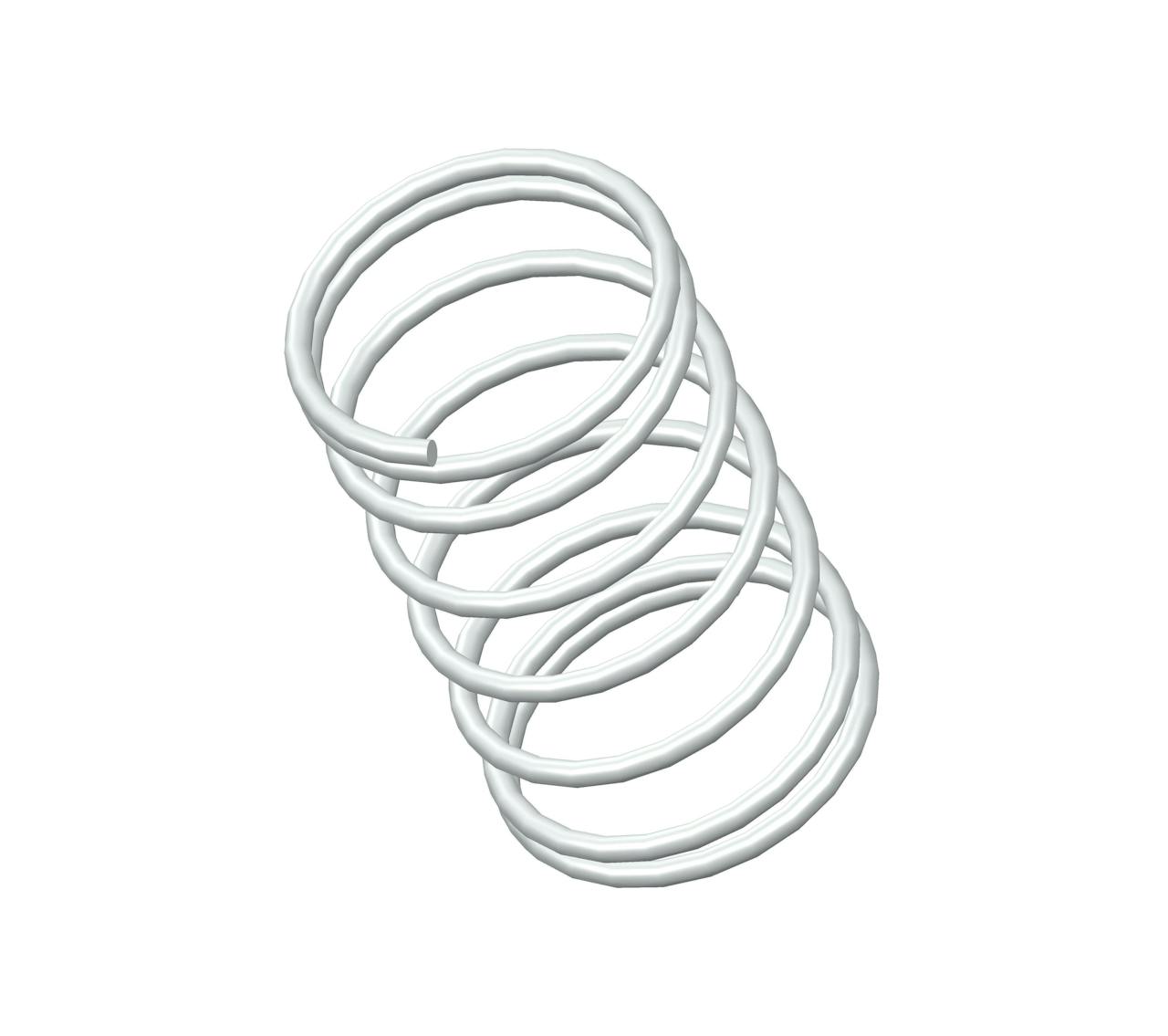

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.312".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-923 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.312 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.36 in |
| Part Type | Standard |
| Rate | 2 lbs/in |
| SKU | S-923CS |
| Solid Length | 0.2 in |
| Suggested Max Deflection | 0.42 in |
| Suggested Max Load | 0.84 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-923 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 7.92 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 9.14 mm |
| Part Type | Standard |
| Rate | 0.35 N/mm |
| SKU | S-923CS |
| Solid Length | 5.08 mm |
| Suggested Max Deflection | 10.67 mm |
| Suggested Max Load | 3.74 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.61 mm |
The S-923 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-923CS compression spring is designed with a free length of 1.19" total of 9.6 coils, and a rate of 30 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-923 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-923CS compression spring is designed with a free length of 1.19" total of 9.6 coils, and a rate of 30 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-923 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
