67884SCS - 0.75" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

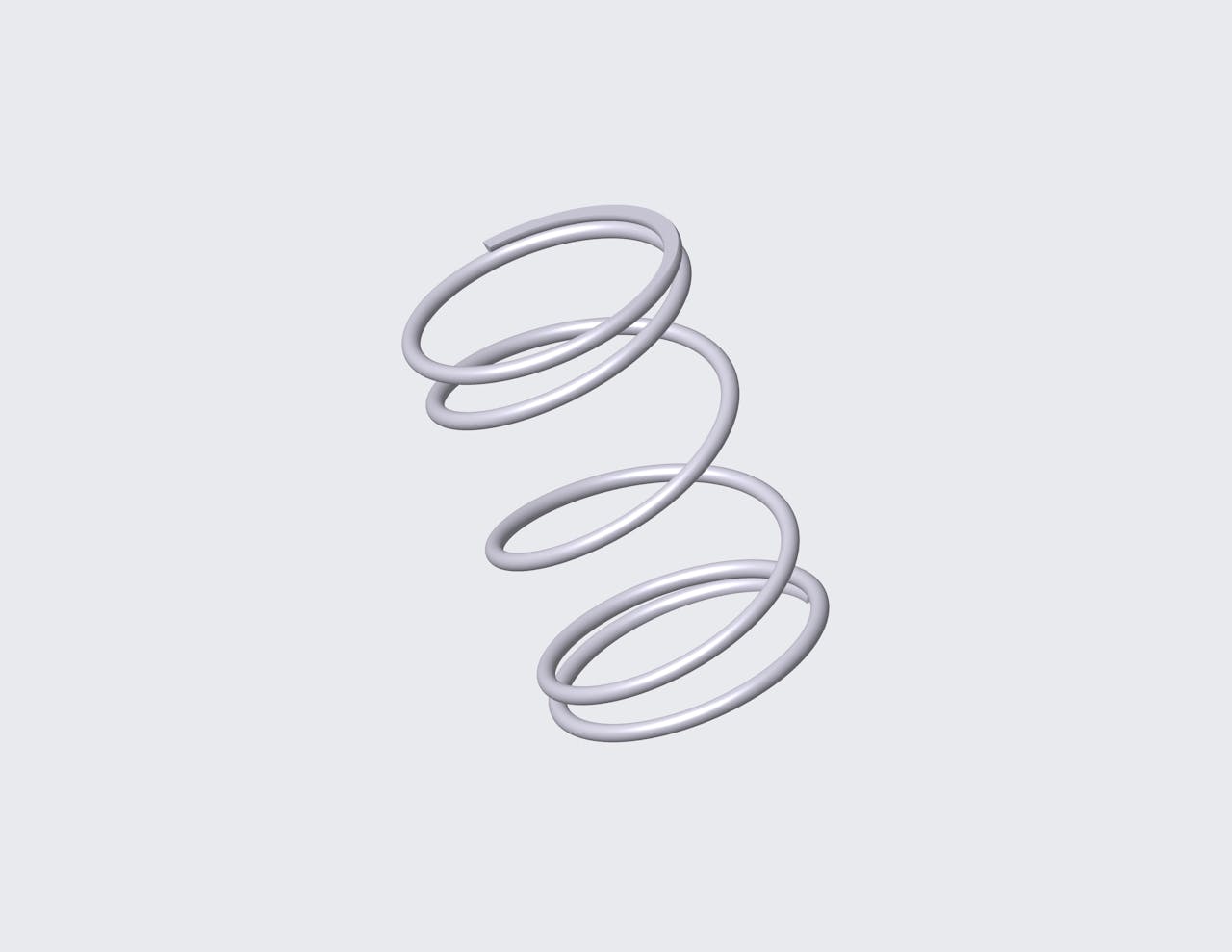

Compression spring manufactured from 316 stainless steel with 5.25 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.438".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67884S
Ends Closed
Finish Passivated
Free Length 0.75 in
Inside Diameter 0.438 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 3.443 lbs/in
SKU 67884SCS
Solid Length 0.194 in
Suggested Max Deflection 0.545 in
Suggested Max Load 1.876 lbf
Total Coils 5.25
Wire Diameter 0.031 in
The compression spring 67884SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 67884S compression spring design exhibits exceptional tensile strength and resilience.

The 67884S design is manufactured with a free length of 0.75", with an outer diameter of 0.5", an inner diameter of 0.438", and a total of 5.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.443 lbs/in.

The 67884SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 67884S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
