Century Spring

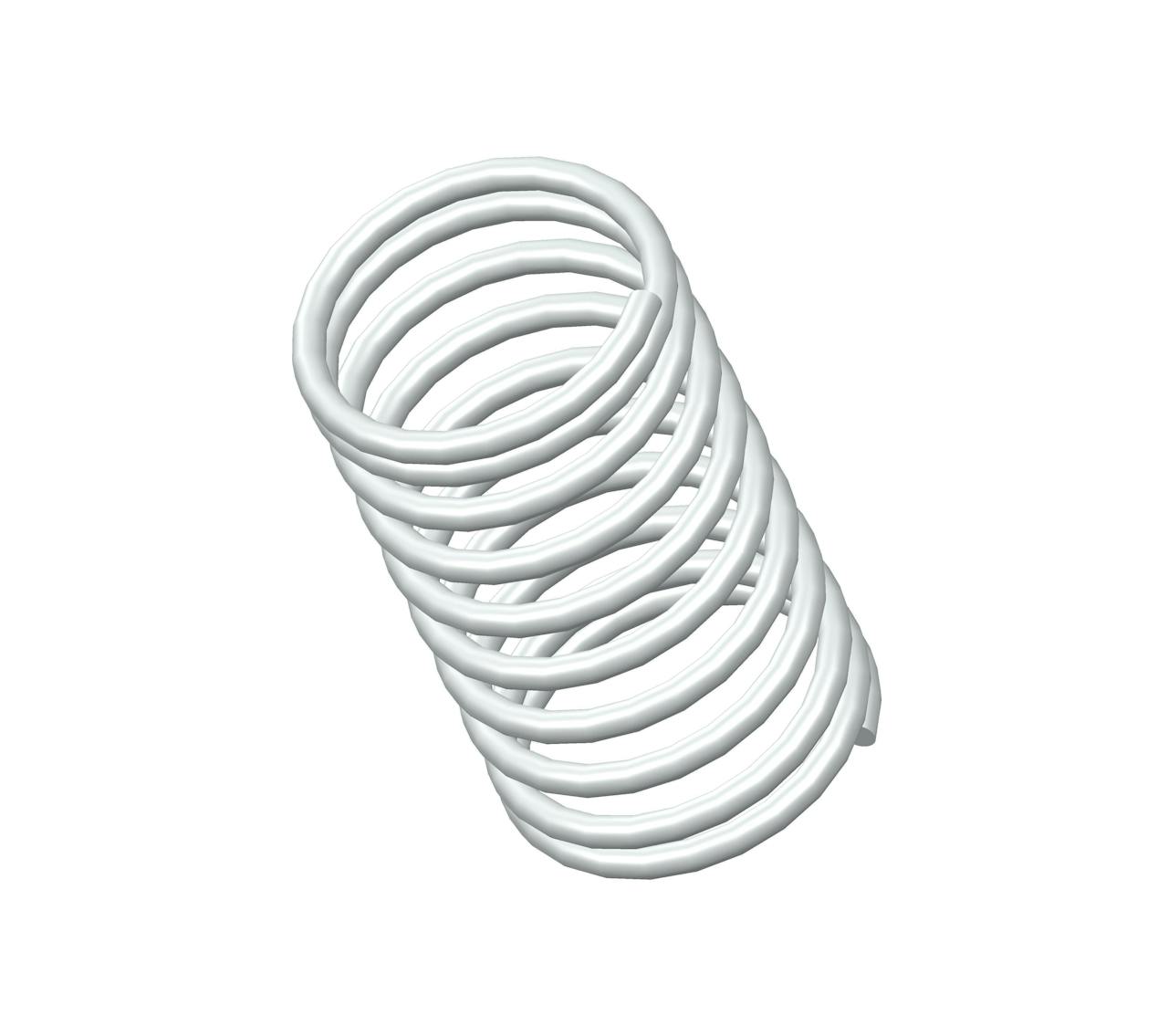

S-892CS - 0.69" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.311".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-892
Ends Closed
Finish None
Free Length 0.69 in
Inside Diameter 0.311 in
Material 302/304 Stainless Steel
Outside Diameter 0.375 in
Part Type Standard
Rate 4.1 lbs/in
SKU S-892CS
Solid Length 0.35 in
Suggested Max Deflection 0.34 in
Suggested Max Load 1.4 lbf
Total Coils 10
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-892
Ends Closed
Finish None
Free Length 17.53 mm
Inside Diameter 7.9 mm
Material 302/304 Stainless Steel
Outside Diameter 9.53 mm
Part Type Standard
Rate 0.72 N/mm
SKU S-892CS
Solid Length 8.89 mm
Suggested Max Deflection 8.64 mm
Suggested Max Load 6.23 N
Total Coils 10
Wire Diameter 0.81 mm
The S-892CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.032" diameter 302/304 stainless steel, the S-892 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 1.4 lbf without succumbing to fatigue.

We manufacture the S-892 design to provide a compression spring that is 0.69" long at rest and provides a consistent rate of 4.1 lbs/in along its recommended maximum of 0.34" deflection. For best results, your application should fully accommodate the inner (0.311") and outer (0.375") diameters of this spring and be designed for its closed end configuration.
