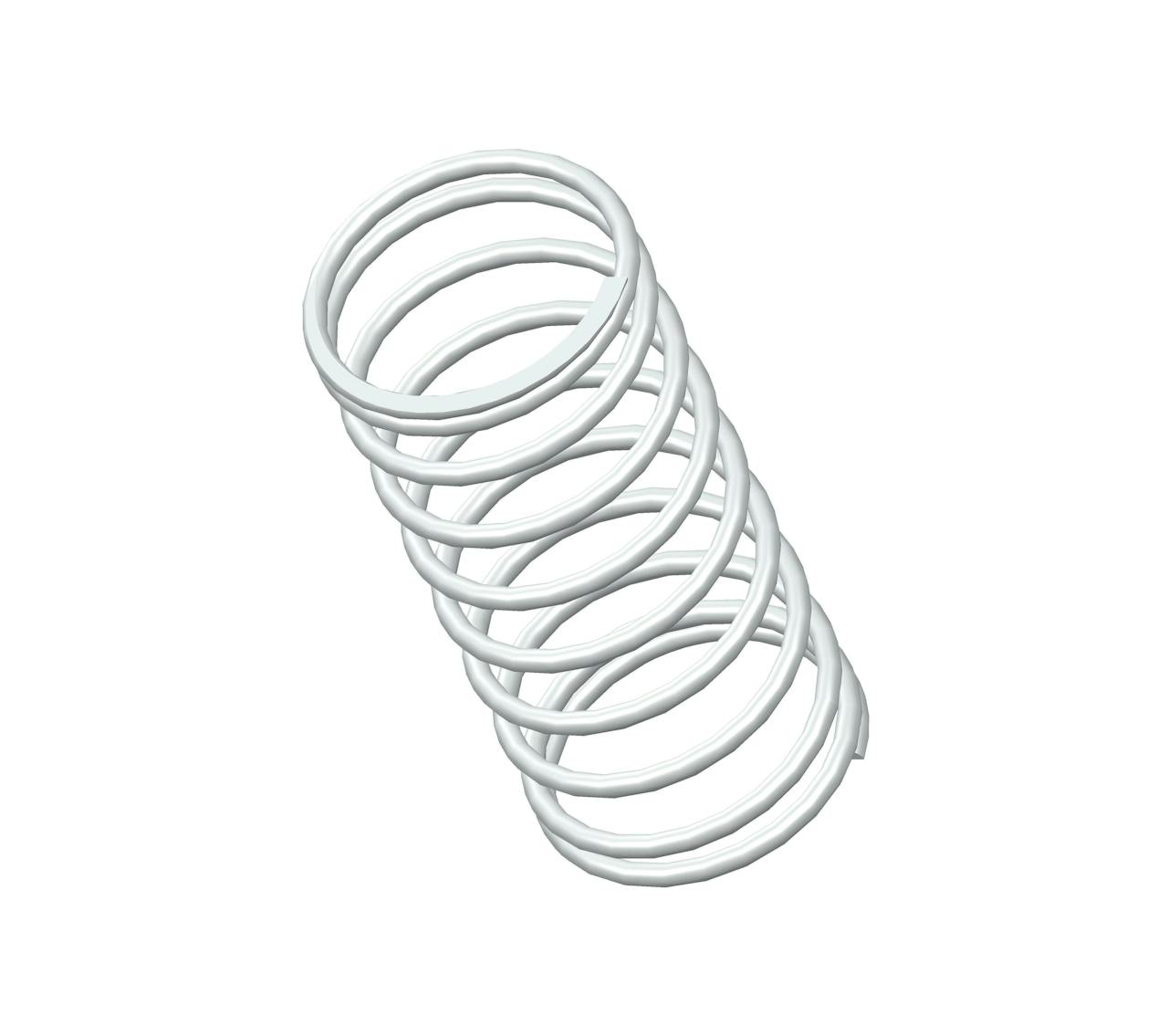

S-379CS - 4.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 1.921", and an I.D. of 1.651".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-379
Ends Closed & Ground
Finish None
Free Length 4.25 in
Inside Diameter 1.651 in
Material 302/304 Stainless Steel
Outside Diameter 1.921 in
Part Type Standard
Rate 9.1 lbs/in
SKU S-379CS
Solid Length 1.35 in
Suggested Max Deflection 2.9 in
Suggested Max Load 26 lbf
Total Coils 10
Wire Diameter 0.135 in
The S-379CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.135" diameter 302/304 stainless steel, the S-379 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 26 lbf without succumbing to fatigue.

We manufacture the S-379 design to provide a compression spring that is 4.25" long at rest and provides a consistent rate of 9.1 lbs/in along its recommended maximum of 2.9" deflection. For best results, your application should fully accommodate the inner (1.651") and outer (1.921") diameters of this spring and be designed for its closed & ground end configuration.
