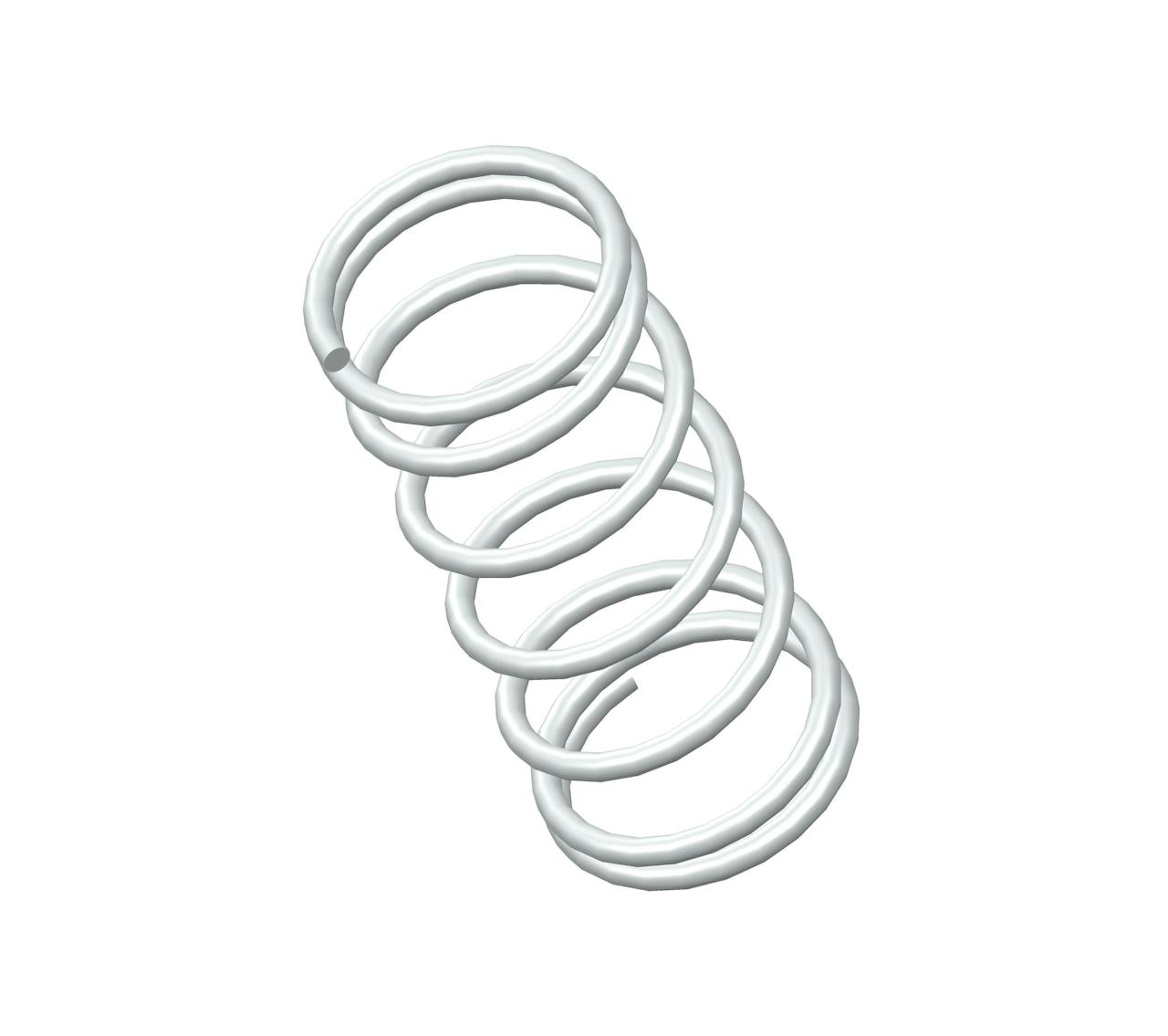

S-769CS - 1.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed ends. This spring features an O.D. of 0.625", and an I.D. of 0.515".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-769
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.515 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 12 lbs/in
SKU S-769CS
Solid Length 0.45 in
Suggested Max Deflection 0.77 in
Suggested Max Load 9 lbf
Total Coils 7.25
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-769
Ends Closed
Finish None
Free Length 38.1 mm
Inside Diameter 13.08 mm
Material 302/304 Stainless Steel
Outside Diameter 15.88 mm
Part Type Standard
Rate 2.1 N/mm
SKU S-769CS
Solid Length 11.43 mm
Suggested Max Deflection 19.56 mm
Suggested Max Load 40.03 N
Total Coils 7.25
Wire Diameter 1.4 mm
The S-769 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-769CS compression spring is designed with a free length of 1.25" total of 6.25 coils, and a rate of 15 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-769 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
