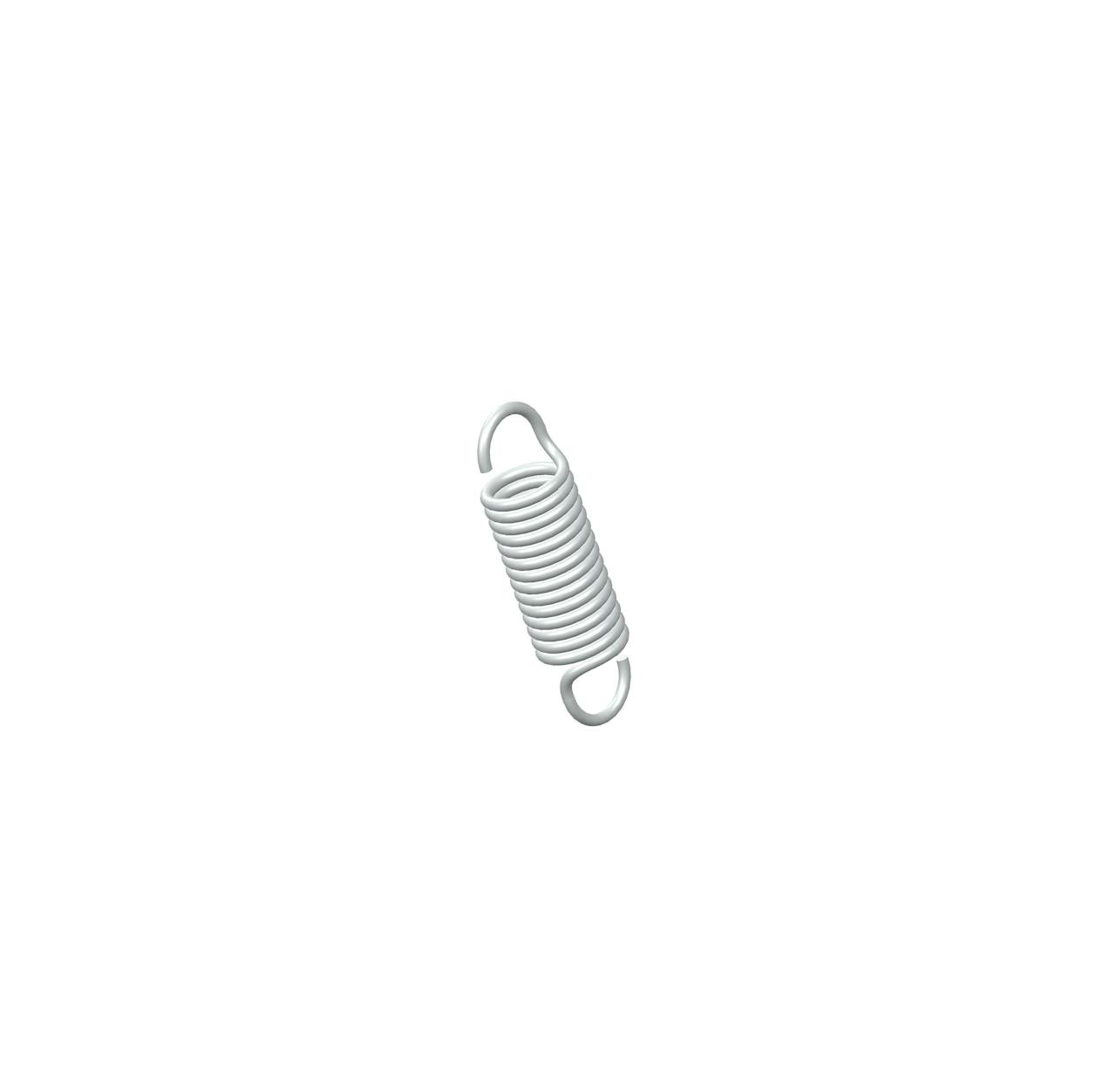

S-629CS - 0.91 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.234 Inch and an initial tension of 1 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-629
Ends Machine Hook
Finish None
Initial Tension 1 lb
Length 0.91 in
Material 302/304 Stainless Steel
Outside Diameter 0.234 in
Part Type Standard
Rate 12 lbs/in
SKU S-629CS
Sugg Max Deflection 0.33 in
Sugg Max Load 5 lbf
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-629
Ends Machine Hook
Finish None
Initial Tension 0.45 kg
Length 23.11 mm
Material 302/304 Stainless Steel
Outside Diameter 5.94 mm
Part Type Standard
Rate 2.1 N/mm
SKU S-629CS
Sugg Max Deflection 8.38 mm
Sugg Max Load 22.24 N
Wire Diameter 0.81 mm
