Century Spring

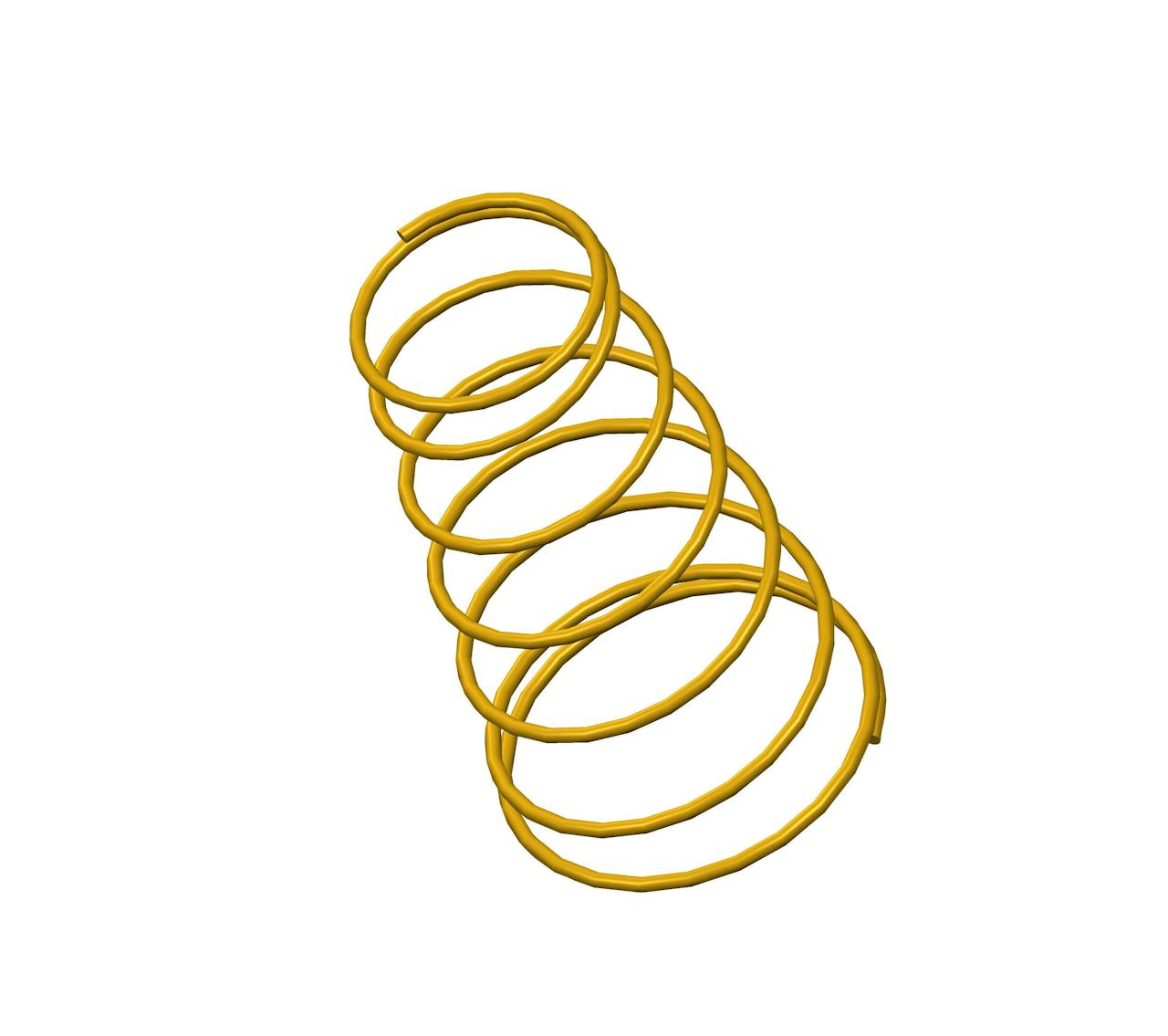

TA-2295CS - 1 Inch Height Phosphor Bronze Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in Phosphor Bronze with 7 total coils and Closed ends. The OD of this spring tapers from 0.375 Inch to 0.562 Inch. The spring has an I.D. of 0.331 Inch, and an average spring rate of 0.4 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 0.4 lbs/in
Brand Century Spring
Display Name TA-2295
Ends Closed
Finish None
Free Length 1 in
Inside Diameter 0.331 in
Large Outside Diameter 0.562 in
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 0.375 in
SKU TA-2295CS
Small Outside Diameter 0.375 in
Solid Height 0.07 in
Total Coils 7
Wind Direction Left
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Average Rate 0.07 N/mm
Brand Century Spring
Display Name TA-2295
Ends Closed
Finish None
Free Length 25.4 mm
Inside Diameter 8.41 mm
Large Outside Diameter 14.27 mm
Material Phosphor Bronze
Measurement Units Standard
Outside Diameter 9.53 mm
SKU TA-2295CS
Small Outside Diameter 9.53 mm
Solid Height 1.78 mm
Total Coils 7
Wind Direction Left
Wire Diameter 0.56 mm
