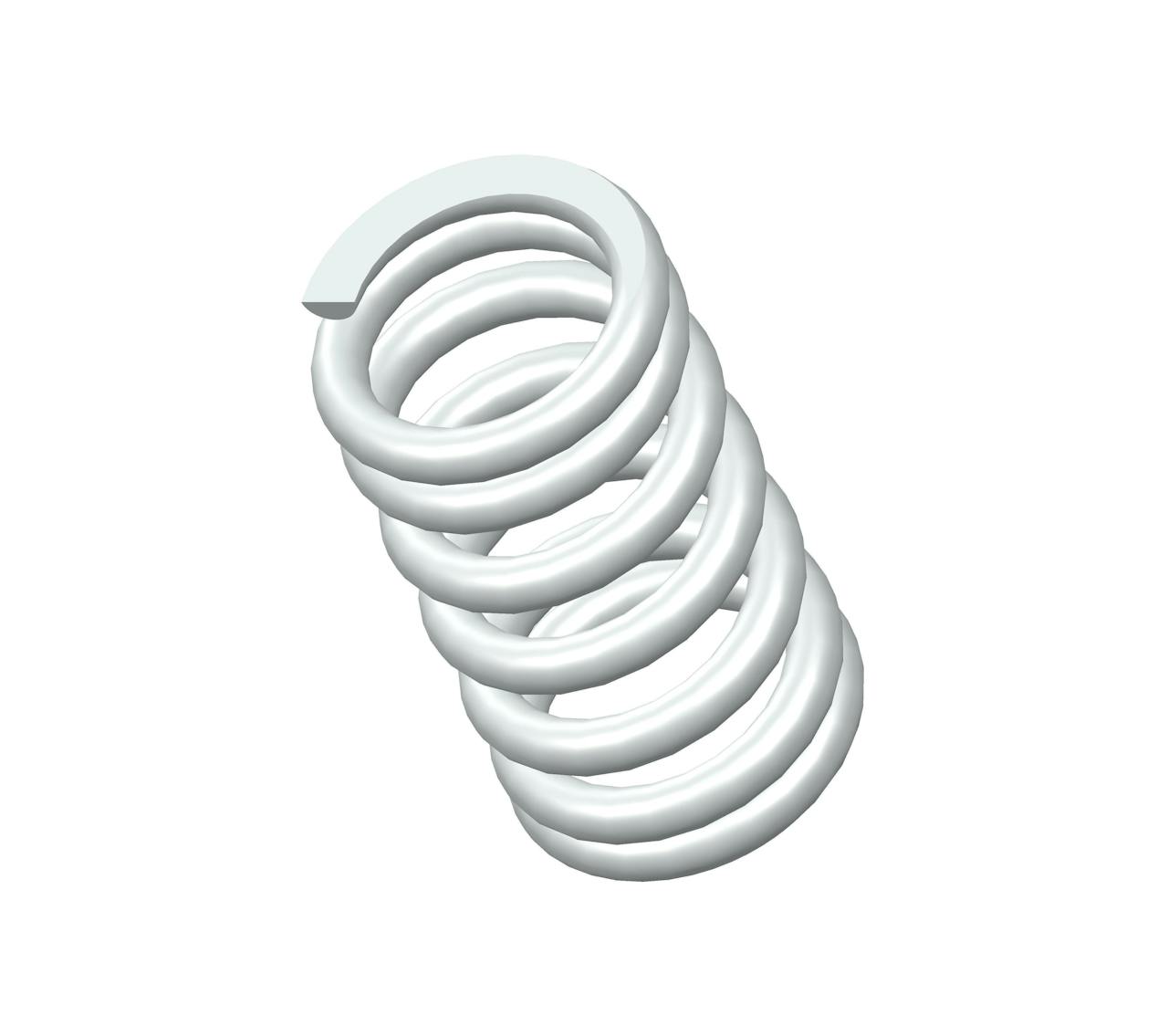

S-470CS - 1.78" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.984", and an I.D. of 0.688".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-470 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.78 in |
| Inside Diameter | 0.688 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.984 in |
| Part Type | Standard |
| Rate | 209 lbs/in |
| SKU | S-470CS |
| Solid Length | 1.04 in |
| Suggested Max Deflection | 0.42 in |
| Suggested Max Load | 89 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-470 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 45.21 mm |
| Inside Diameter | 17.48 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 24.99 mm |
| Part Type | Standard |
| Rate | 36.6 N/mm |
| SKU | S-470CS |
| Solid Length | 26.42 mm |
| Suggested Max Deflection | 10.67 mm |
| Suggested Max Load | 395.87 N |
| Total Coils | 7 |
| Wire Diameter | 3.76 mm |
The S-470CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter 302/304 stainless steel, the S-470 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 89 lbf without succumbing to fatigue.
We manufacture the S-470 design to provide a compression spring that is 1.78" long at rest and provides a consistent rate of 209 lbs/in along its recommended maximum of 0.42" deflection. For best results, your application should fully accommodate the inner (0.688") and outer (0.984") diameters of this spring and be designed for its closed & ground end configuration.
