Century Spring

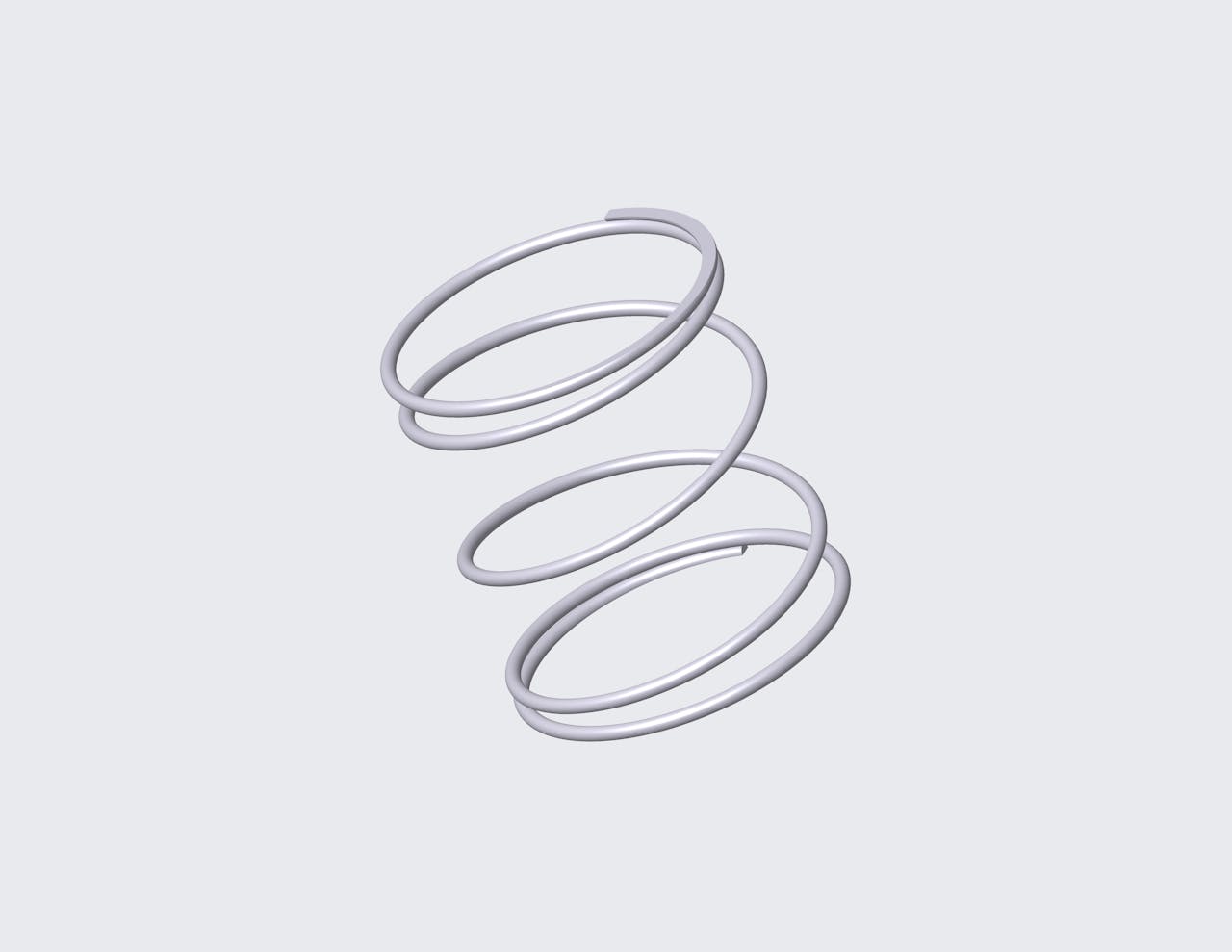

67879SCS - 0.56" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.5", and an I.D. of 0.456".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67879S
Ends Closed
Finish Passivated
Free Length 0.56 in
Inside Diameter 0.456 in
Material 316 Stainless Steel
Outside Diameter 0.5 in
Part Type Standard
Rate 0.894 lbs/in
SKU 67879SCS
Solid Length 0.132 in
Suggested Max Deflection 0.428 in
Suggested Max Load 0.383 lbf
Total Coils 5
Wire Diameter 0.022 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67879S
Ends Closed
Finish Passivated
Free Length 14.22 mm
Inside Diameter 11.58 mm
Material 316 Stainless Steel
Outside Diameter 12.7 mm
Part Type Standard
Rate 0.16 N/mm
SKU 67879SCS
Solid Length 3.35 mm
Suggested Max Deflection 10.87 mm
Suggested Max Load 1.7 N
Total Coils 5
Wire Diameter 0.56 mm
The 67879S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 67879SCS compression spring is designed with a free length of 0.53" total of 5 coils, and a rate of 0.603 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 67879S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
