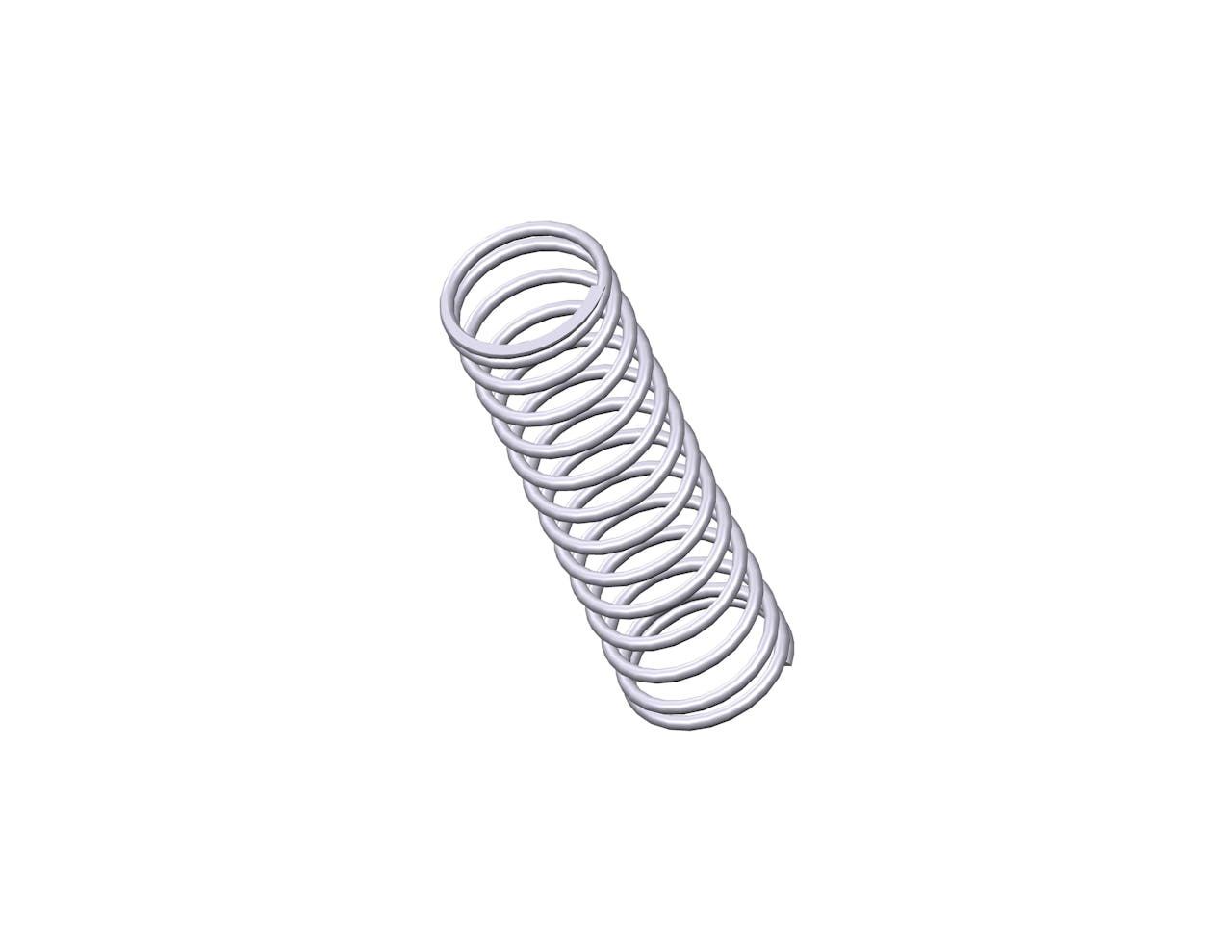

S-467CS - 5.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 14 coils and closed & ground ends. This spring features an O.D. of 1.5", and an I.D. of 1.25".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-467 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5.13 in |
| Inside Diameter | 1.25 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.5 in |
| Part Type | Standard |
| Rate | 9.8 lbs/in |
| SKU | S-467CS |
| Solid Length | 1.75 in |
| Suggested Max Deflection | 3.4 in |
| Suggested Max Load | 33 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-467 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 130.3 mm |
| Inside Diameter | 31.75 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 38.1 mm |
| Part Type | Standard |
| Rate | 1.72 N/mm |
| SKU | S-467CS |
| Solid Length | 44.45 mm |
| Suggested Max Deflection | 86.36 mm |
| Suggested Max Load | 146.78 N |
| Total Coils | 14 |
| Wire Diameter | 3.18 mm |
The S-467 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-467CS compression spring is designed with a free length of 2.5" total of 6.33 coils, and a rate of 59 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-467 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-467CS compression spring is designed with a free length of 2.5" total of 6.33 coils, and a rate of 59 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-467 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
