Century Spring

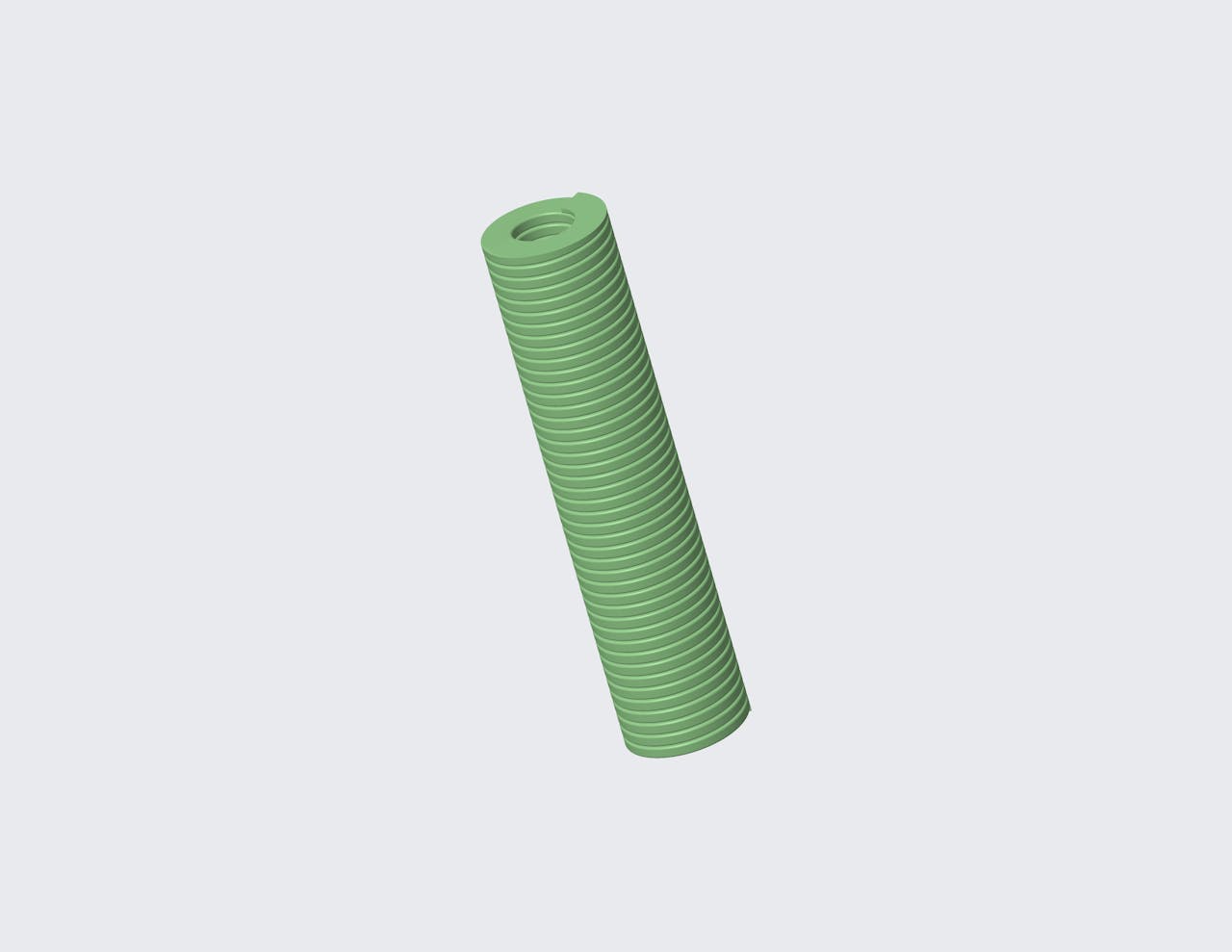

D-307624CS - 152 Millimeter Ultra Strong Duty Metric Die Spring

Inventory Status
Estimated Lead Time

Metric die spring with Powder Coat finish meant for Ultra Strong duty. This spring is 152 Millimeter long and has a 408 Newtons per Millimeter spring rate.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Deflection 1 0.5984 in
Deflection 2 0.8071 in
Deflection 3 0.8976 in
Display Name D-307624
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 5.9843 in
Hole Size 1.2598 in
Load 1 1394.3345 lbf
Load 2 1882.1942 lbf
Load 3 2091.277 lbf
Load At Max Deflection 3118.705 lbf
Material Chrome Silicon
Max Deflection 1.3386 in
Measurement Units Metric
Rate 2330.0971 lbs/in
Rod Size 0.6299 in
SKU D-307624CS
Specs (in metric)
Label Value
Brand Century Spring
Deflection 1 15.2 mm
Deflection 2 20.5 mm
Deflection 3 22.8 mm
Display Name D-307624
Duty Load Ultra Strong
Finish Powder Coat
Finish Color Gray
Free Length 152 mm
Hole Size 32 mm
Load 1 6202 N
Load 2 8372 N
Load 3 9302 N
Load At Max Deflection 13872 N
Material Chrome Silicon
Max Deflection 34 mm
Measurement Units Metric
Rate 408 N/mm
Rod Size 16 mm
SKU D-307624CS
