S-416CS - 0.78" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

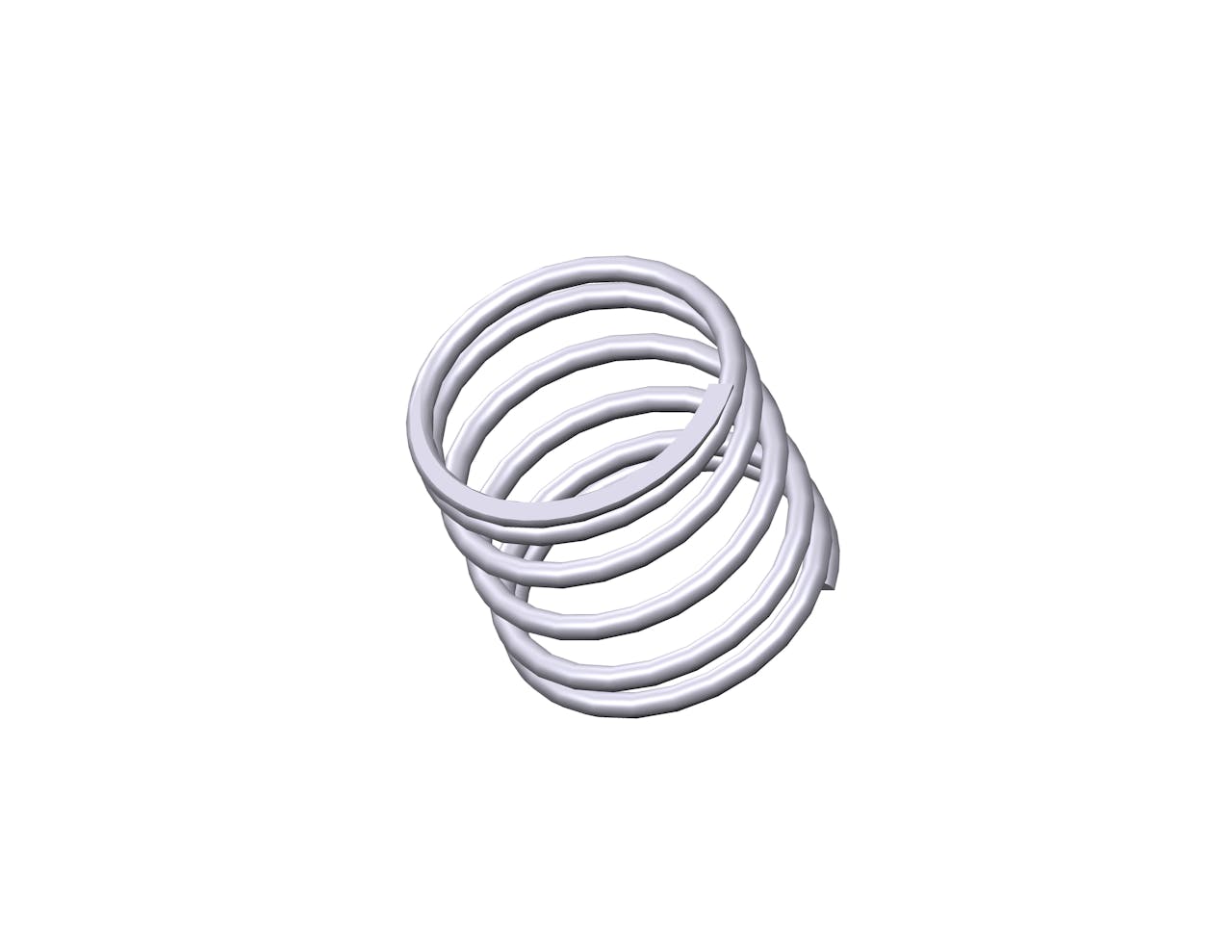

Compression spring manufactured from 302/304 stainless steel with 6.3 coils and closed & ground ends. This spring features an O.D. of 0.828", and an I.D. of 0.704".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-416
Ends Closed & Ground
Finish None
Free Length 0.78 in
Inside Diameter 0.704 in
Material 302/304 Stainless Steel
Outside Diameter 0.828 in
Part Type Standard
Rate 10 lbs/in
SKU S-416CS
Solid Length 0.391 in
Suggested Max Deflection 0.392 in
Suggested Max Load 3.9 lbf
Total Coils 6.3
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-416
Ends Closed & Ground
Finish None
Free Length 19.81 mm
Inside Diameter 17.88 mm
Material 302/304 Stainless Steel
Outside Diameter 21.03 mm
Part Type Standard
Rate 1.75 N/mm
SKU S-416CS
Solid Length 9.93 mm
Suggested Max Deflection 9.96 mm
Suggested Max Load 17.35 N
Total Coils 6.3
Wire Diameter 1.59 mm
The S-416CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 302/304 stainless steel, the S-416 spring design exhibits reliable strength across its 6.3 active coils, withstanding repeated compression cycles with a maximum load of 3.9 lbf without succumbing to fatigue.

We manufacture the S-416 design to provide a compression spring that is 0.78" long at rest and provides a consistent rate of 10 lbs/in along its recommended maximum of 0.392" deflection. For best results, your application should fully accommodate the inner (0.704") and outer (0.828") diameters of this spring and be designed for its closed & ground end configuration.
