Century Spring

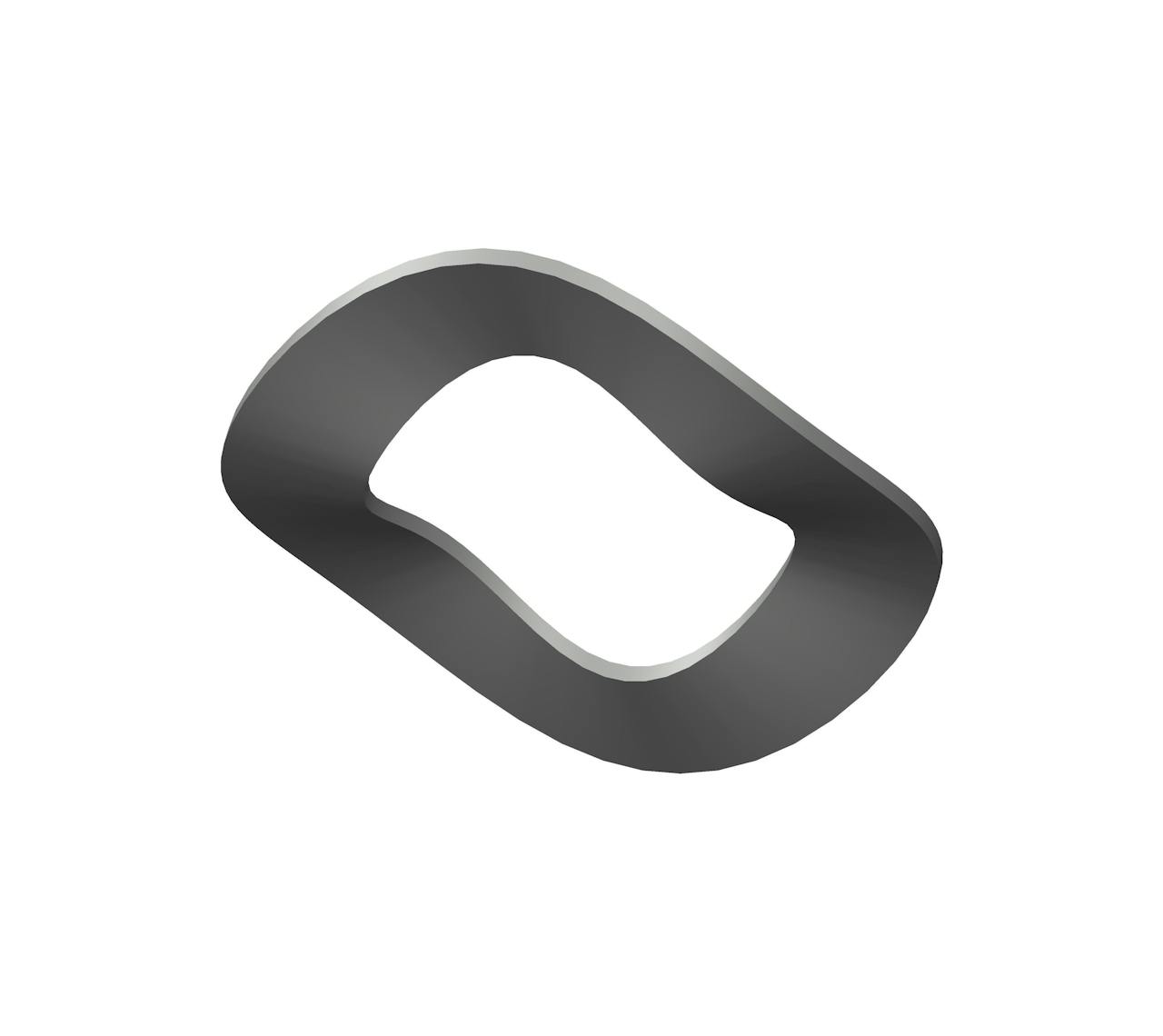

WAV-24801CS - 0.221 Inch ID 0.374 Inch OD Wave Disc Spring

Inventory Status
Estimated Lead Time

Wave disc spring manufactured from Spring Steel with an inside diameter of 0.221 Inch and an outside diameter of 0.374 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 20.7 lb
Display Name WAV-24801
Finish None
Inside Diameter 0.221 in
Material Spring Steel
Maximum Deflection at 100% Height 0.006 in
Measurement Units Standard
Number of Waves 3
Outside Diameter 0.374 in
Outside Height 0.05 in
SKU WAV-24801CS
T 0.01 in
Specs (in metric)
Label Value
Brand Century Spring
Calculated Load at Approximate Deflection 9.39 kg
Display Name WAV-24801
Finish None
Inside Diameter 5.61 mm
Material Spring Steel
Maximum Deflection at 100% Height 0.15 mm
Measurement Units Standard
Number of Waves 3
Outside Diameter 9.5 mm
Outside Height 1.27 mm
SKU WAV-24801CS
T 0.25 mm
