Century Spring

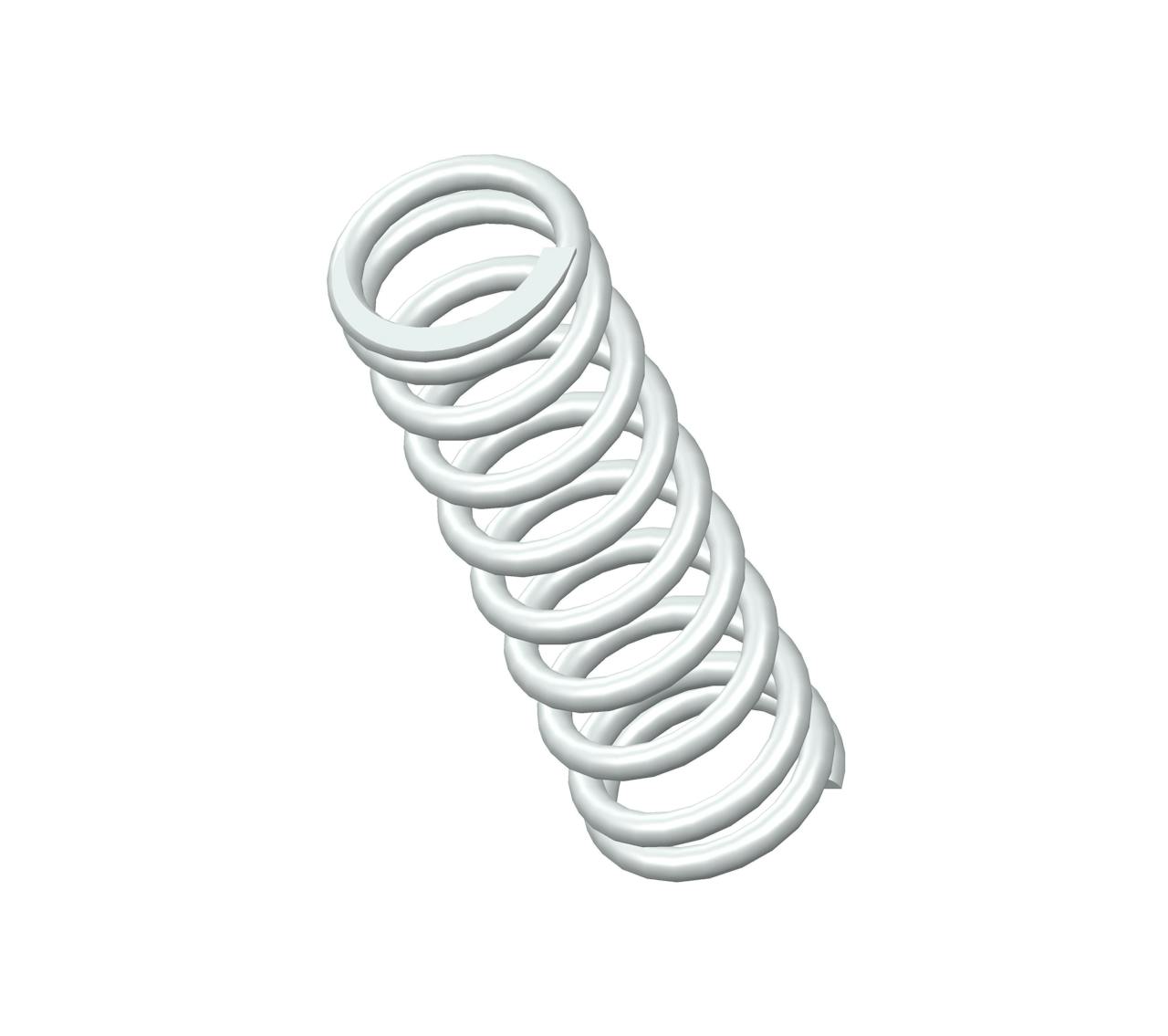

S-359CS - 5.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 1.593", and an I.D. of 1.179".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-359
Ends Closed & Ground
Finish None
Free Length 5.13 in
Inside Diameter 1.179 in
Material 302/304 Stainless Steel
Outside Diameter 1.593 in
Part Type Standard
Rate 108 lbs/in
SKU S-359CS
Solid Length 2.07 in
Suggested Max Deflection 1.3 in
Suggested Max Load 135 lbf
Total Coils 10
Wire Diameter 0.207 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-359
Ends Closed & Ground
Finish None
Free Length 130.3 mm
Inside Diameter 29.95 mm
Material 302/304 Stainless Steel
Outside Diameter 40.46 mm
Part Type Standard
Rate 18.91 N/mm
SKU S-359CS
Solid Length 52.58 mm
Suggested Max Deflection 33.02 mm
Suggested Max Load 600.48 N
Total Coils 10
Wire Diameter 5.26 mm
The S-359CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.207" diameter 302/304 stainless steel, the S-359 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 135 lbf without succumbing to fatigue.

We manufacture the S-359 design to provide a compression spring that is 5.13" long at rest and provides a consistent rate of 108 lbs/in along its recommended maximum of 1.3" deflection. For best results, your application should fully accommodate the inner (1.179") and outer (1.593") diameters of this spring and be designed for its closed & ground end configuration.
