Century Spring

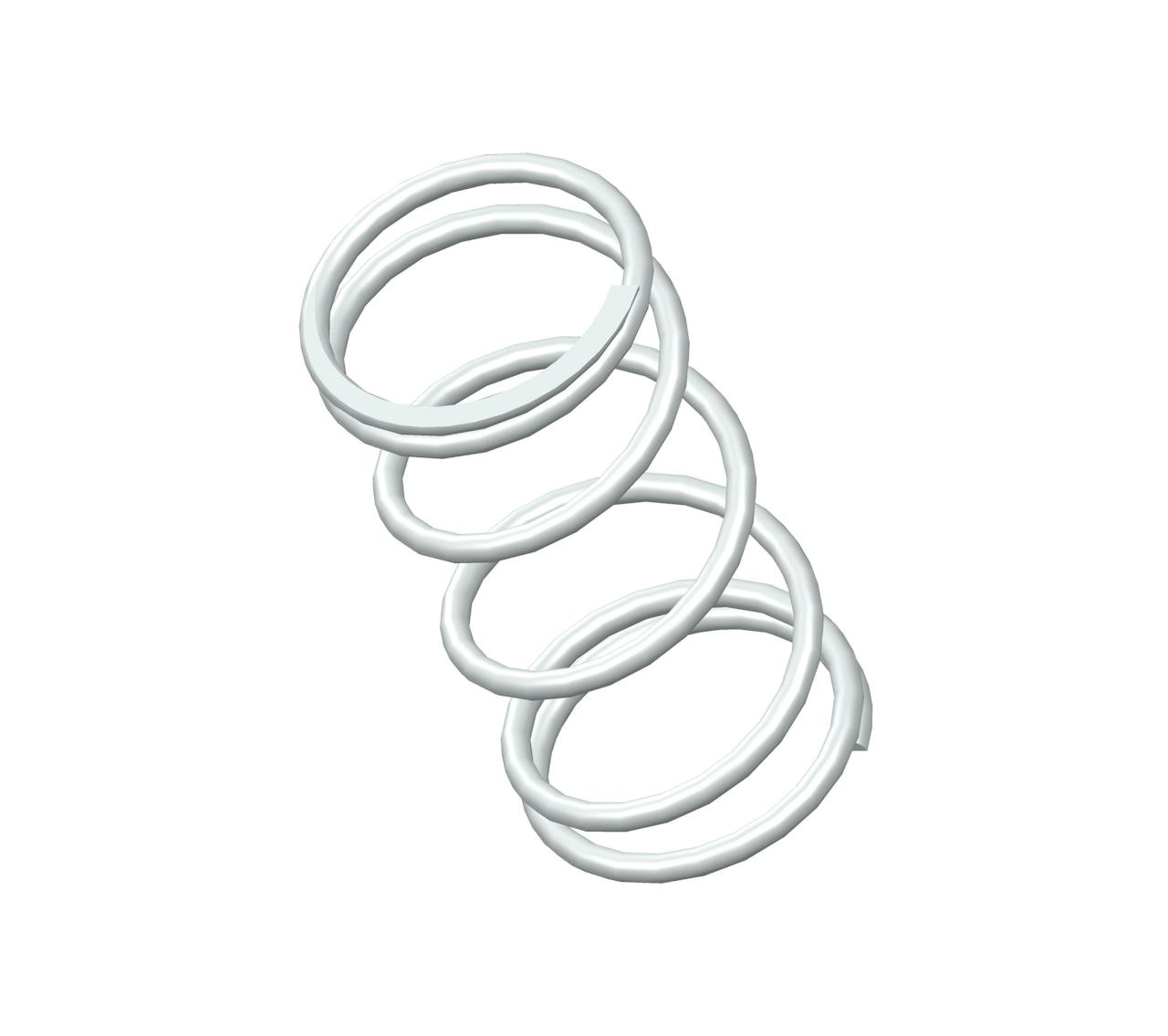

B14-53CS - 1.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.734", and an I.D. of 0.614".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name B14-53
Ends Closed & Ground
Finish None
Free Length 1.5 in
Inside Diameter 0.614 in
Material 302/304 Stainless Steel
Outside Diameter 0.734 in
Part Type Standard
Rate 13 lbs/in
SKU B14-53CS
Solid Length 0.36 in
Suggested Max Deflection 0.74 in
Suggested Max Load 10 lbf
Total Coils 6
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name B14-53
Ends Closed & Ground
Finish None
Free Length 38.1 mm
Inside Diameter 15.6 mm
Material 302/304 Stainless Steel
Outside Diameter 18.64 mm
Part Type Standard
Rate 2.28 N/mm
SKU B14-53CS
Solid Length 9.14 mm
Suggested Max Deflection 18.8 mm
Suggested Max Load 44.48 N
Total Coils 6
Wire Diameter 1.52 mm
The B14-53 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The B14-53CS compression spring is designed with a free length of 0.88" total of 5.5 coils, and a rate of 13 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The B14-53 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
