Century Spring

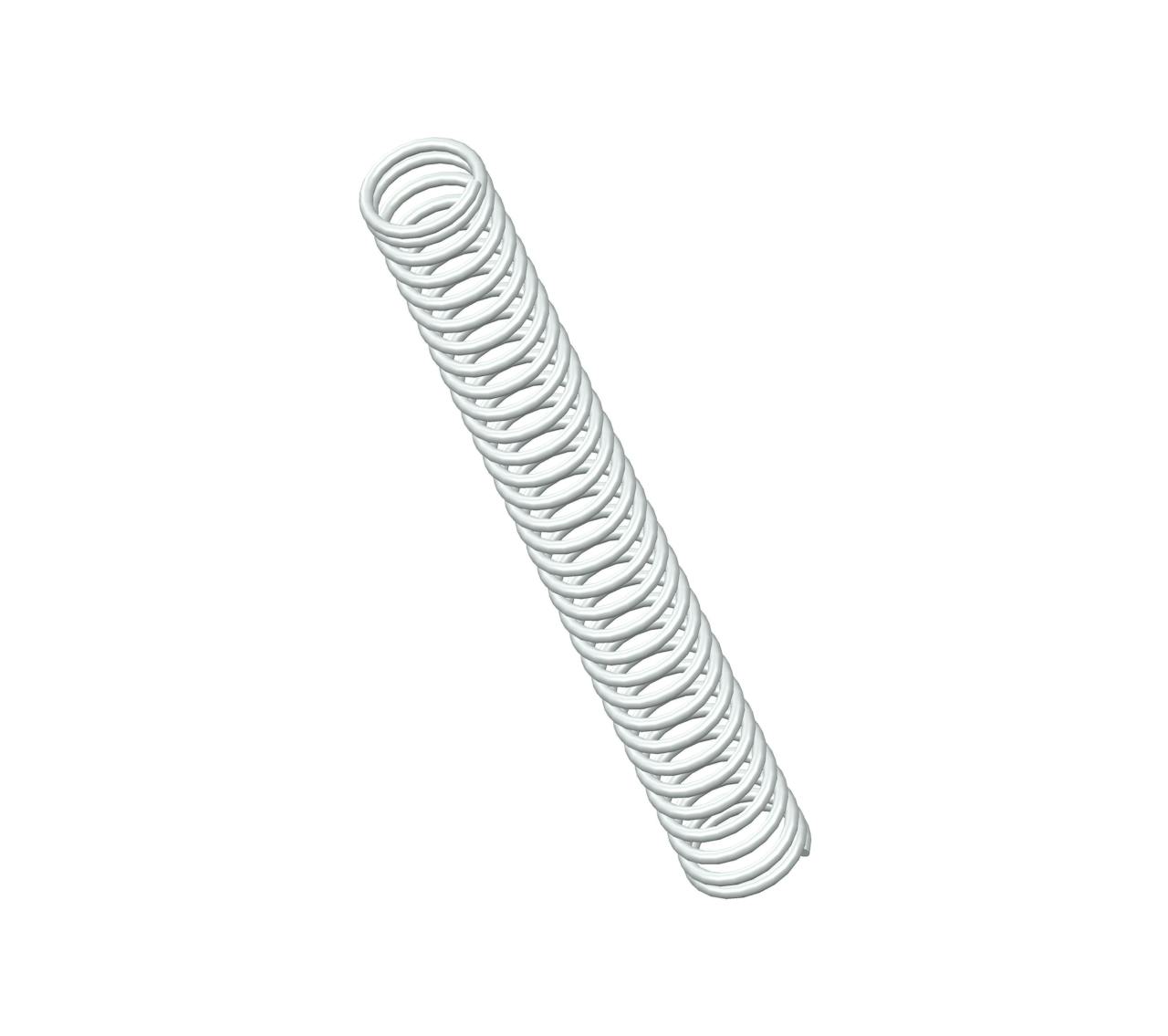

S-3041CS - 4.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 32 coils and closed ends. This spring features an O.D. of 0.578", and an I.D. of 0.454".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3041
Ends Closed
Finish None
Free Length 4.75 in
Inside Diameter 0.454 in
Material 302/304 Stainless Steel
Outside Diameter 0.578 in
Part Type Standard
Rate 4.6 lbs/in
SKU S-3041CS
Solid Length 2.079 in
Suggested Max Deflection 2.671 in
Suggested Max Load 12.3 lbf
Total Coils 32
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3041
Ends Closed
Finish None
Free Length 120.65 mm
Inside Diameter 11.53 mm
Material 302/304 Stainless Steel
Outside Diameter 14.68 mm
Part Type Standard
Rate 0.81 N/mm
SKU S-3041CS
Solid Length 52.81 mm
Suggested Max Deflection 67.84 mm
Suggested Max Load 54.71 N
Total Coils 32
Wire Diameter 1.59 mm
The S-3041CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 302/304 stainless steel, the S-3041 spring design exhibits reliable strength across its 32 active coils, withstanding repeated compression cycles with a maximum load of 12.3 lbf without succumbing to fatigue.

We manufacture the S-3041 design to provide a compression spring that is 4.75" long at rest and provides a consistent rate of 4.6 lbs/in along its recommended maximum of 2.671" deflection. For best results, your application should fully accommodate the inner (0.454") and outer (0.578") diameters of this spring and be designed for its closed end configuration.
