Century Spring

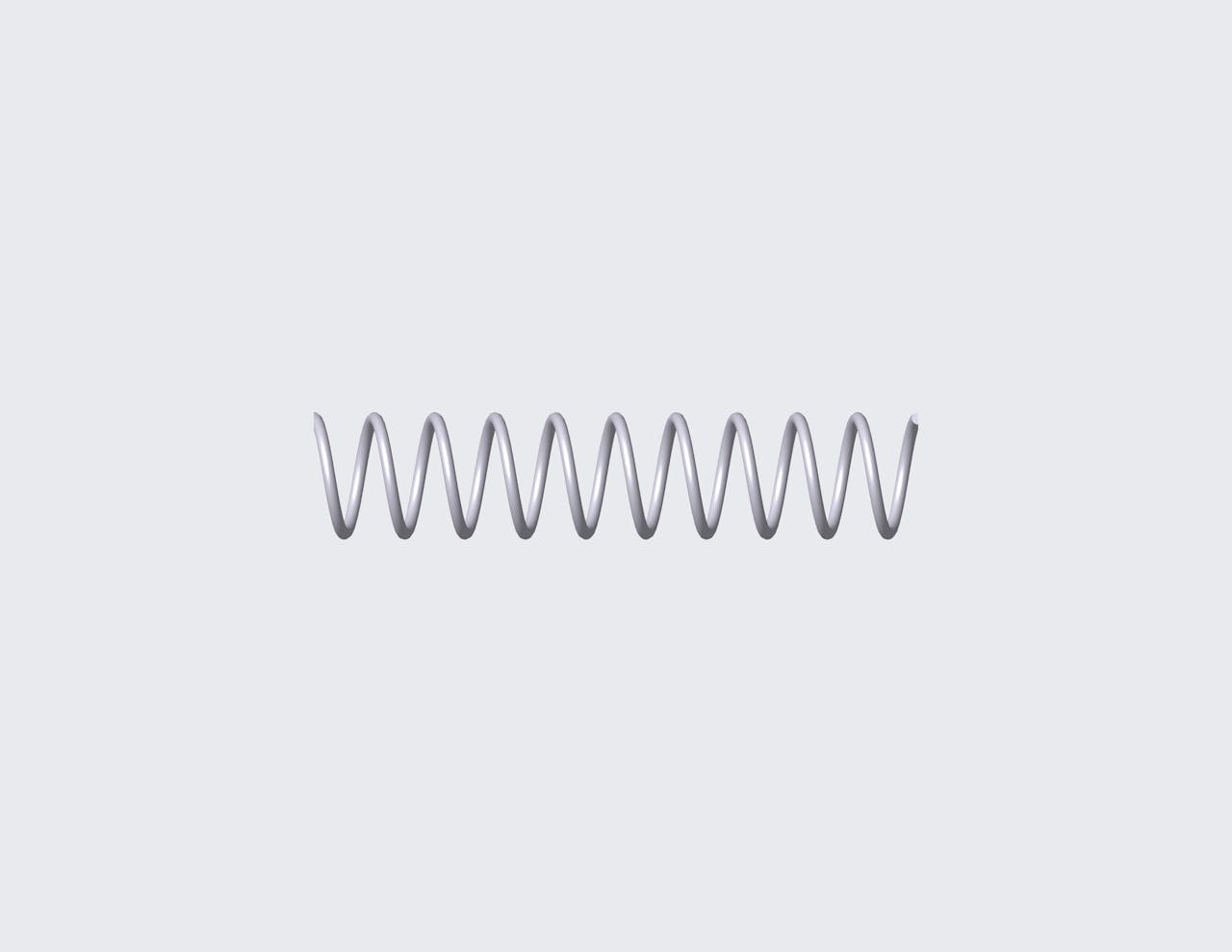

66067SCS - 0.5" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 18 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.066".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 66067S
Ends Closed
Finish Passivated
Free Length 0.5 in
Inside Diameter 0.066 in
Material 316 Stainless Steel
Outside Diameter 0.094 in
Part Type Standard
Rate 5.862 lbs/in
SKU 66067SCS
Solid Length 0.266 in
Suggested Max Deflection 0.152 in
Suggested Max Load 0.891 lbf
Total Coils 18
Wire Diameter 0.014 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 66067S
Ends Closed
Finish Passivated
Free Length 12.7 mm
Inside Diameter 1.68 mm
Material 316 Stainless Steel
Outside Diameter 2.39 mm
Part Type Standard
Rate 1.03 N/mm
SKU 66067SCS
Solid Length 6.76 mm
Suggested Max Deflection 3.86 mm
Suggested Max Load 3.96 N
Total Coils 18
Wire Diameter 0.36 mm
The compression spring 66067SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 66067S compression spring design exhibits exceptional tensile strength and resilience.

The 66067S design is manufactured with a free length of 0.5", with an outer diameter of 0.094", an inner diameter of 0.066", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.862 lbs/in.

The 66067SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 66067S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
