Century Spring

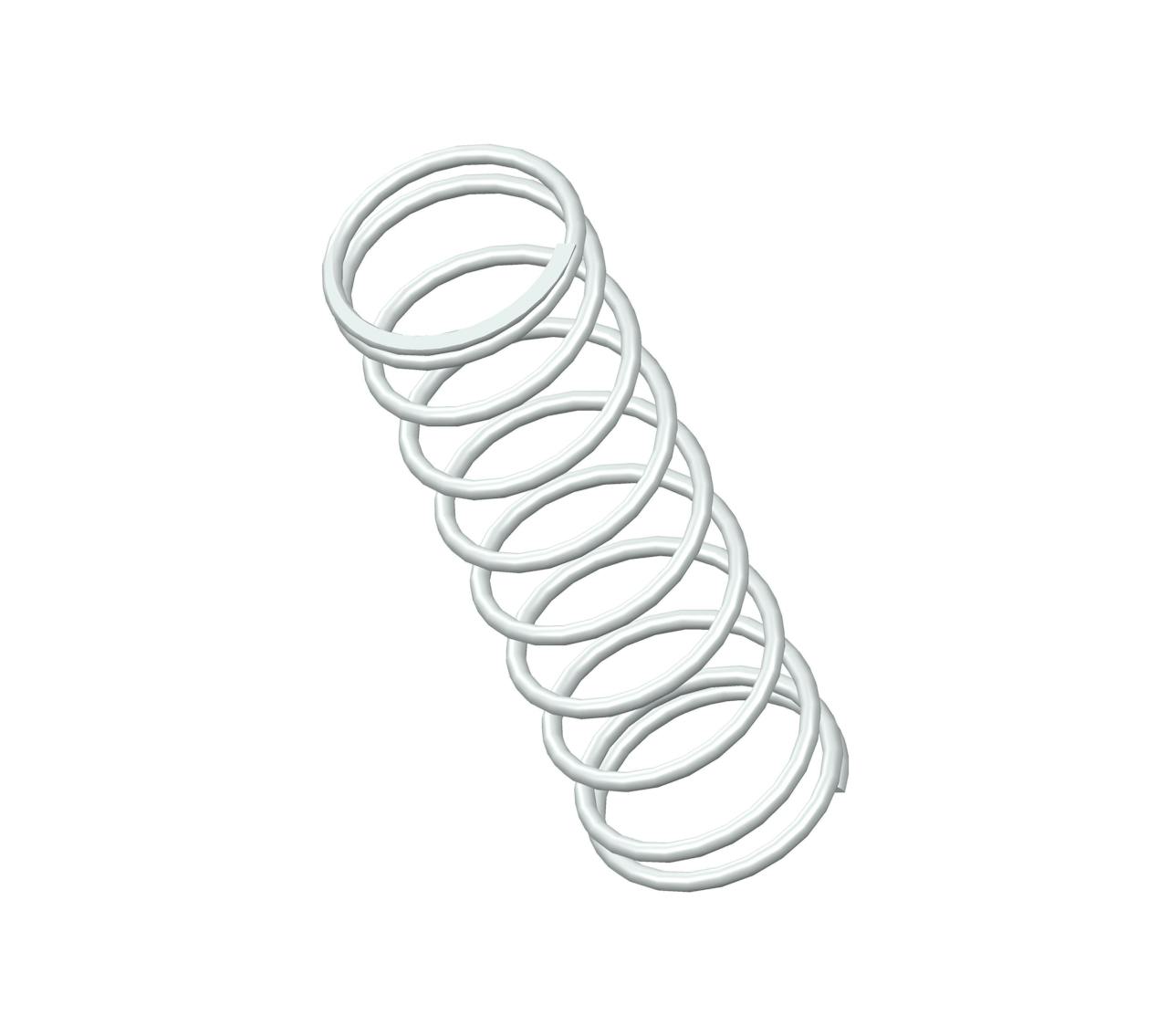

S-223CS - 1.56" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.412".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-223
Ends Closed & Ground
Finish None
Free Length 1.56 in
Inside Diameter 0.412 in
Material 302/304 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 2.9 lbs/in
SKU S-223CS
Solid Length 0.36 in
Suggested Max Deflection 1.2 in
Suggested Max Load 3.5 lbf
Total Coils 10
Wire Diameter 0.036 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-223
Ends Closed & Ground
Finish None
Free Length 39.62 mm
Inside Diameter 10.46 mm
Material 302/304 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 0.51 N/mm
SKU S-223CS
Solid Length 9.14 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 15.57 N
Total Coils 10
Wire Diameter 0.91 mm
The S-223 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-223CS compression spring is designed with a free length of 1.5" total of 6 coils, and a rate of 1.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-223 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
