S-1358CS - 1.75" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

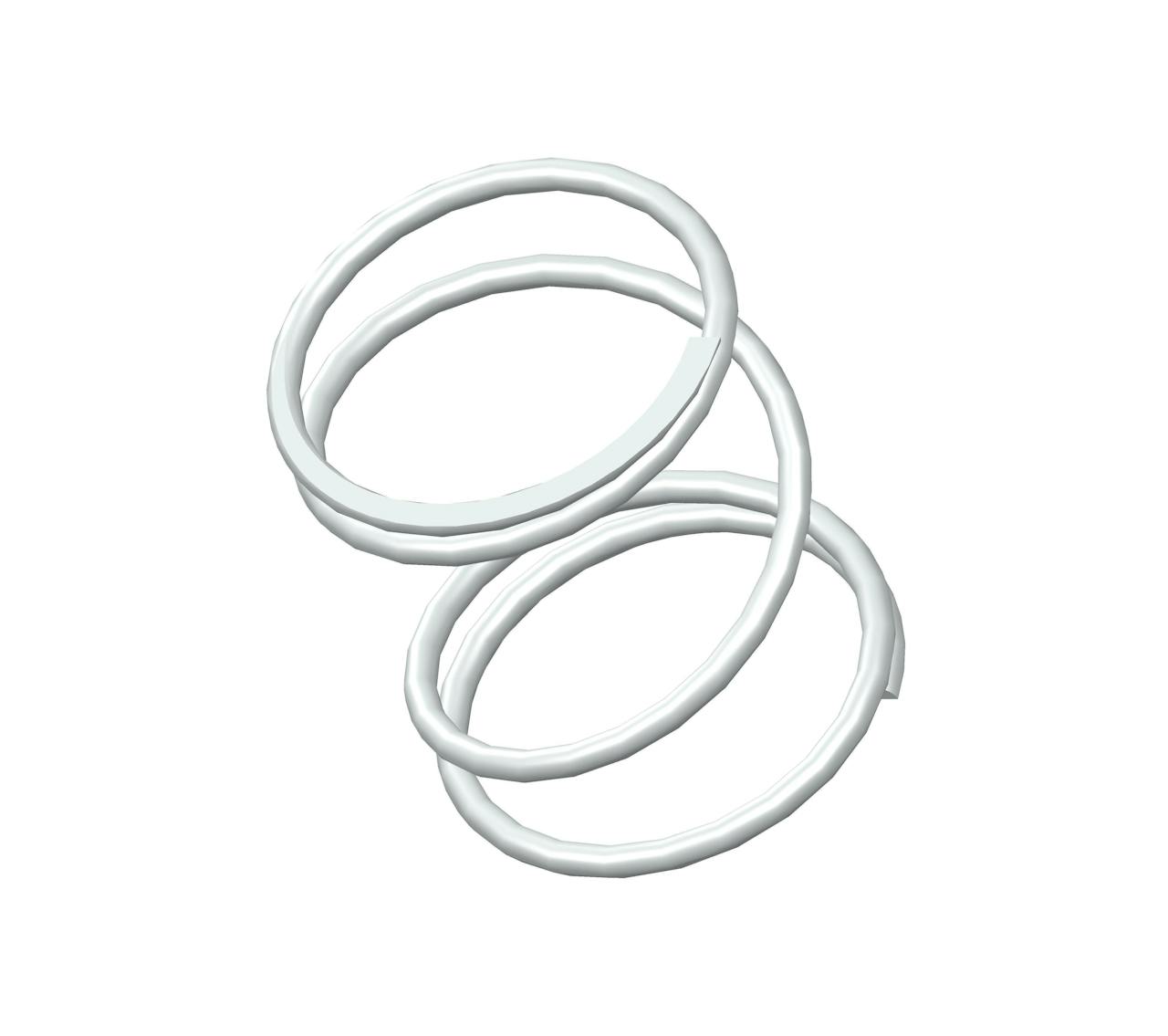

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 1.468", and an I.D. of 1.268".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1358
Ends Closed & Ground
Finish None
Free Length 1.75 in
Inside Diameter 1.268 in
Material 302/304 Stainless Steel
Outside Diameter 1.468 in
Part Type Standard
Rate 24 lbs/in
SKU S-1358CS
Solid Length 0.4 in
Suggested Max Deflection 0.86 in
Suggested Max Load 21 lbf
Total Coils 4
Wire Diameter 0.1 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1358
Ends Closed & Ground
Finish None
Free Length 44.45 mm
Inside Diameter 32.21 mm
Material 302/304 Stainless Steel
Outside Diameter 37.29 mm
Part Type Standard
Rate 4.2 N/mm
SKU S-1358CS
Solid Length 10.16 mm
Suggested Max Deflection 21.84 mm
Suggested Max Load 93.41 N
Total Coils 4
Wire Diameter 2.54 mm
The compression spring S-1358CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1358 compression spring design exhibits exceptional tensile strength and resilience.

The S-1358 design is manufactured with a free length of 1.75", with an outer diameter of 1.468", an inner diameter of 1.268", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 24 lbs/in.

The S-1358CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1358 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
