Century Spring

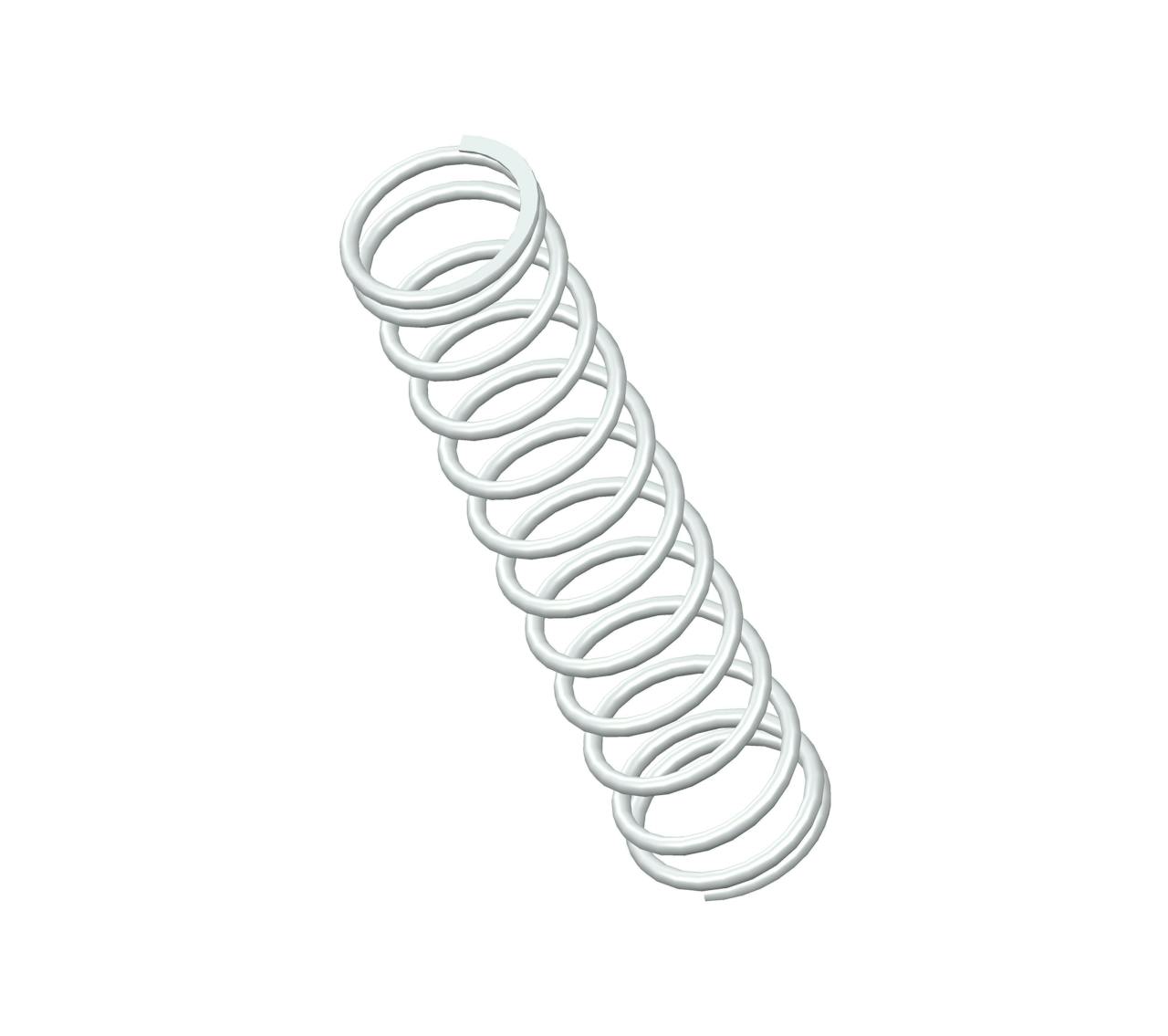

S-1658CS - 6" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 12.5 coils and closed & ground ends. This spring features an O.D. of 1.328", and an I.D. of 1.088".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1658
Ends Closed & Ground
Finish None
Free Length 6 in
Inside Diameter 1.088 in
Material 302/304 Stainless Steel
Outside Diameter 1.328 in
Part Type Standard
Rate 14 lbs/in
SKU S-1658CS
Solid Length 1.5 in
Suggested Max Deflection 2.7 in
Suggested Max Load 38 lbf
Total Coils 12.5
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1658
Ends Closed & Ground
Finish None
Free Length 152.4 mm
Inside Diameter 27.64 mm
Material 302/304 Stainless Steel
Outside Diameter 33.73 mm
Part Type Standard
Rate 2.45 N/mm
SKU S-1658CS
Solid Length 38.1 mm
Suggested Max Deflection 68.58 mm
Suggested Max Load 169.02 N
Total Coils 12.5
Wire Diameter 3.05 mm
The S-1658CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter 302/304 stainless steel, the S-1658 spring design exhibits reliable strength across its 12.5 active coils, withstanding repeated compression cycles with a maximum load of 38 lbf without succumbing to fatigue.

We manufacture the S-1658 design to provide a compression spring that is 6" long at rest and provides a consistent rate of 14 lbs/in along its recommended maximum of 2.7" deflection. For best results, your application should fully accommodate the inner (1.088") and outer (1.328") diameters of this spring and be designed for its closed & ground end configuration.
