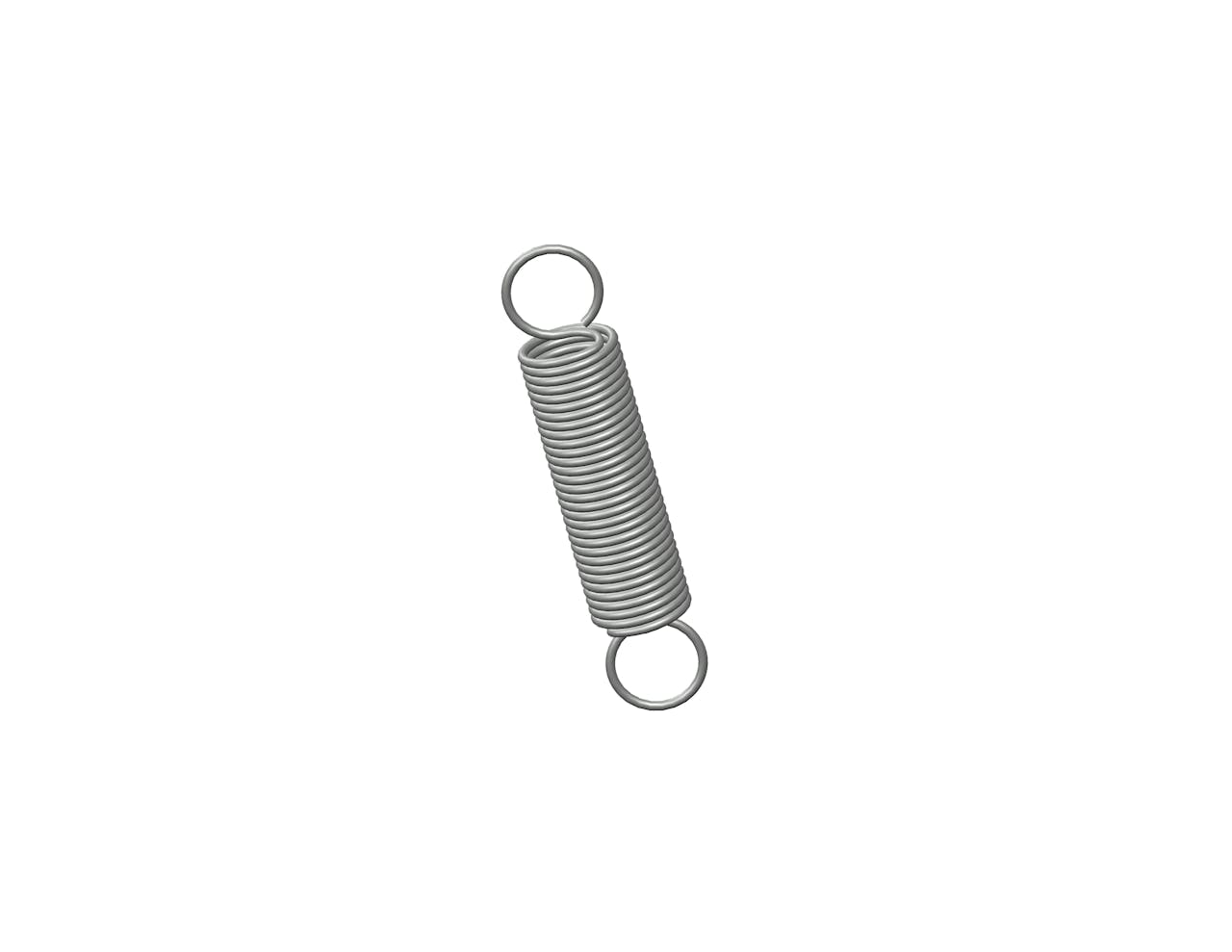

5011CS - 7.25 Inch Spring Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Spring Steel. This spring features an O.D. of 1.5 Inch and an initial tension of 9 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 5011
Ends Machine Hook
Finish Zinc
Initial Tension 9 lb
Length 7.25 in
Material Spring Steel
Outside Diameter 1.5 in
Part Type Standard
Rate 6.9 lbs/in
SKU 5011CS
Sugg Max Deflection 6.6 in
Sugg Max Load 54 lbf
Wire Diameter 0.142 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 5011
Ends Machine Hook
Finish Zinc
Initial Tension 4.08 kg
Length 184.15 mm
Material Spring Steel
Outside Diameter 38.1 mm
Part Type Standard
Rate 1.21 N/mm
SKU 5011CS
Sugg Max Deflection 167.64 mm
Sugg Max Load 240.19 N
Wire Diameter 3.61 mm
