Century Spring

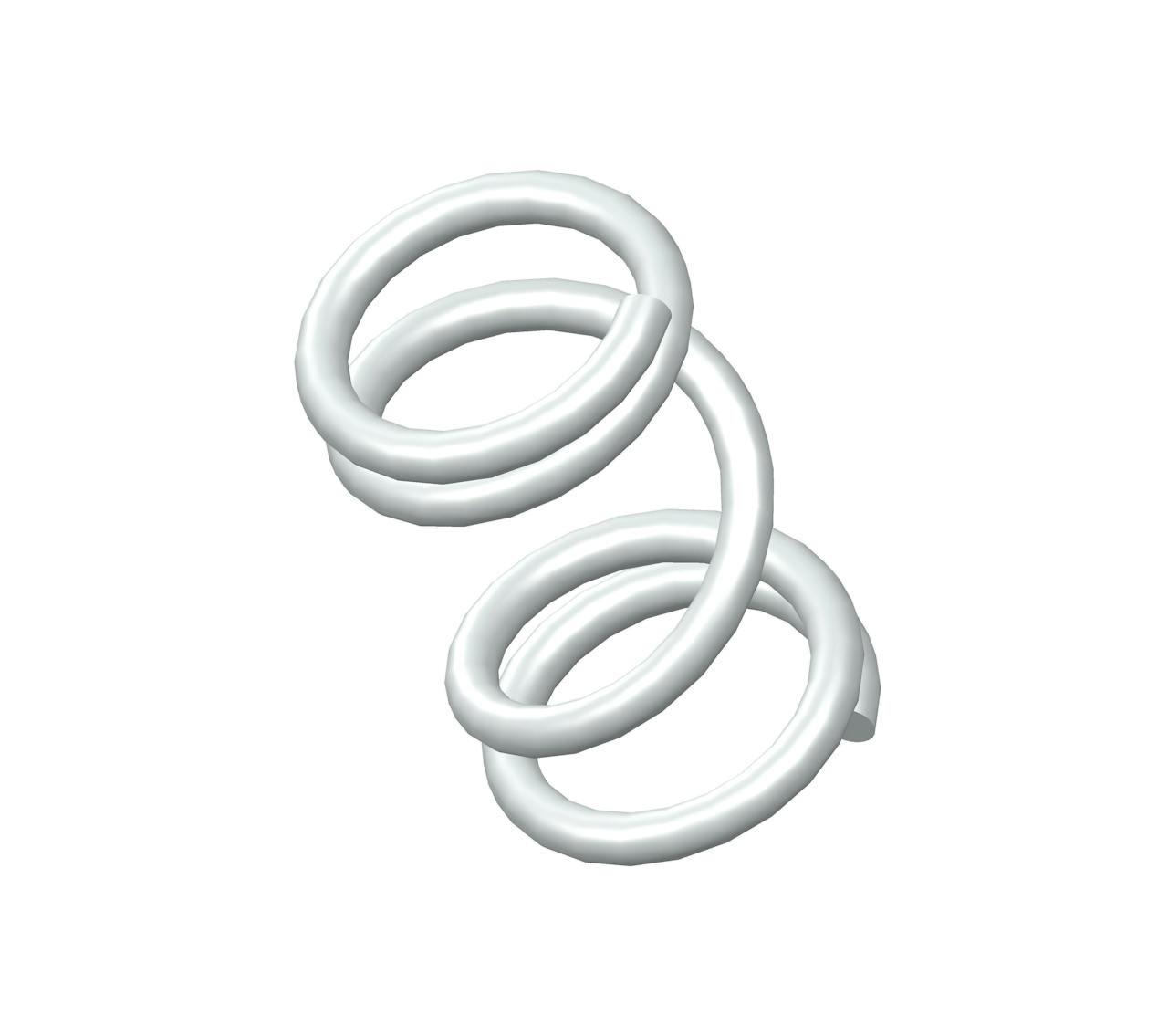

S-1484CS - 0.47" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 0.266", and an I.D. of 0.196".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1484
Ends Closed
Finish None
Free Length 0.47 in
Inside Diameter 0.196 in
Material 302/304 Stainless Steel
Outside Diameter 0.266 in
Part Type Standard
Rate 77 lbs/in
SKU S-1484CS
Solid Length 0.18 in
Suggested Max Deflection 0.07 in
Suggested Max Load 5.7 lbf
Total Coils 4
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1484
Ends Closed
Finish None
Free Length 11.94 mm
Inside Diameter 4.98 mm
Material 302/304 Stainless Steel
Outside Diameter 6.76 mm
Part Type Standard
Rate 13.48 N/mm
SKU S-1484CS
Solid Length 4.57 mm
Suggested Max Deflection 1.78 mm
Suggested Max Load 25.35 N
Total Coils 4
Wire Diameter 0.89 mm
The S-1484 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-1484CS compression spring is designed with a free length of 1.56" total of 8.5 coils, and a rate of 18 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-1484 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
