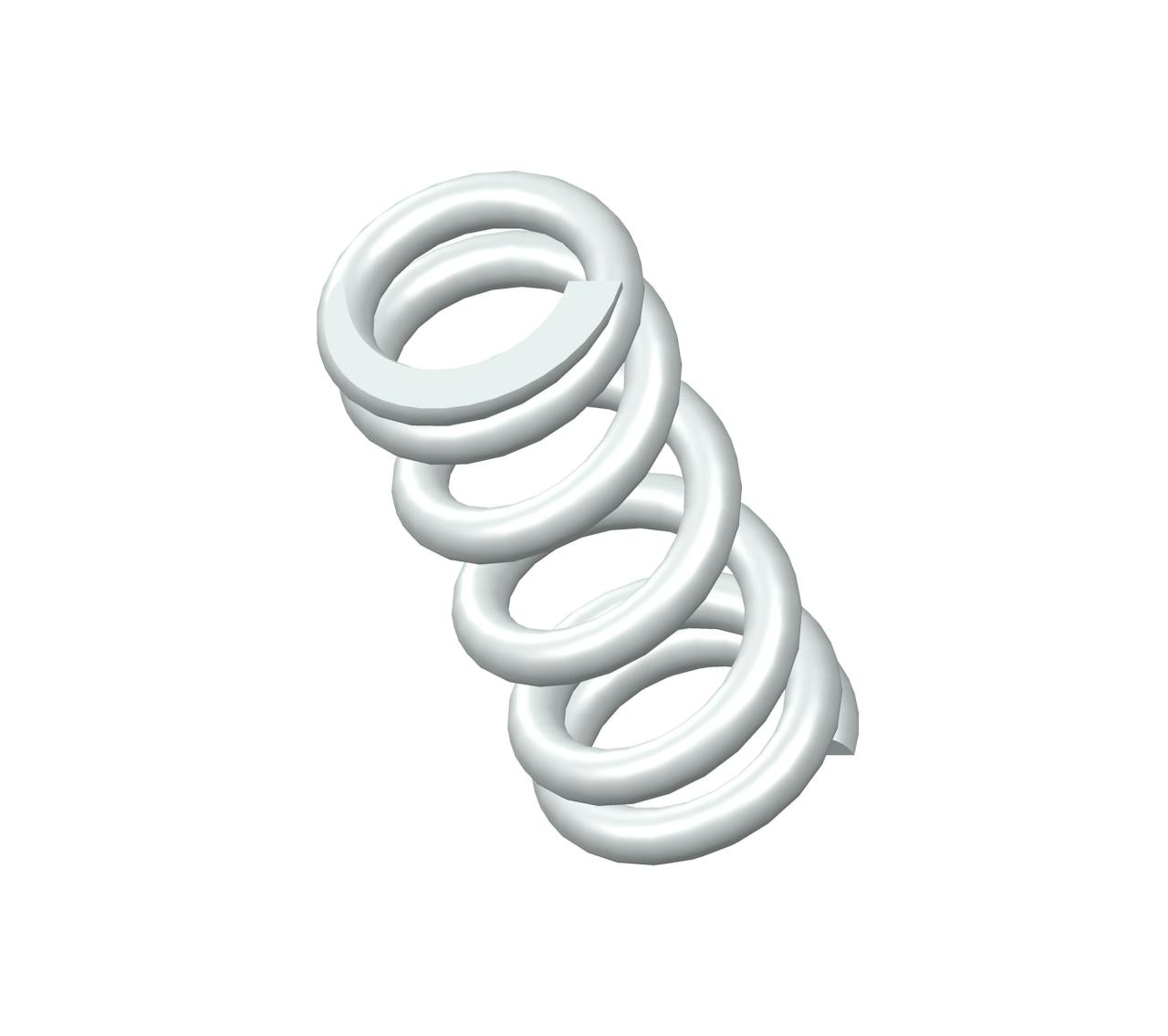

S-1402CS - 1.5" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.656", and an I.D. of 0.43".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1402 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.43 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.656 in |
| Part Type | Standard |
| Rate | 318 lbs/in |
| SKU | S-1402CS |
| Solid Length | 0.68 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 61 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.113 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1402 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 10.92 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.66 mm |
| Part Type | Standard |
| Rate | 55.68 N/mm |
| SKU | S-1402CS |
| Solid Length | 17.27 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 271.33 N |
| Total Coils | 6 |
| Wire Diameter | 2.87 mm |
The compression spring S-1402CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1402 compression spring design exhibits exceptional tensile strength and resilience.
The S-1402 design is manufactured with a free length of 1.5", with an outer diameter of 0.656", an inner diameter of 0.43", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 318 lbs/in.
The S-1402CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1402 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
