11598CS - 2.13" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

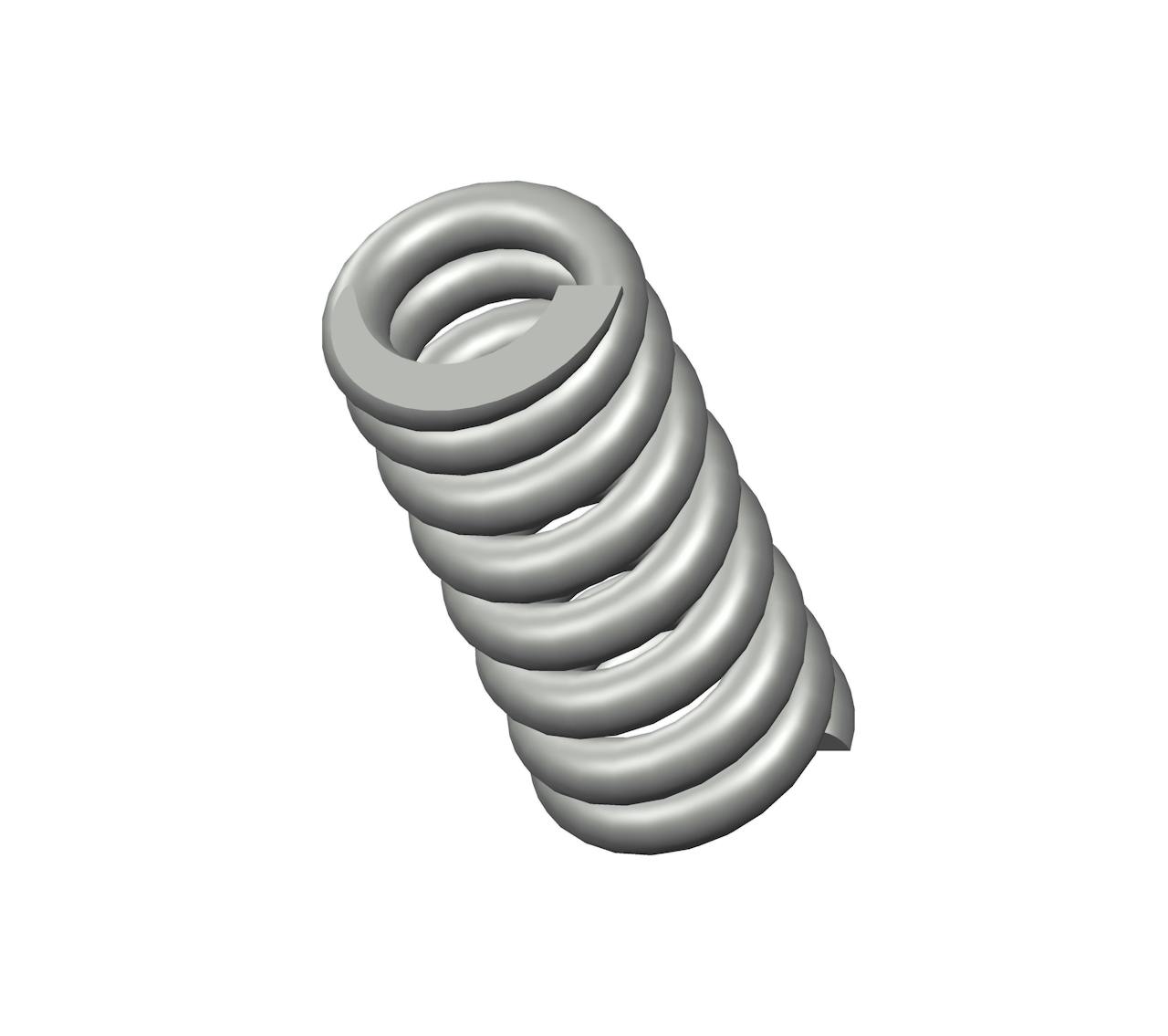

Compression spring manufactured from spring steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.938", and an I.D. of 0.549".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11598
Ends Closed & Ground
Finish Zinc
Free Length 2.13 in
Inside Diameter 0.549 in
Material Spring Steel
Outside Diameter 0.938 in
Part Type Standard
Rate 834 lbs/in
SKU 11598CS
Solid Length 1.75 in
Suggested Max Deflection 0.25 in
Suggested Max Load 208 lbf
Total Coils 8
Wire Diameter 0.195 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 11598
Ends Closed & Ground
Finish Zinc
Free Length 54.1 mm
Inside Diameter 13.94 mm
Material Spring Steel
Outside Diameter 23.83 mm
Part Type Standard
Rate 146.03 N/mm
SKU 11598CS
Solid Length 44.45 mm
Suggested Max Deflection 6.35 mm
Suggested Max Load 925.18 N
Total Coils 8
Wire Diameter 4.95 mm
The 11598CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.195" diameter spring steel, the 11598 spring design exhibits reliable strength across its 8 active coils, withstanding repeated compression cycles with a maximum load of 208 lbf without succumbing to fatigue.

We manufacture the 11598 design to provide a compression spring that is 2.13" long at rest and provides a consistent rate of 834 lbs/in along its recommended maximum of 0.25" deflection. For best results, your application should fully accommodate the inner (0.549") and outer (0.938") diameters of this spring and be designed for its closed & ground end configuration.
