Century Spring

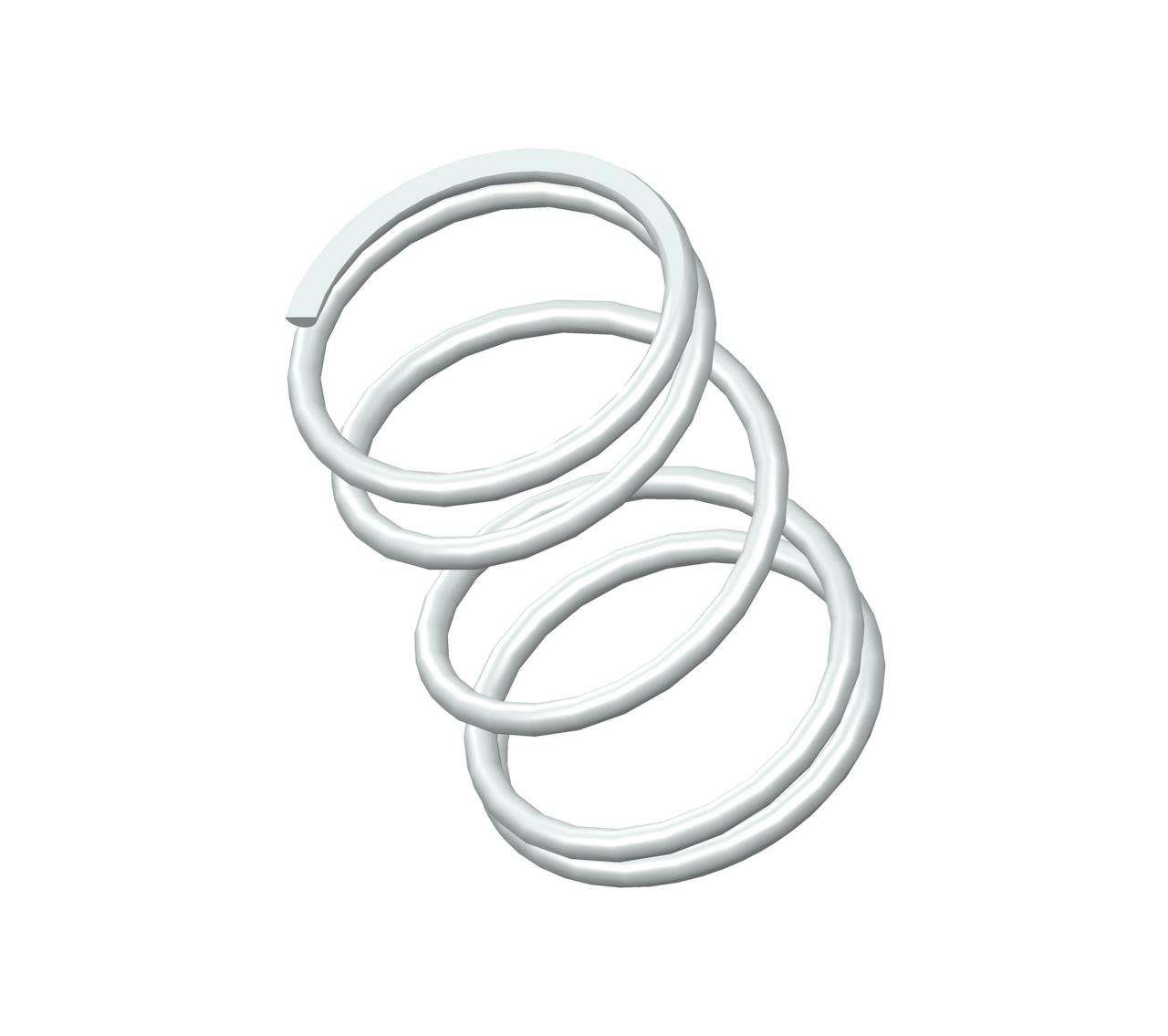

S-882CS - 1.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.843", and an I.D. of 0.713".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-882
Ends Closed & Ground
Finish None
Free Length 1.25 in
Inside Diameter 0.713 in
Material 302/304 Stainless Steel
Outside Diameter 0.843 in
Part Type Standard
Rate 16 lbs/in
SKU S-882CS
Solid Length 0.32 in
Suggested Max Deflection 0.68 in
Suggested Max Load 11 lbf
Total Coils 5
Wire Diameter 0.065 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-882
Ends Closed & Ground
Finish None
Free Length 31.75 mm
Inside Diameter 18.11 mm
Material 302/304 Stainless Steel
Outside Diameter 21.41 mm
Part Type Standard
Rate 2.8 N/mm
SKU S-882CS
Solid Length 8.13 mm
Suggested Max Deflection 17.27 mm
Suggested Max Load 48.93 N
Total Coils 5
Wire Diameter 1.65 mm
The compression spring S-882CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-882 compression spring design exhibits exceptional tensile strength and resilience.

The S-882 design is manufactured with a free length of 1.25", with an outer diameter of 0.843", an inner diameter of 0.713", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.

The S-882CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-882 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
