S-1387CS - 1.5" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

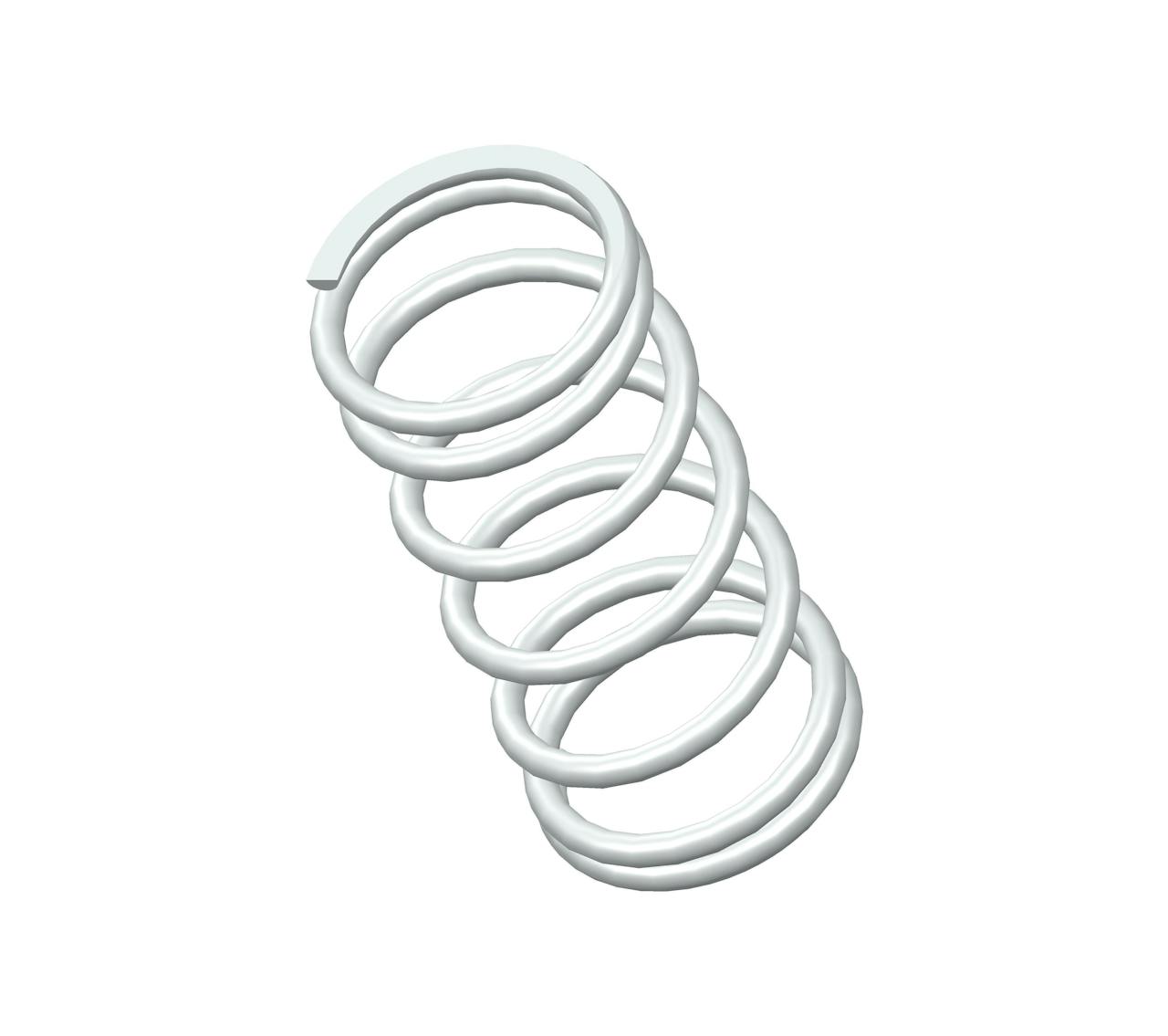

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.687", and an I.D. of 0.553".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1387 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.553 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.687 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | S-1387CS |
| Solid Length | 0.47 in |
| Suggested Max Deflection | 0.7 in |
| Suggested Max Load | 15 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.067 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1387 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 14.05 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 17.45 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | S-1387CS |
| Solid Length | 11.94 mm |
| Suggested Max Deflection | 17.78 mm |
| Suggested Max Load | 66.72 N |
| Total Coils | 7 |
| Wire Diameter | 1.7 mm |
The S-1387 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1387CS compression spring is designed with a free length of 2.19" total of 6 coils, and a rate of 3.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1387 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1387CS compression spring is designed with a free length of 2.19" total of 6 coils, and a rate of 3.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1387 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
