Century Spring

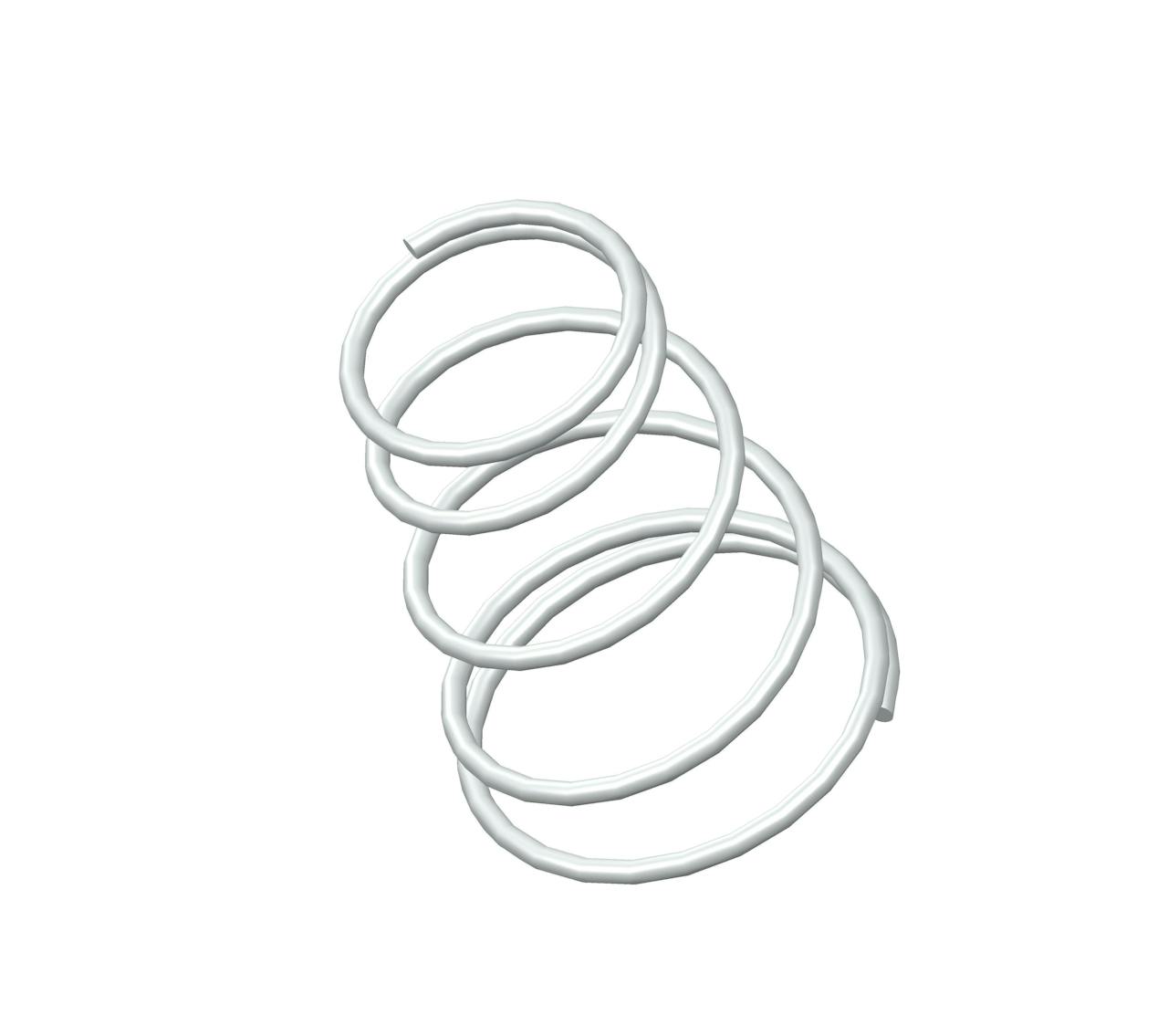

TA-2337CS - 3.5 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 5 total coils and Closed & Ground ends. The OD of this spring tapers from 1.75 Inch to 2.5 Inch. The spring has an I.D. of 1.48 Inch, and an average spring rate of 17.6 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 17.6 lbs/in
Brand Century Spring
Display Name TA-2337
Ends Closed & Ground
Finish None
Free Length 3.5 in
Inside Diameter 1.48 in
Large Outside Diameter 2.5 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 1.75 in
SKU TA-2337CS
Small Outside Diameter 1.75 in
Solid Height 0.43 in
Total Coils 5
Wind Direction Left
Wire Diameter 0.135 in
Specs (in metric)
Label Value
Average Rate 3.08 N/mm
Brand Century Spring
Display Name TA-2337
Ends Closed & Ground
Finish None
Free Length 88.9 mm
Inside Diameter 37.59 mm
Large Outside Diameter 63.5 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 44.45 mm
SKU TA-2337CS
Small Outside Diameter 44.45 mm
Solid Height 10.92 mm
Total Coils 5
Wind Direction Left
Wire Diameter 3.43 mm
