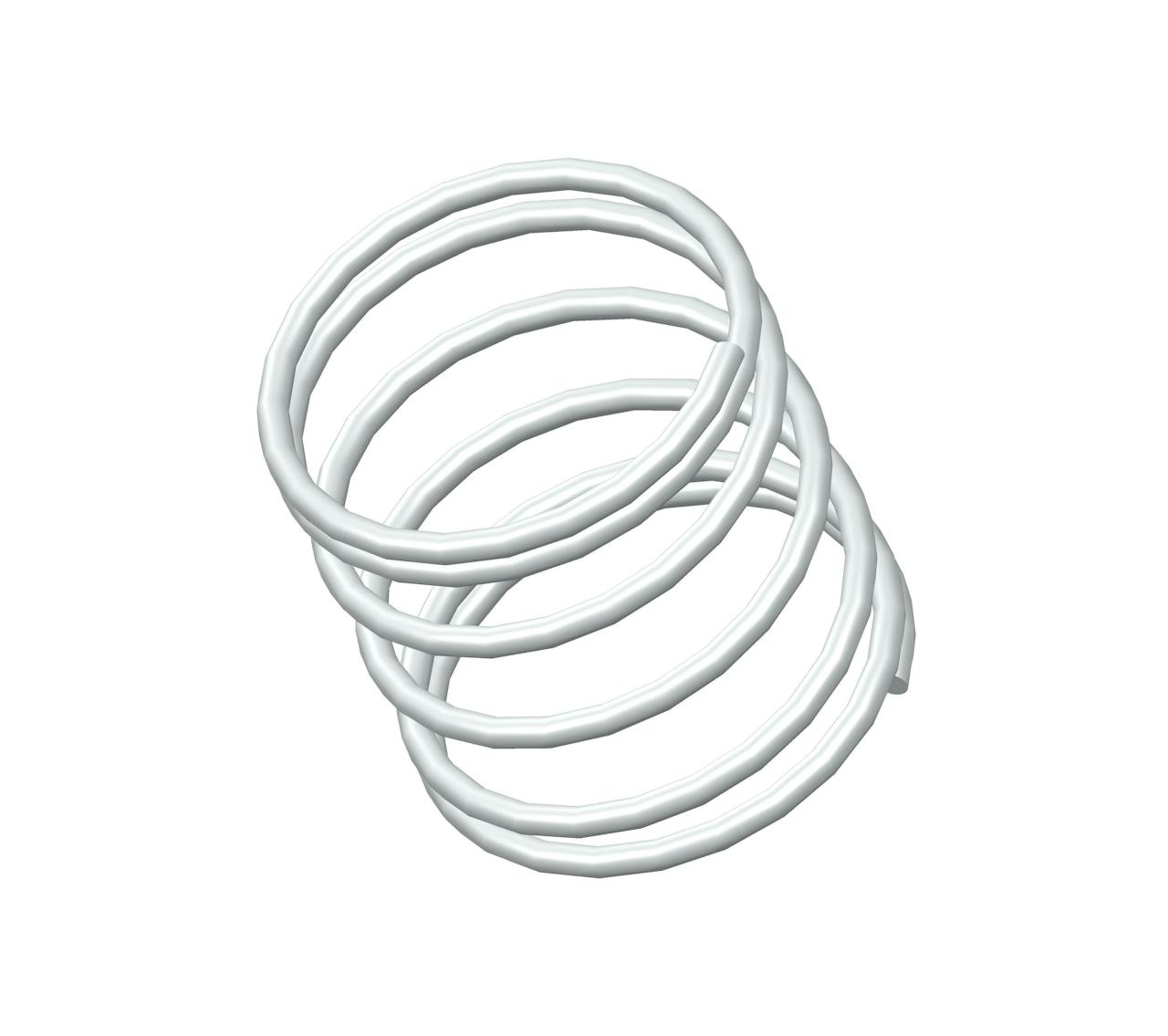

S-1096CS - 0.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.356".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1096 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.356 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 2.2 lbs/in |
| SKU | S-1096CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.26 in |
| Suggested Max Load | 0.58 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1096 |
| Ends | Closed |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 9.04 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 0.39 N/mm |
| SKU | S-1096CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 6.6 mm |
| Suggested Max Load | 2.58 N |
| Total Coils | 6 |
| Wire Diameter | 0.64 mm |
The compression spring S-1096CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1096 compression spring design exhibits exceptional tensile strength and resilience.
The S-1096 design is manufactured with a free length of 0.44", with an outer diameter of 0.406", an inner diameter of 0.356", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.2 lbs/in.
The S-1096CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1096 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1096 design is manufactured with a free length of 0.44", with an outer diameter of 0.406", an inner diameter of 0.356", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.2 lbs/in.
The S-1096CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1096 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
