Century Spring

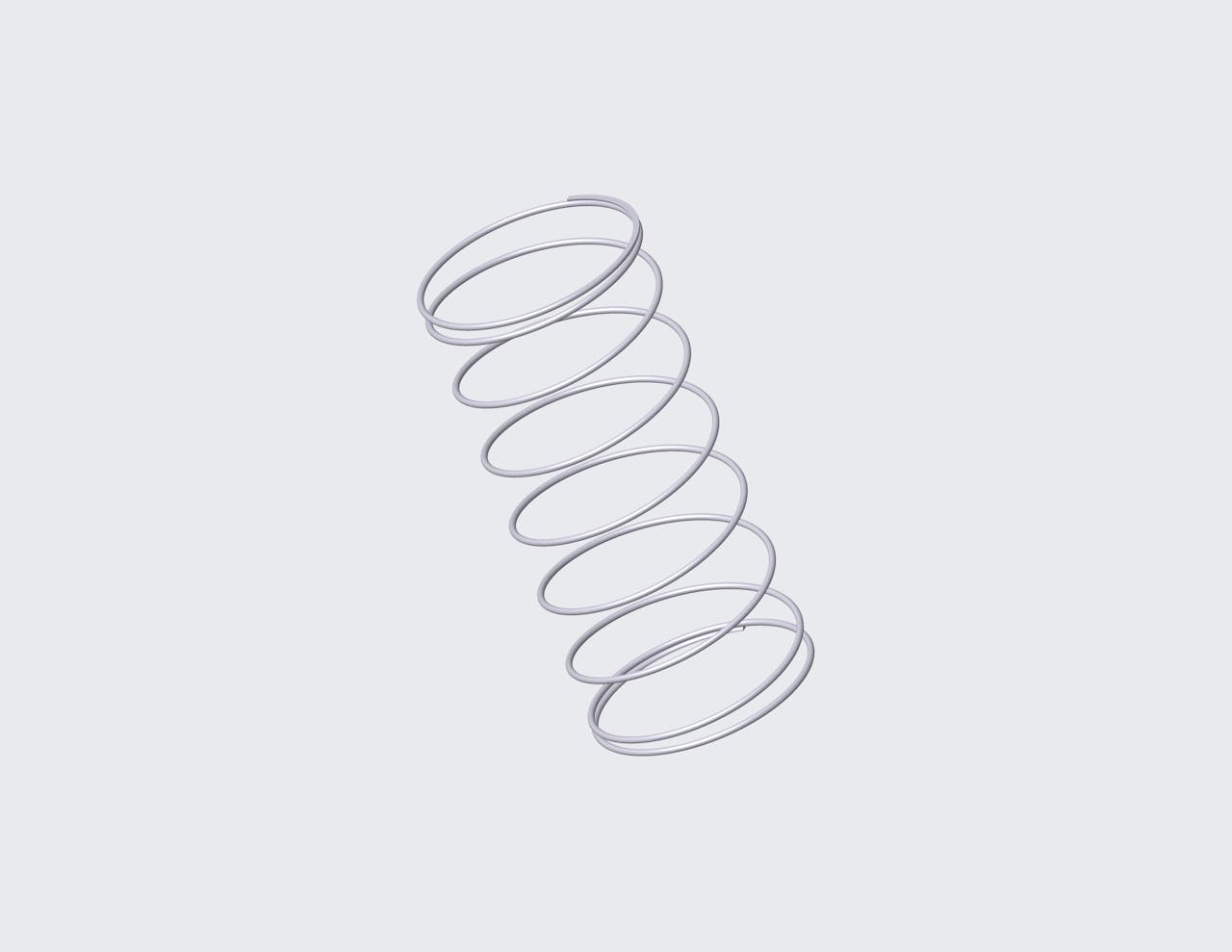

67734SCS - 0.88" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 9 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.382".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 67734S
Ends Closed
Finish Passivated
Free Length 0.88 in
Inside Diameter 0.382 in
Material 316 Stainless Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 0.061 lbs/in
SKU 67734SCS
Solid Length 0.12 in
Suggested Max Deflection 0.76 in
Suggested Max Load 0.046 lbf
Total Coils 9
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 67734S
Ends Closed
Finish Passivated
Free Length 22.35 mm
Inside Diameter 9.7 mm
Material 316 Stainless Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 0.01 N/mm
SKU 67734SCS
Solid Length 3.05 mm
Suggested Max Deflection 19.3 mm
Suggested Max Load 0.2 N
Total Coils 9
Wire Diameter 0.3 mm
The 67734SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.012" diameter 316 stainless steel, the 67734S spring design exhibits reliable strength across its 9 active coils, withstanding repeated compression cycles with a maximum load of 0.046 lbf without succumbing to fatigue.

We manufacture the 67734S design to provide a compression spring that is 0.88" long at rest and provides a consistent rate of 0.061 lbs/in along its recommended maximum of 0.76" deflection. For best results, your application should fully accommodate the inner (0.382") and outer (0.406") diameters of this spring and be designed for its closed end configuration.
