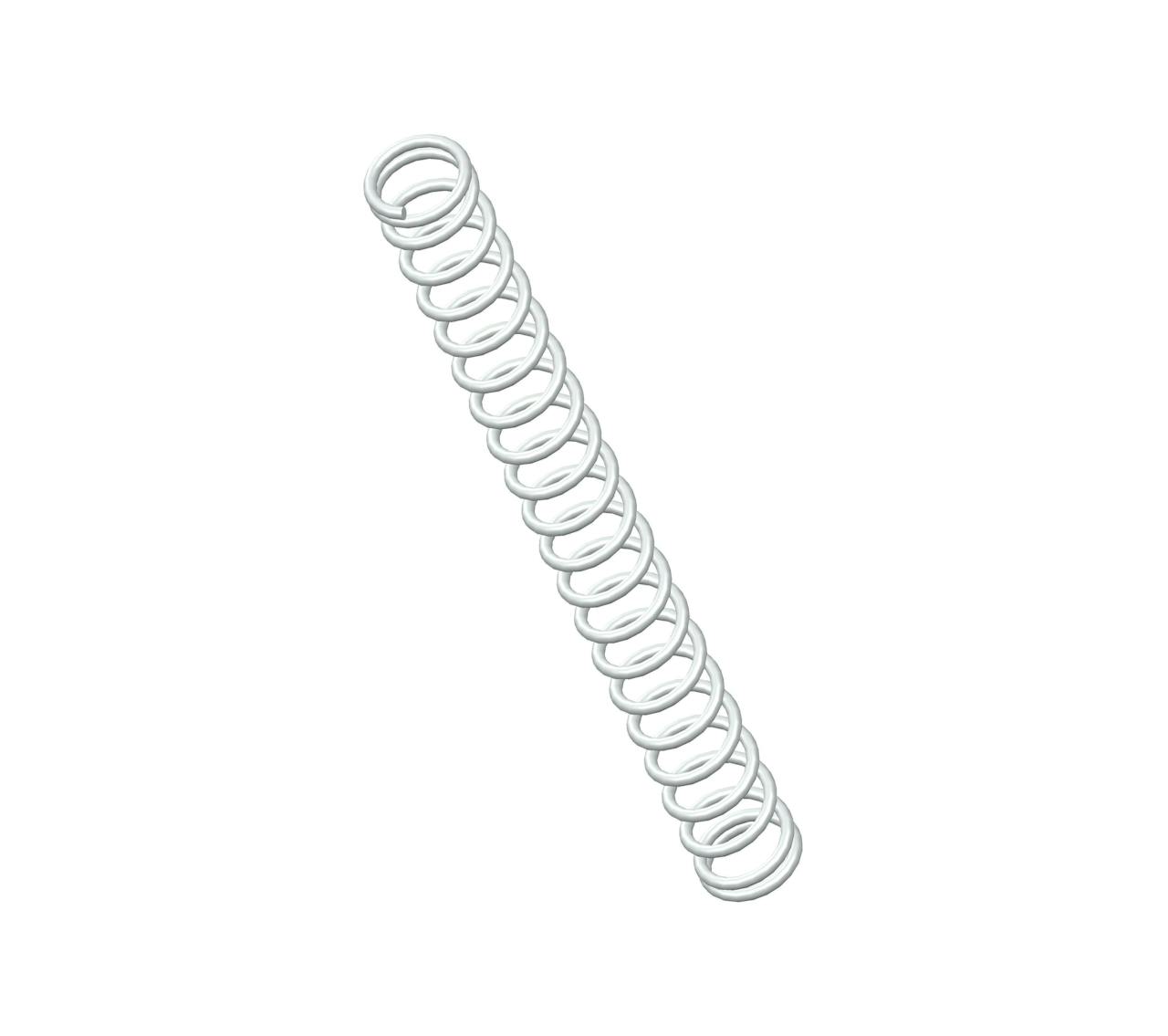

S-1085CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 21.5 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.095".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1085 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.095 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.125 in |
| Part Type | Standard |
| Rate | 2.4 lbs/in |
| SKU | S-1085CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.43 in |
| Suggested Max Load | 1.1 lbf |
| Total Coils | 21.5 |
| Wire Diameter | 0.015 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1085 |
| Ends | Closed |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 2.41 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.18 mm |
| Part Type | Standard |
| Rate | 0.42 N/mm |
| SKU | S-1085CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 10.92 mm |
| Suggested Max Load | 4.89 N |
| Total Coils | 21.5 |
| Wire Diameter | 0.38 mm |
The compression spring S-1085CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1085 compression spring design exhibits exceptional tensile strength and resilience.
The S-1085 design is manufactured with a free length of 1.25", with an outer diameter of 0.125", an inner diameter of 0.095", and a total of 21.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.4 lbs/in.
The S-1085CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1085 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1085 design is manufactured with a free length of 1.25", with an outer diameter of 0.125", an inner diameter of 0.095", and a total of 21.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.4 lbs/in.
The S-1085CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1085 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
