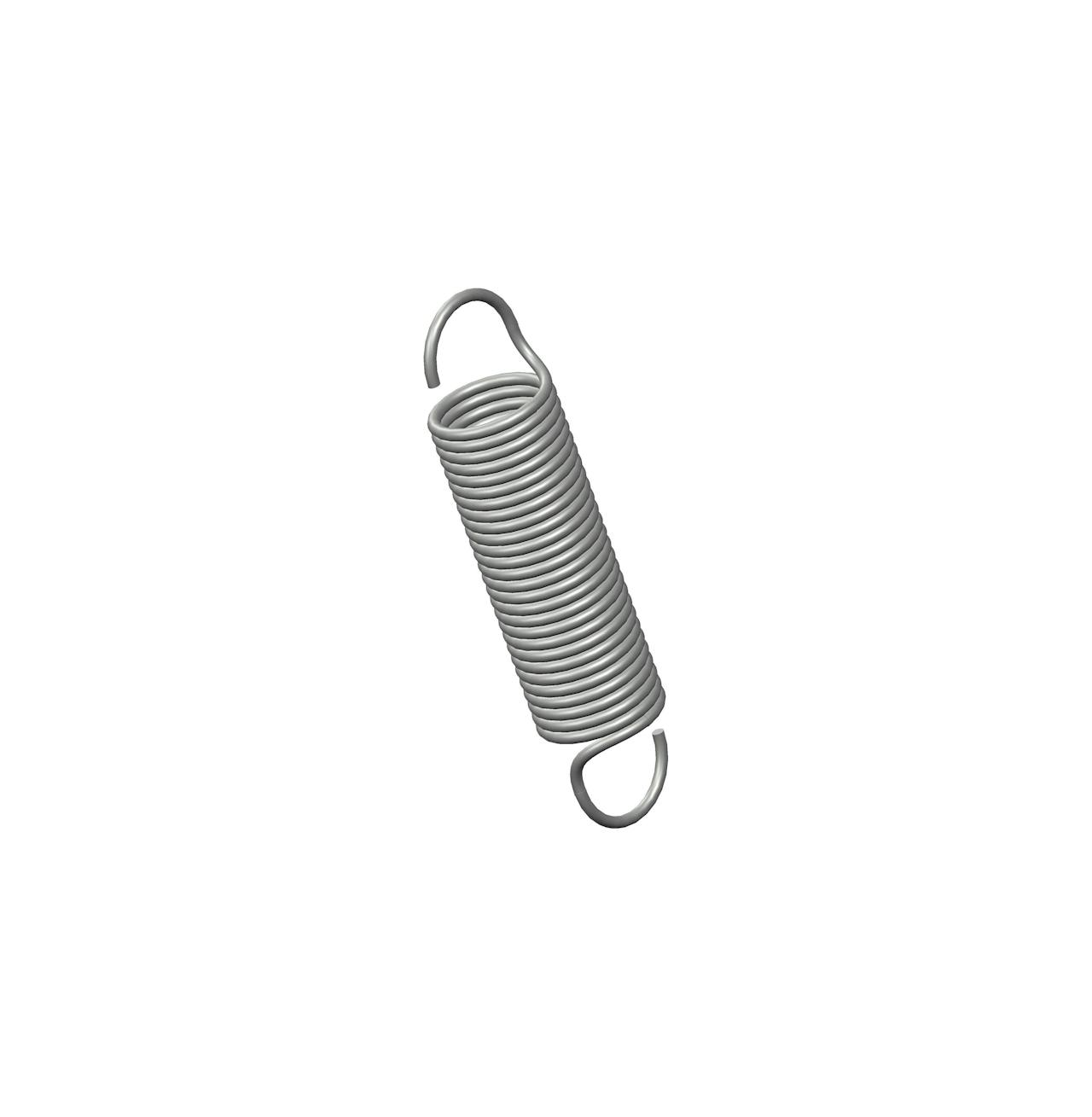

ZZ1-40CS - 1.16 Inch Music Wire Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in Music Wire. This spring features an O.D. of 0.25 Inch and an initial tension of 0.3 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name ZZ1-40
Ends Machine Hook
Finish None
Initial Tension 0.3 lb
Length 1.16 in
Material Music Wire
Outside Diameter 0.25 in
Part Type Standard
Rate 1.7 lbs/in
SKU ZZ1-40CS
Sugg Max Deflection 1.6 in
Sugg Max Load 3.1 lbf
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name ZZ1-40
Ends Machine Hook
Finish None
Initial Tension 0.14 kg
Length 29.46 mm
Material Music Wire
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.3 N/mm
SKU ZZ1-40CS
Sugg Max Deflection 40.64 mm
Sugg Max Load 13.79 N
Wire Diameter 0.64 mm
