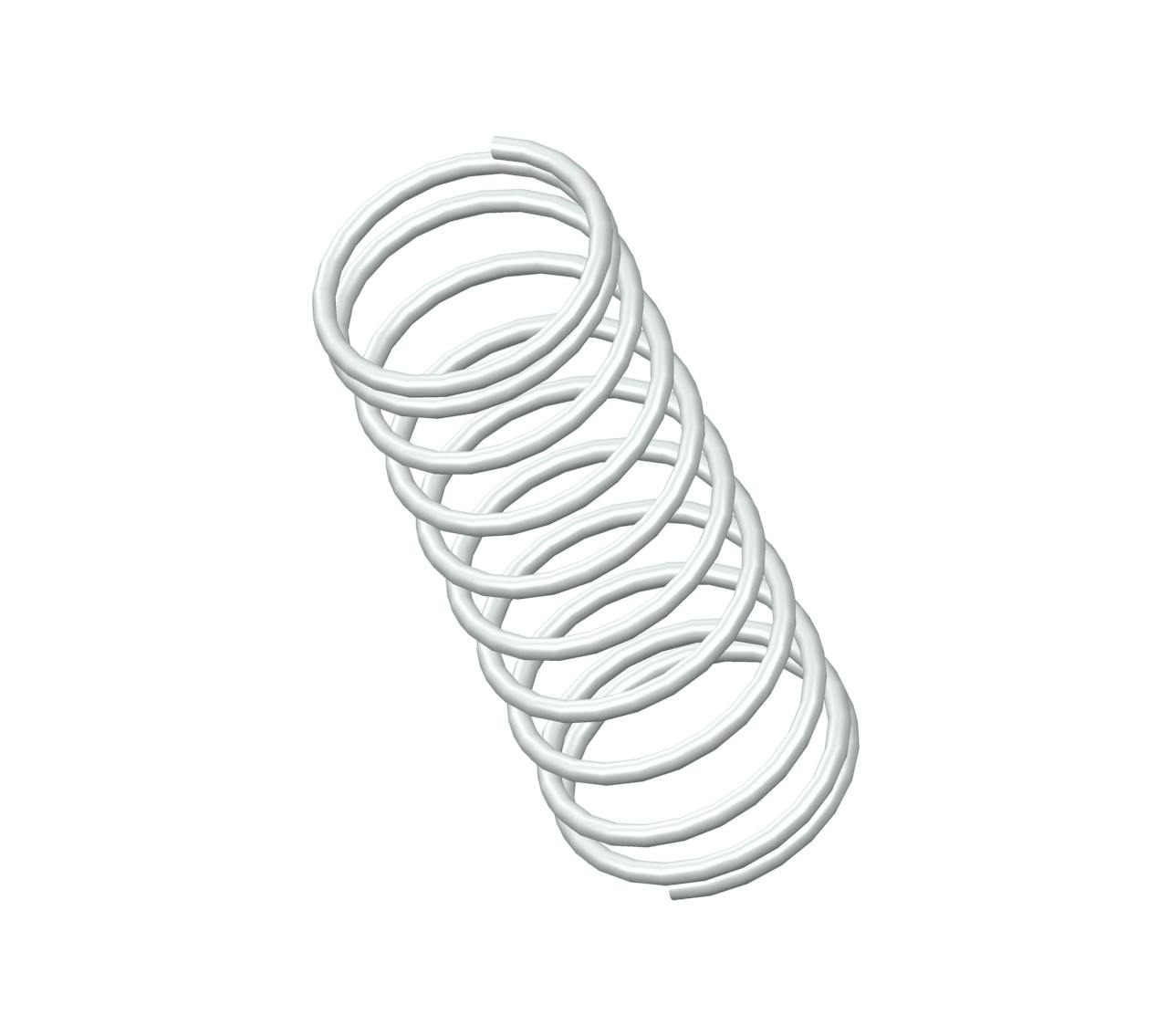

S-1074CS - 1.44" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed ends. This spring features an O.D. of 0.546", and an I.D. of 0.466".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1074 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.44 in |
| Inside Diameter | 0.466 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 2.9 lbs/in |
| SKU | S-1074CS |
| Solid Length | 0.46 in |
| Suggested Max Deflection | 0.98 in |
| Suggested Max Load | 2.8 lbf |
| Total Coils | 10.5 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1074 |
| Ends | Closed |
| Finish | None |
| Free Length | 36.58 mm |
| Inside Diameter | 11.84 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 0.51 N/mm |
| SKU | S-1074CS |
| Solid Length | 11.68 mm |
| Suggested Max Deflection | 24.89 mm |
| Suggested Max Load | 12.45 N |
| Total Coils | 10.5 |
| Wire Diameter | 1.02 mm |
The compression spring S-1074CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1074 compression spring design exhibits exceptional tensile strength and resilience.
The S-1074 design is manufactured with a free length of 1.44", with an outer diameter of 0.546", an inner diameter of 0.466", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.9 lbs/in.
The S-1074CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1074 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1074 design is manufactured with a free length of 1.44", with an outer diameter of 0.546", an inner diameter of 0.466", and a total of 10.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.9 lbs/in.
The S-1074CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1074 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
