Century Spring

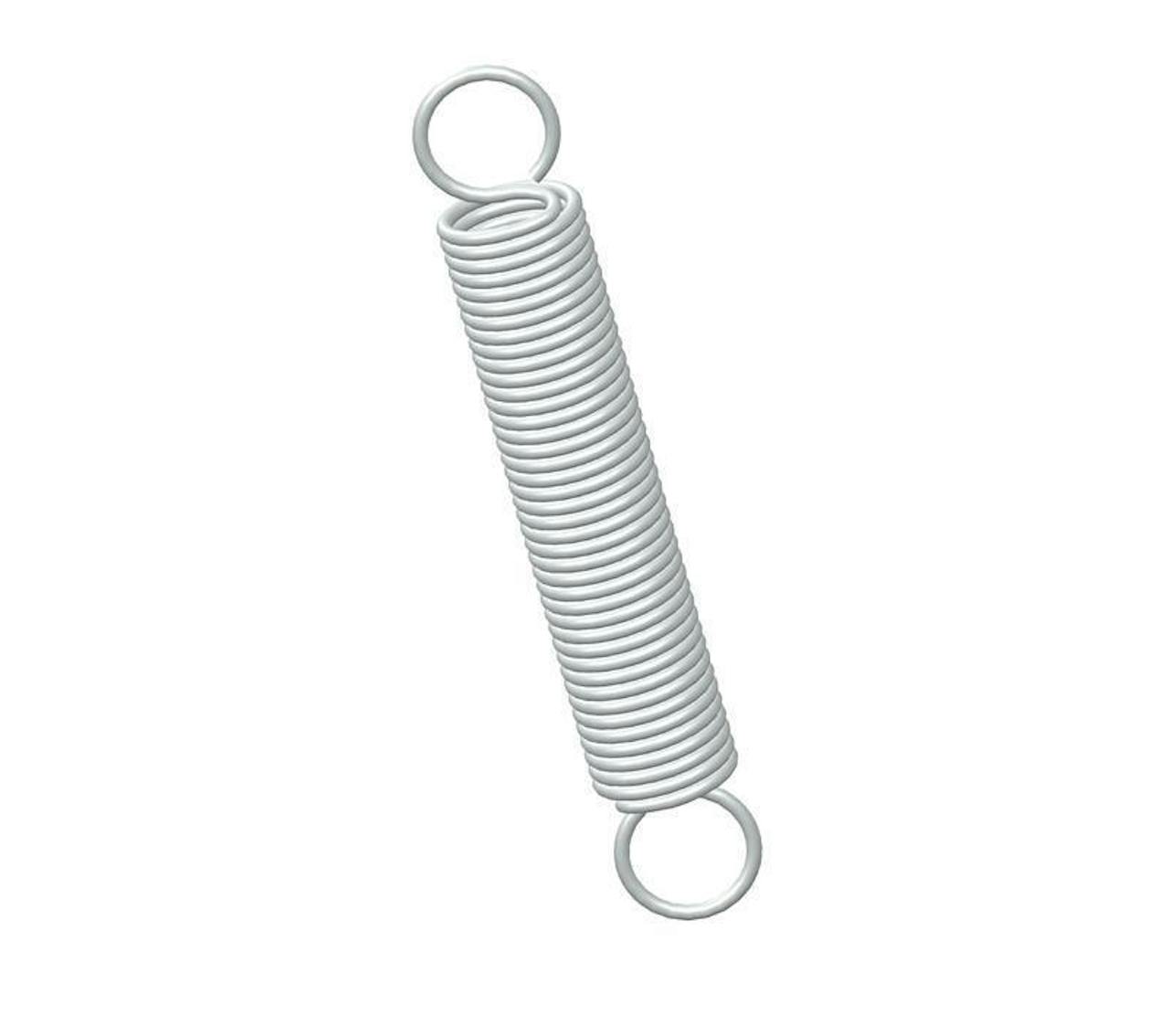

80820SCS - 4 Inch 302/304 Stainless Steel Extension Spring

Inventory Status
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.65 Inch and an initial tension of 2 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80820S
Ends Full Loop
Finish None
Initial Tension 2 lb
Length 4 in
Material 302/304 Stainless Steel
Outside Diameter 0.65 in
Part Type Standard
Rate 3.5 lbs/in
SKU 80820SCS
Sugg Max Deflection 3.8 in
Sugg Max Load 15 lbf
Wind Direction Left
Wire Diameter 0.069 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80820S
Ends Full Loop
Finish None
Initial Tension 0.91 kg
Length 101.6 mm
Material 302/304 Stainless Steel
Outside Diameter 16.51 mm
Part Type Standard
Rate 0.61 N/mm
SKU 80820SCS
Sugg Max Deflection 96.52 mm
Sugg Max Load 66.72 N
Wind Direction Left
Wire Diameter 1.75 mm
