Century Spring

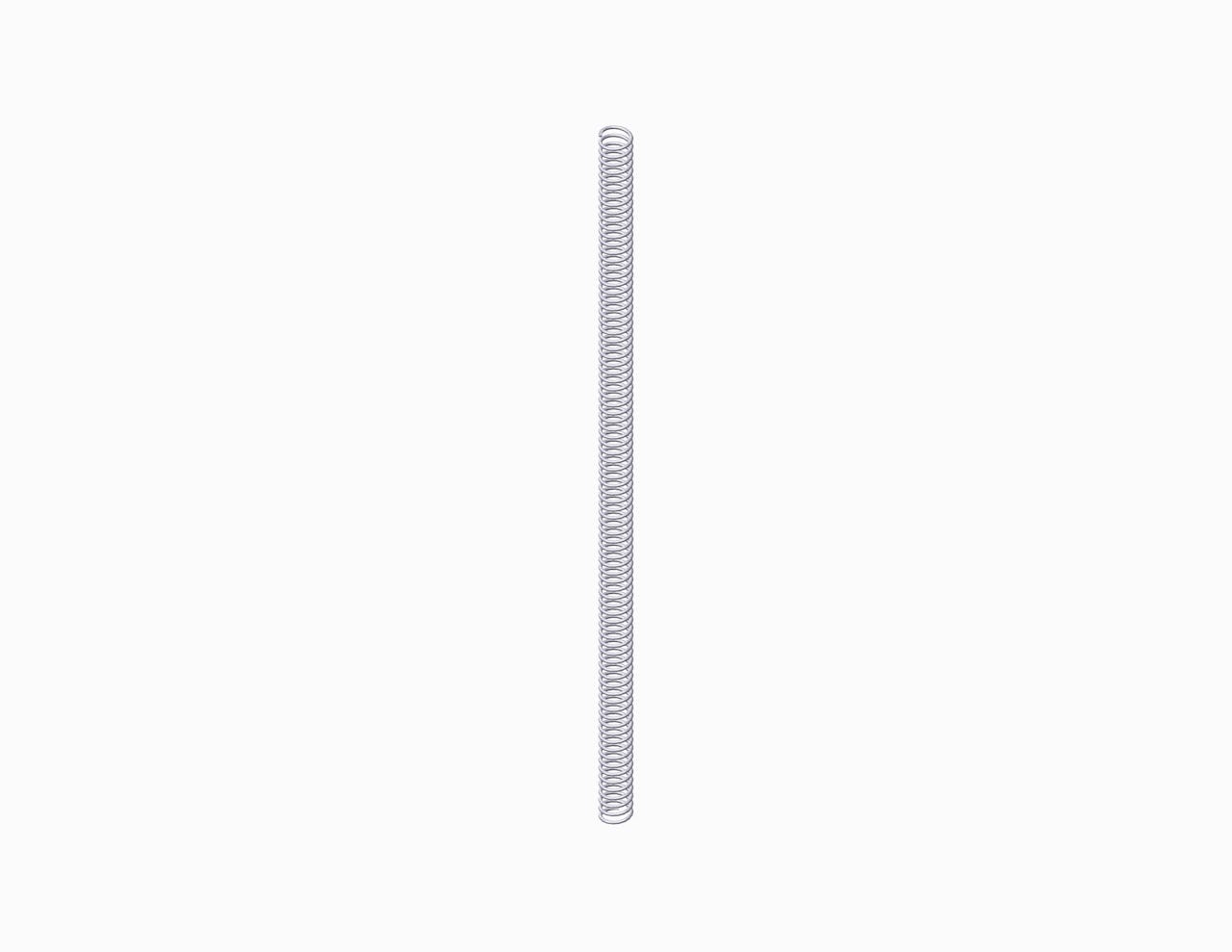

R-30CS - 1.5 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in Carbon Steel. This spring features an O.D. of 1.5 Inch, and an I.D. of 1.176 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name R-30
Finish None
Inside Diameter 1.176 in
Length 36 in
Material Carbon Steel
Measurement Units Standard
Outside Diameter 1.5 in
Pitch 0.422 in
Product Image R_30CS
Rate 174.9996 lbs/in
Rate Constant 14.5833 lbf
SKU R-30CS
Solid Length Constant 0.48 in
Solid Length Per 0.48 lb
Suggested Max Load 84 lbf
Wire Diameter 0.162 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name R-30
Finish None
Inside Diameter 29.87 mm
Length 914.4 mm
Material Carbon Steel
Measurement Units Standard
Outside Diameter 38.1 mm
Pitch 10.72 mm
Product Image R_30CS
Rate 30.64 N-mm
Rate Constant 2553.93 N
SKU R-30CS
Solid Length Constant 12.19 mm
Solid Length Per 0.22 kg
Suggested Max Load 373.63 N
Wire Diameter 4.11 mm
