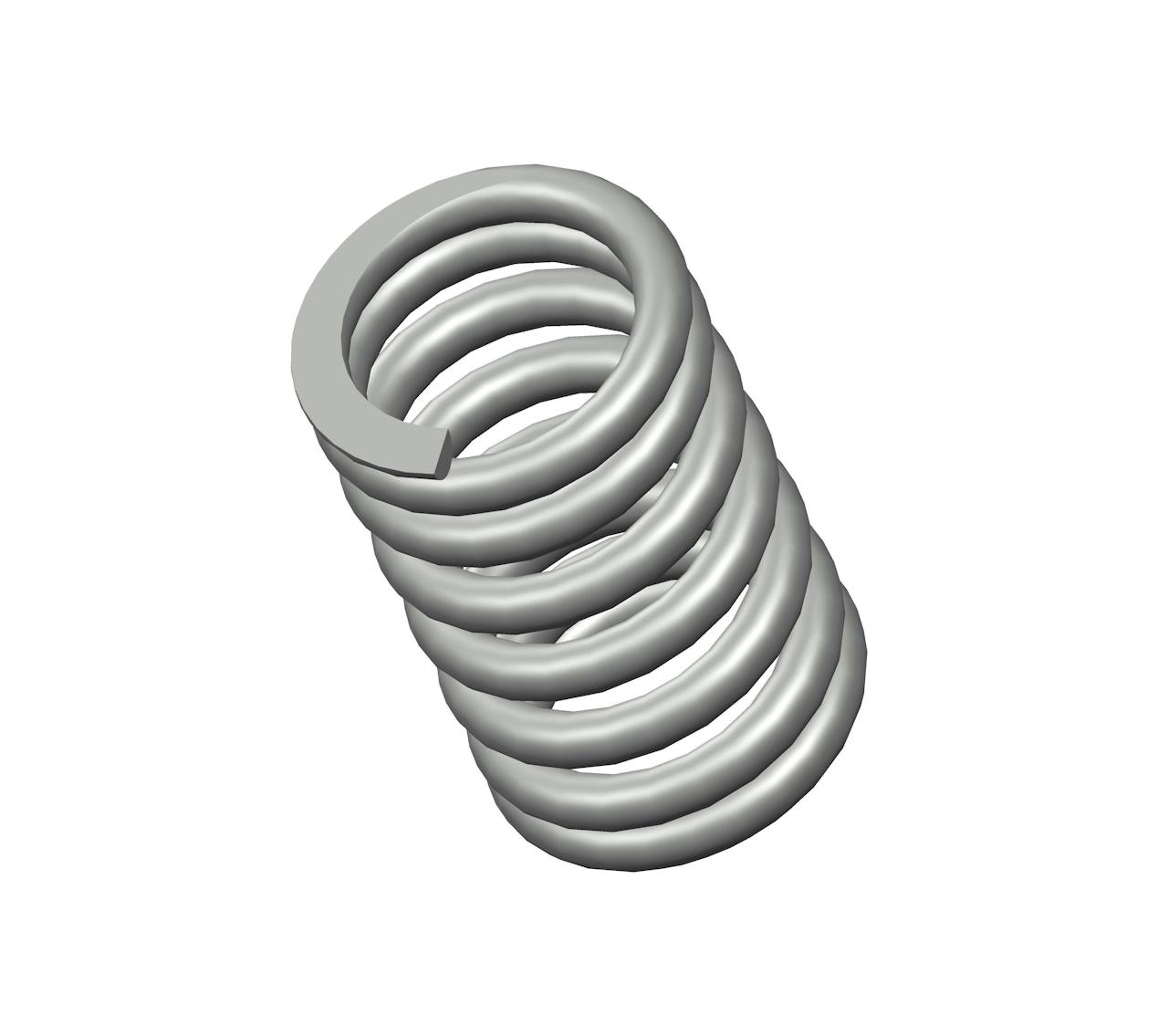

UU-39CS - 1.78" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 1.109", and an I.D. of 0.795".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | UU-39 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.78 in |
| Inside Diameter | 0.795 in |
| Material | Spring Steel |
| Outside Diameter | 1.109 in |
| Part Type | Standard |
| Rate | 184 lbs/in |
| SKU | UU-39CS |
| Solid Length | 1.18 in |
| Suggested Max Deflection | 0.56 in |
| Suggested Max Load | 102 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.157 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | UU-39 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 45.21 mm |
| Inside Diameter | 20.19 mm |
| Material | Spring Steel |
| Outside Diameter | 28.17 mm |
| Part Type | Standard |
| Rate | 32.22 N/mm |
| SKU | UU-39CS |
| Solid Length | 29.97 mm |
| Suggested Max Deflection | 14.22 mm |
| Suggested Max Load | 453.7 N |
| Total Coils | 7.5 |
| Wire Diameter | 3.99 mm |
The compression spring UU-39CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the UU-39 compression spring design exhibits exceptional tensile strength and resilience.
The UU-39 design is manufactured with a free length of 1.78", with an outer diameter of 1.109", an inner diameter of 0.795", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 184 lbs/in.
The UU-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring UU-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The UU-39 design is manufactured with a free length of 1.78", with an outer diameter of 1.109", an inner diameter of 0.795", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 184 lbs/in.
The UU-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring UU-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
