Century Spring

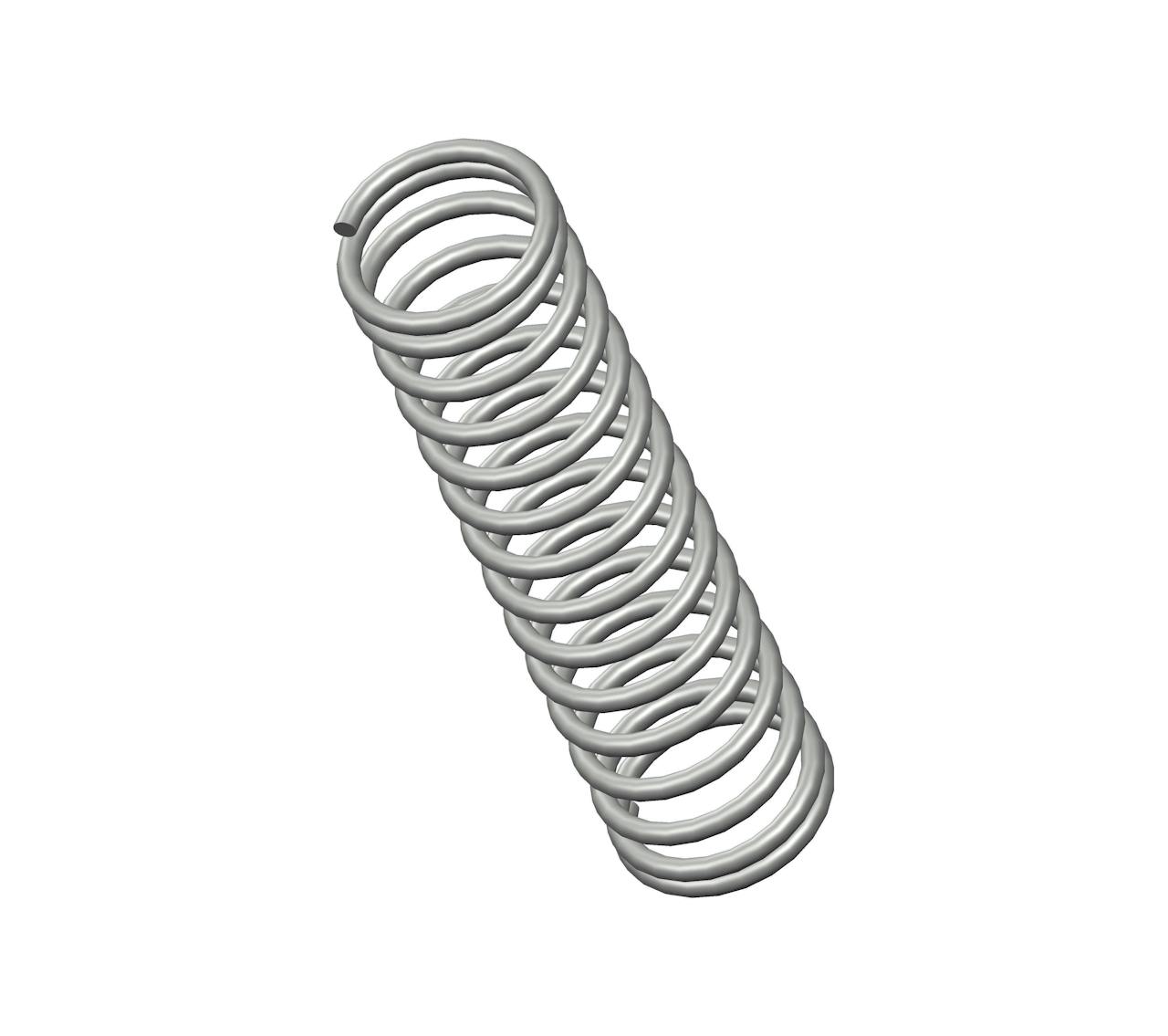

QQ-46CS - 1.19" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 15 coils and closed ends. This spring features an O.D. of 0.296", and an I.D. of 0.236".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name QQ-46
Ends Closed
Finish Zinc
Free Length 1.19 in
Inside Diameter 0.236 in
Material Music Wire
Outside Diameter 0.296 in
Part Type Standard
Rate 4.7 lbs/in
SKU QQ-46CS
Solid Length 0.48 in
Suggested Max Deflection 0.71 in
Suggested Max Load 3.3 lbf
Total Coils 15
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name QQ-46
Ends Closed
Finish Zinc
Free Length 30.23 mm
Inside Diameter 5.99 mm
Material Music Wire
Outside Diameter 7.52 mm
Part Type Standard
Rate 0.82 N/mm
SKU QQ-46CS
Solid Length 12.19 mm
Suggested Max Deflection 18.03 mm
Suggested Max Load 14.68 N
Total Coils 15
Wire Diameter 0.76 mm
The compression spring QQ-46CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the QQ-46 compression spring design exhibits exceptional tensile strength and resilience.

The QQ-46 design is manufactured with a free length of 1.19", with an outer diameter of 0.296", an inner diameter of 0.236", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.

The QQ-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring QQ-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
