Century Spring

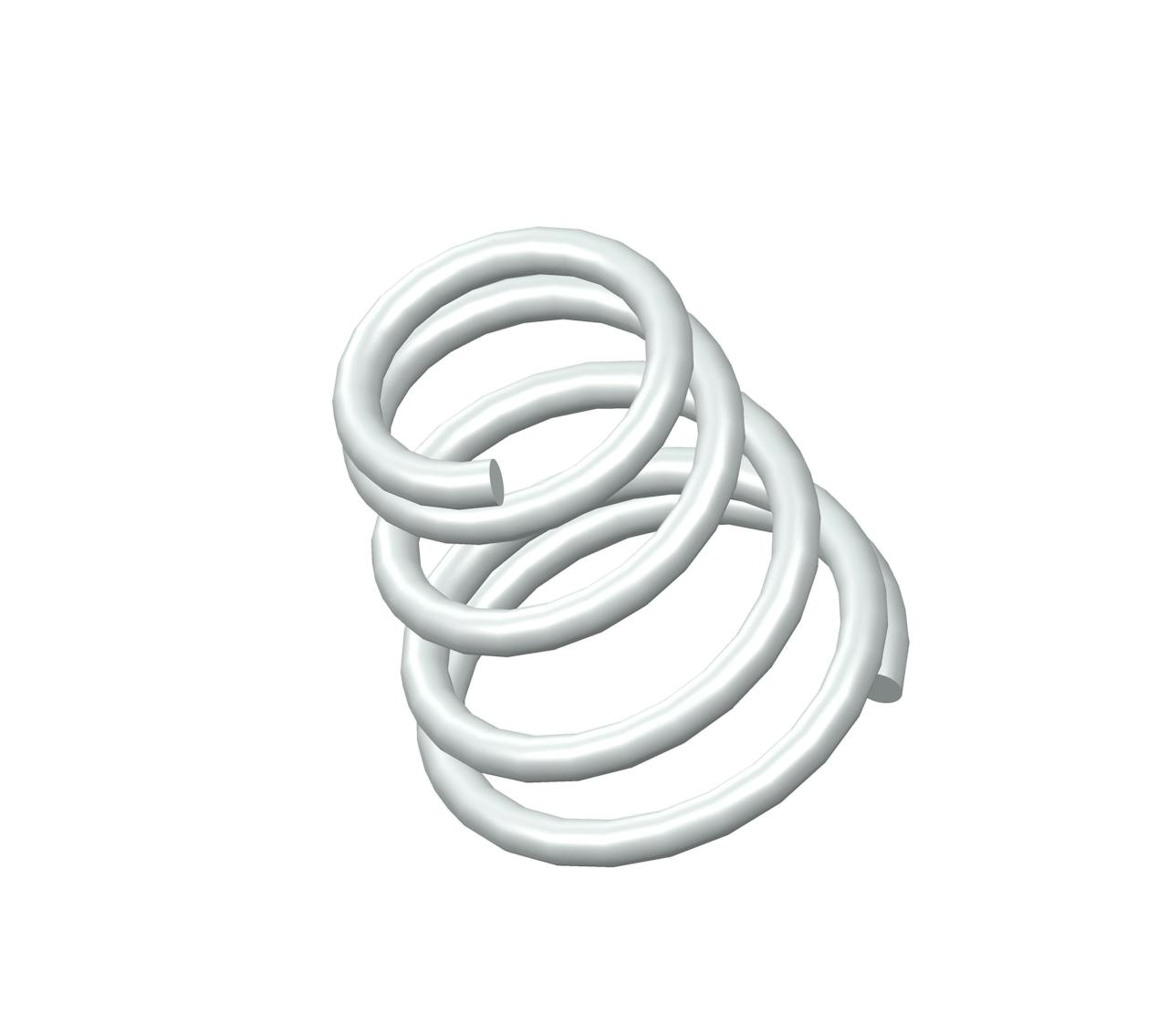

TA-2354CS - 0.42 Inch Height 302/304 Stainless Steel Tapered Spring

Inventory Status
Estimated Lead Time

Tapered compression spring in 302/304 Stainless Steel with 4.5 total coils and Closed ends. The OD of this spring tapers from 0.266 Inch to 0.375 Inch. The spring has an I.D. of 0.196 Inch, and an average spring rate of 32.2 Inch Pounds.

Download CAD
Unit System
Specs (in standard)
Label Value
Average Rate 32.2 lbs/in
Brand Century Spring
Display Name TA-2354
Ends Closed
Finish None
Free Length 0.42 in
Inside Diameter 0.196 in
Large Outside Diameter 0.375 in
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 0.266 in
SKU TA-2354CS
Small Outside Diameter 0.266 in
Solid Height 0.16 in
Total Coils 4.5
Wind Direction Left
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Average Rate 5.64 N/mm
Brand Century Spring
Display Name TA-2354
Ends Closed
Finish None
Free Length 10.67 mm
Inside Diameter 4.98 mm
Large Outside Diameter 9.53 mm
Material 302/304 Stainless Steel
Measurement Units Standard
Outside Diameter 6.76 mm
SKU TA-2354CS
Small Outside Diameter 6.76 mm
Solid Height 4.06 mm
Total Coils 4.5
Wind Direction Left
Wire Diameter 0.89 mm
