Q-88CS - 0.88" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

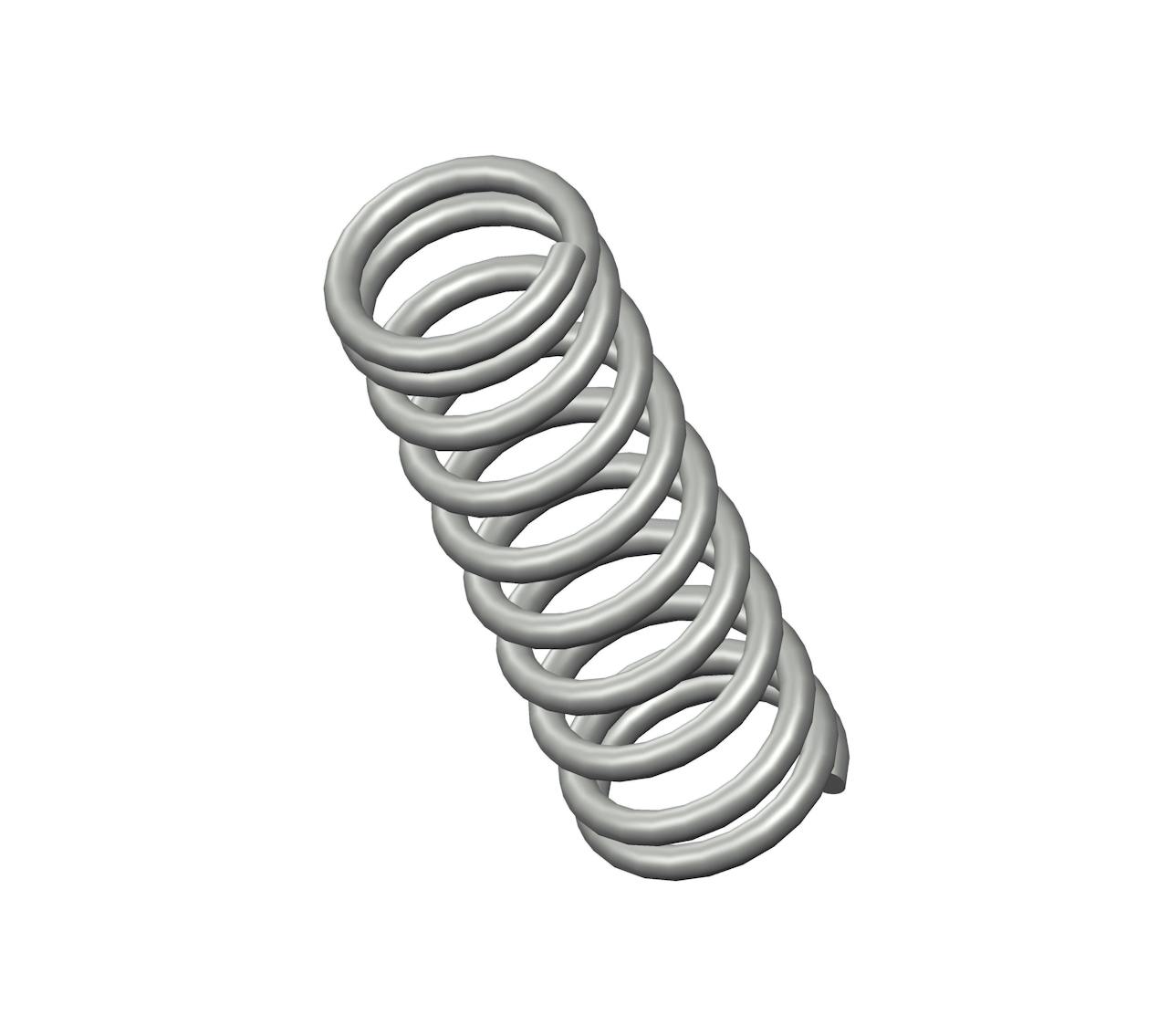

Compression spring manufactured from spring steel with 10 coils and closed ends. This spring features an O.D. of 0.281", and an I.D. of 0.209".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-88 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 0.88 in |
| Inside Diameter | 0.209 in |
| Material | Spring Steel |
| Outside Diameter | 0.281 in |
| Part Type | Standard |
| Rate | 21 lbs/in |
| SKU | Q-88CS |
| Solid Length | 0.4 in |
| Suggested Max Deflection | 0.31 in |
| Suggested Max Load | 6.3 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.036 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-88 |
| Ends | Closed |
| Finish | Gold Iridite |
| Free Length | 22.35 mm |
| Inside Diameter | 5.31 mm |
| Material | Spring Steel |
| Outside Diameter | 7.14 mm |
| Part Type | Standard |
| Rate | 3.68 N/mm |
| SKU | Q-88CS |
| Solid Length | 10.16 mm |
| Suggested Max Deflection | 7.87 mm |
| Suggested Max Load | 28.02 N |
| Total Coils | 10 |
| Wire Diameter | 0.91 mm |
The Q-88 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The Q-88CS compression spring is designed with a free length of 0.75" total of 7 coils, and a rate of 8.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The Q-88 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The Q-88CS compression spring is designed with a free length of 0.75" total of 7 coils, and a rate of 8.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The Q-88 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
