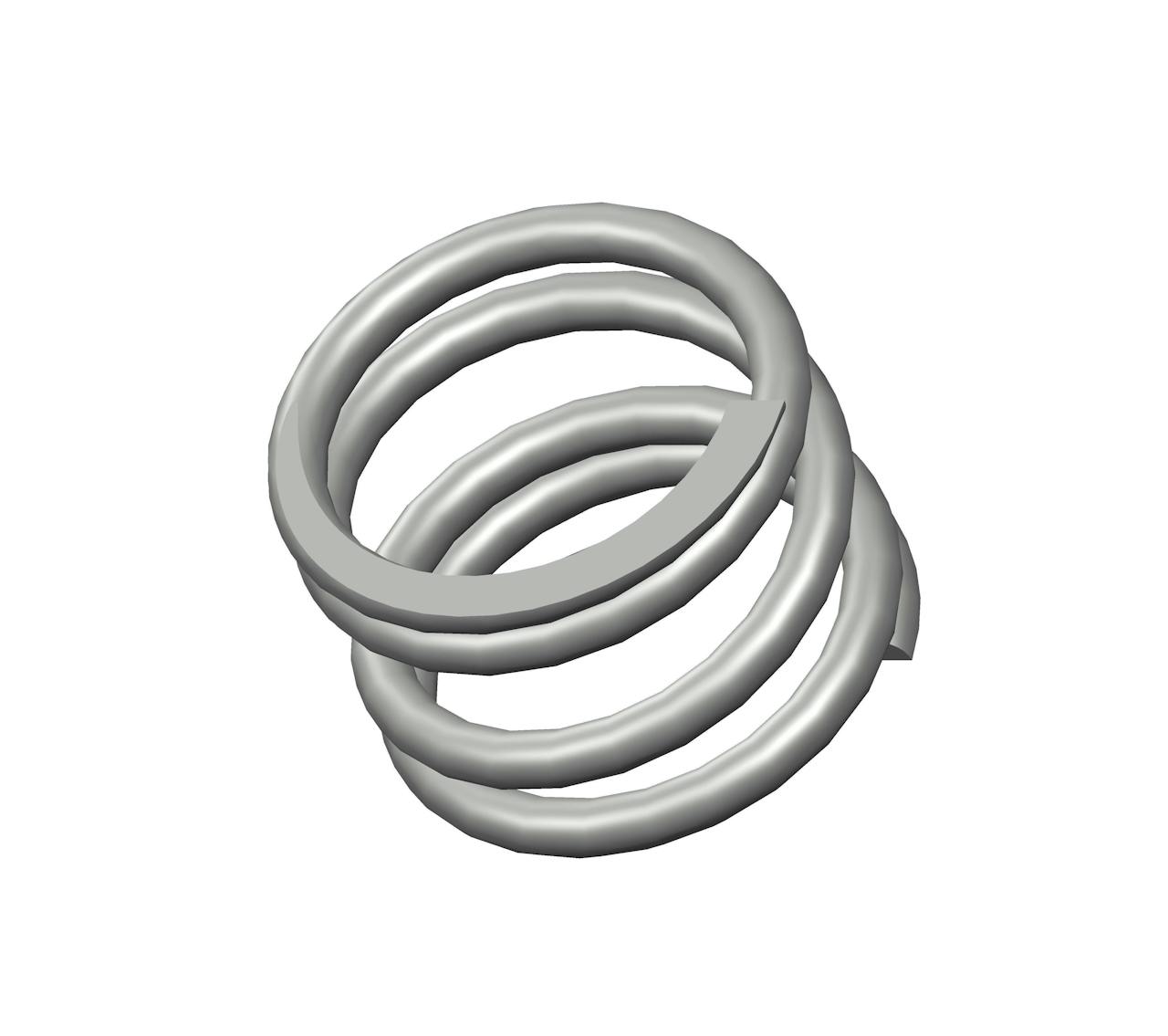

CC-79CS - 0.56" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.59".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name CC-79
Ends Closed & Ground
Finish None
Free Length 0.56 in
Inside Diameter 0.59 in
Material Spring Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 98 lbs/in
SKU CC-79CS
Solid Length 0.32 in
Suggested Max Deflection 0.24 in
Suggested Max Load 23 lbf
Total Coils 4
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name CC-79
Ends Closed & Ground
Finish None
Free Length 14.22 mm
Inside Diameter 14.99 mm
Material Spring Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 17.16 N/mm
SKU CC-79CS
Solid Length 8.13 mm
Suggested Max Deflection 6.1 mm
Suggested Max Load 102.3 N
Total Coils 4
Wire Diameter 2.03 mm
The CC-79 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The CC-79CS compression spring is designed with a free length of 0.88" total of 5.75 coils, and a rate of 2.7 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The CC-79 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
