Q-58CS - 1.56" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

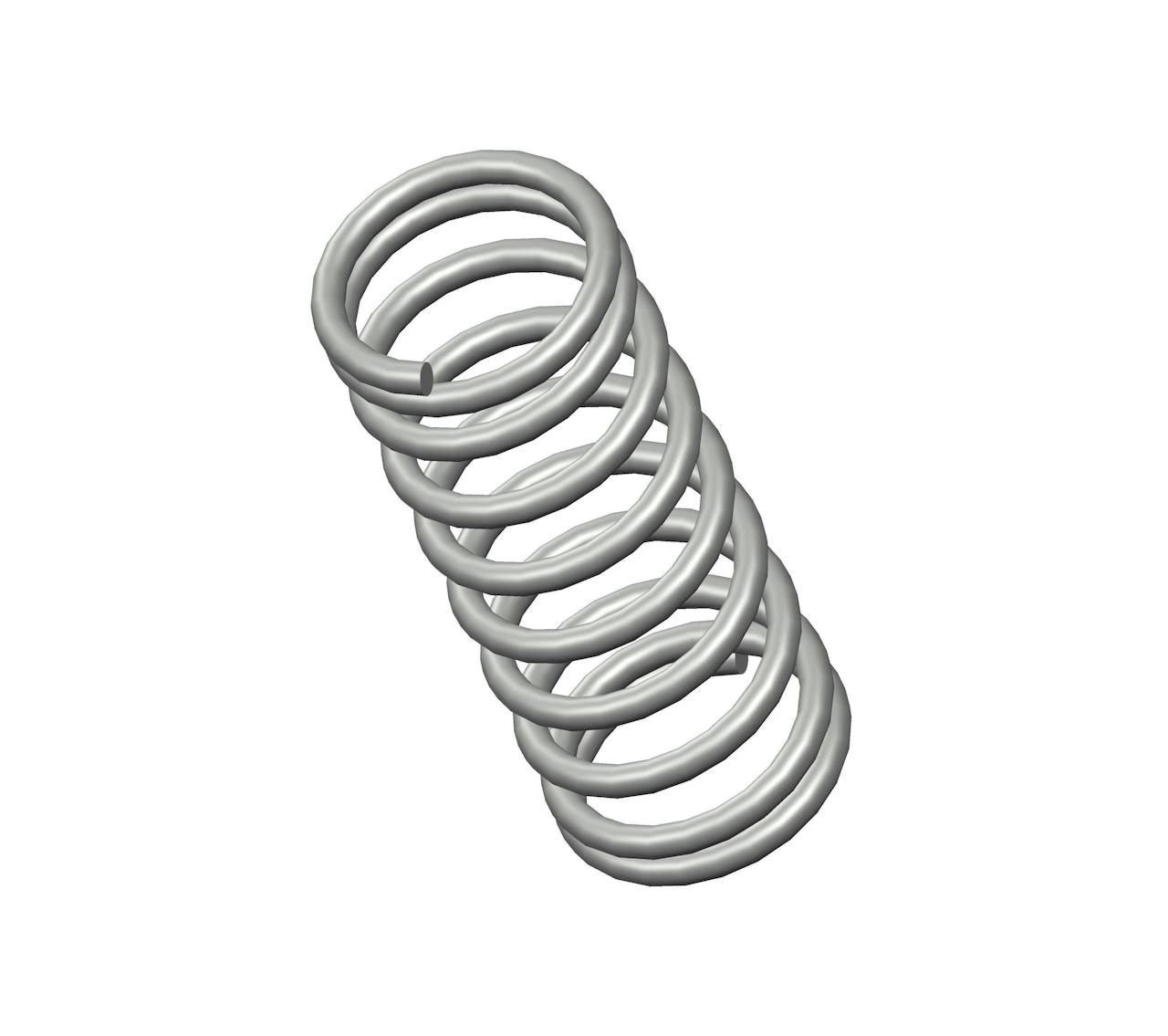

Compression spring manufactured from spring steel with 9.5 coils and closed ends. This spring features an O.D. of 0.593", and an I.D. of 0.465".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-58 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.56 in |
| Inside Diameter | 0.465 in |
| Material | Spring Steel |
| Outside Diameter | 0.593 in |
| Part Type | Standard |
| Rate | 22 lbs/in |
| SKU | Q-58CS |
| Solid Length | 0.67 in |
| Suggested Max Deflection | 0.73 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 9.5 |
| Wire Diameter | 0.064 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-58 |
| Ends | Closed |
| Finish | None |
| Free Length | 39.62 mm |
| Inside Diameter | 11.81 mm |
| Material | Spring Steel |
| Outside Diameter | 15.06 mm |
| Part Type | Standard |
| Rate | 3.85 N/mm |
| SKU | Q-58CS |
| Solid Length | 17.02 mm |
| Suggested Max Deflection | 18.54 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 9.5 |
| Wire Diameter | 1.63 mm |
The compression spring Q-58CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the Q-58 compression spring design exhibits exceptional tensile strength and resilience.
The Q-58 design is manufactured with a free length of 1.56", with an outer diameter of 0.593", an inner diameter of 0.465", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The Q-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The Q-58 design is manufactured with a free length of 1.56", with an outer diameter of 0.593", an inner diameter of 0.465", and a total of 9.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 22 lbs/in.
The Q-58CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-58 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
