Century Spring

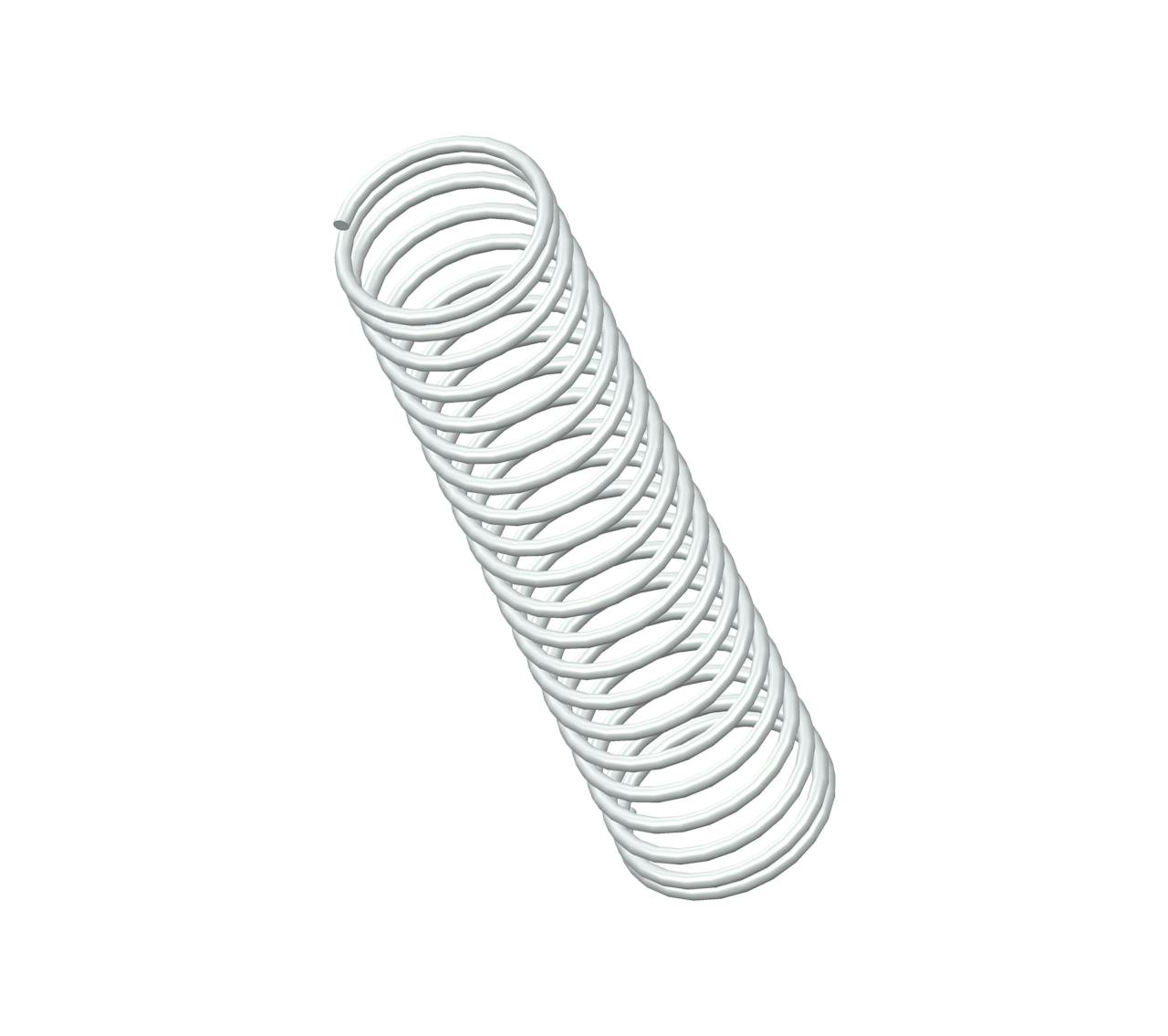

A10-25CS - 1.03" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 21 coils and closed ends. This spring features an O.D. of 0.25", and an I.D. of 0.214".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A10-25
Ends Closed
Finish None
Free Length 1.03 in
Inside Diameter 0.214 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 0.56 lbs/in
SKU A10-25CS
Solid Length 0.4 in
Suggested Max Deflection 0.64 in
Suggested Max Load 0.36 lbf
Total Coils 21
Wire Diameter 0.018 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name A10-25
Ends Closed
Finish None
Free Length 26.16 mm
Inside Diameter 5.44 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 0.1 N/mm
SKU A10-25CS
Solid Length 10.16 mm
Suggested Max Deflection 16.26 mm
Suggested Max Load 1.6 N
Total Coils 21
Wire Diameter 0.46 mm
The A10-25 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The A10-25CS compression spring is designed with a free length of 0.75" total of 19 coils, and a rate of 20 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The A10-25 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
