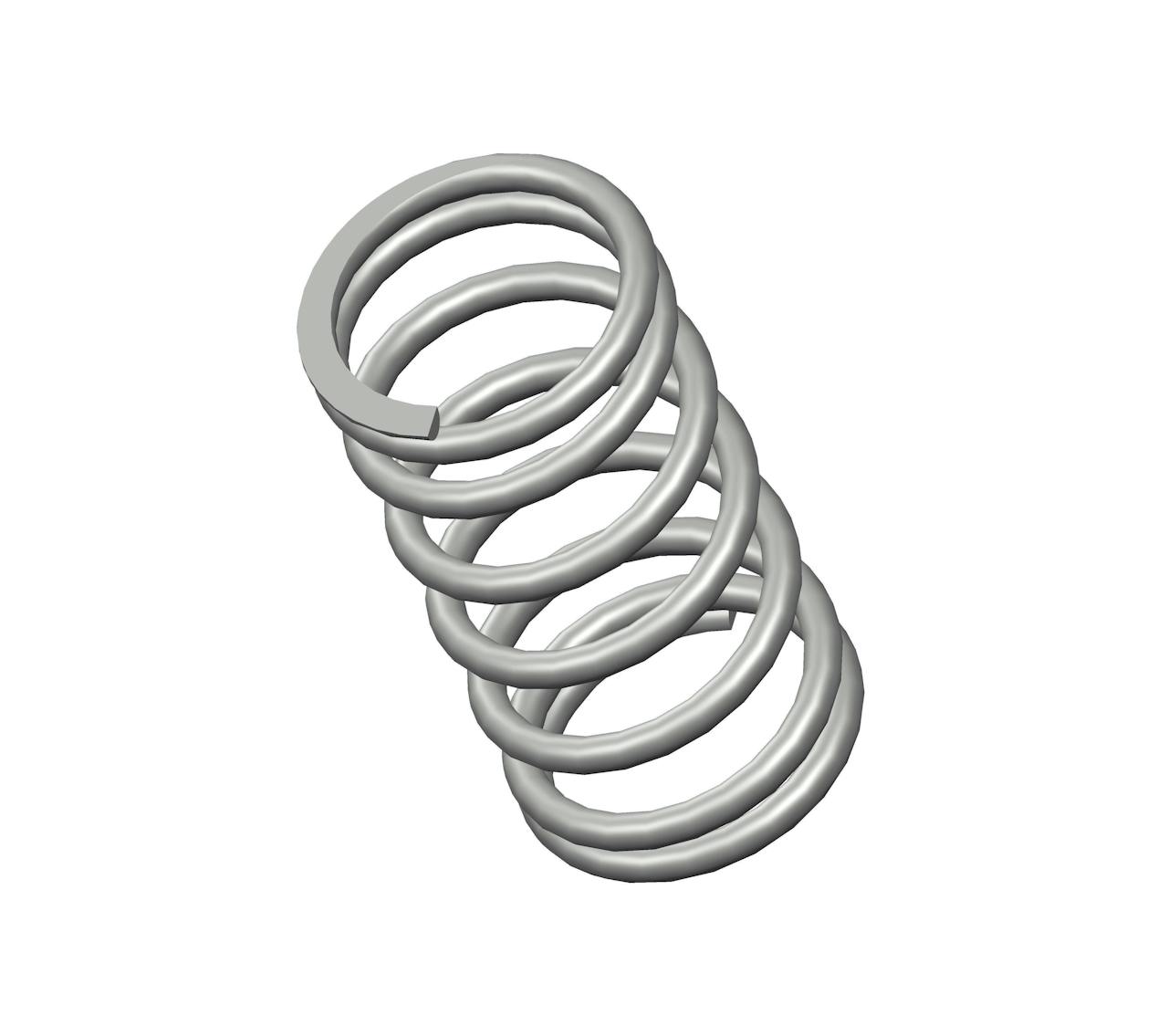

Q-51CS - 1.41" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.718", and an I.D. of 0.568".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-51 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.41 in |
| Inside Diameter | 0.568 in |
| Material | Spring Steel |
| Outside Diameter | 0.718 in |
| Part Type | Standard |
| Rate | 31 lbs/in |
| SKU | Q-51CS |
| Solid Length | 0.56 in |
| Suggested Max Deflection | 0.64 in |
| Suggested Max Load | 20 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.075 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-51 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 35.81 mm |
| Inside Diameter | 14.43 mm |
| Material | Spring Steel |
| Outside Diameter | 18.24 mm |
| Part Type | Standard |
| Rate | 5.43 N/mm |
| SKU | Q-51CS |
| Solid Length | 14.22 mm |
| Suggested Max Deflection | 16.26 mm |
| Suggested Max Load | 88.96 N |
| Total Coils | 7.5 |
| Wire Diameter | 1.91 mm |
The compression spring Q-51CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the Q-51 compression spring design exhibits exceptional tensile strength and resilience.
The Q-51 design is manufactured with a free length of 1.41", with an outer diameter of 0.718", an inner diameter of 0.568", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The Q-51CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-51 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The Q-51 design is manufactured with a free length of 1.41", with an outer diameter of 0.718", an inner diameter of 0.568", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 31 lbs/in.
The Q-51CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-51 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
