Shop Online > Springs > Extension > Regular

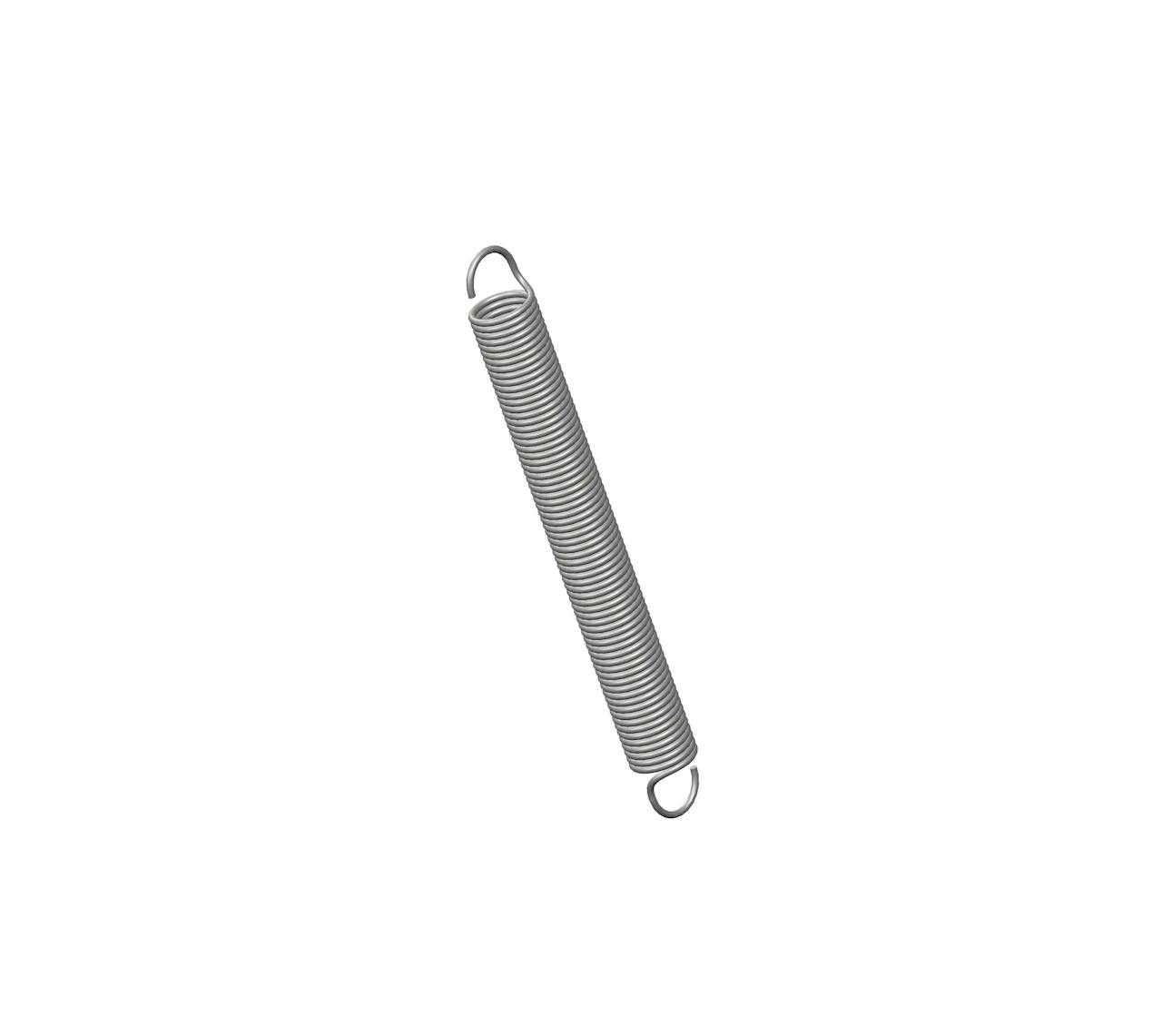

566CS - 3.5 Inch Spring Steel Extension Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Regular extension spring in Spring Steel. This spring features an O.D. of 0.375 Inch and an initial tension of 1 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 566 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 1 lb |
| Length | 3.5 in |
| Material | Spring Steel |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 1.5 lbs/in |
| SKU | 566CS |
| Sugg Max Deflection | 3.7 in |
| Sugg Max Load | 6.5 lbf |
| Wind Direction | Left |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 566 |
| Ends | Machine Hook |
| Finish | Zinc |
| Initial Tension | 0.45 kg |
| Length | 88.9 mm |
| Material | Spring Steel |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.26 N/mm |
| SKU | 566CS |
| Sugg Max Deflection | 93.98 mm |
| Sugg Max Load | 28.91 N |
| Wind Direction | Left |
| Wire Diameter | 1.04 mm |
