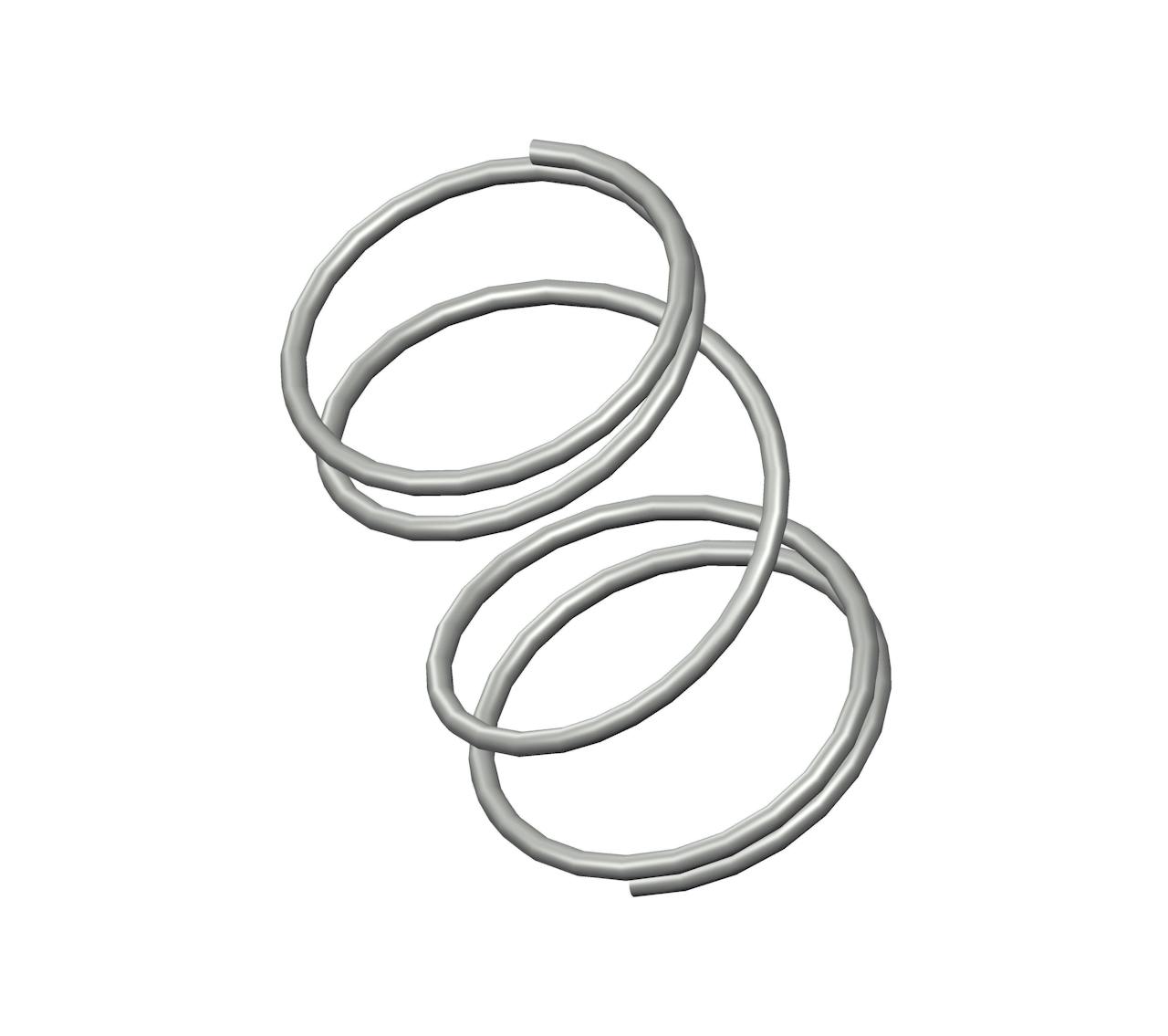

Q-39CS - 0.63" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 4.5 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.358".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-39 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.358 in |
| Material | Music Wire |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 3.4 lbs/in |
| SKU | Q-39CS |
| Solid Length | 0.13 in |
| Suggested Max Deflection | 0.49 in |
| Suggested Max Load | 1.7 lbf |
| Total Coils | 4.5 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-39 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 9.09 mm |
| Material | Music Wire |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 0.6 N/mm |
| SKU | Q-39CS |
| Solid Length | 3.3 mm |
| Suggested Max Deflection | 12.45 mm |
| Suggested Max Load | 7.56 N |
| Total Coils | 4.5 |
| Wire Diameter | 0.61 mm |
The compression spring Q-39CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the Q-39 compression spring design exhibits exceptional tensile strength and resilience.
The Q-39 design is manufactured with a free length of 0.63", with an outer diameter of 0.406", an inner diameter of 0.358", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.4 lbs/in.
The Q-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The Q-39 design is manufactured with a free length of 0.63", with an outer diameter of 0.406", an inner diameter of 0.358", and a total of 4.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.4 lbs/in.
The Q-39CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-39 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
