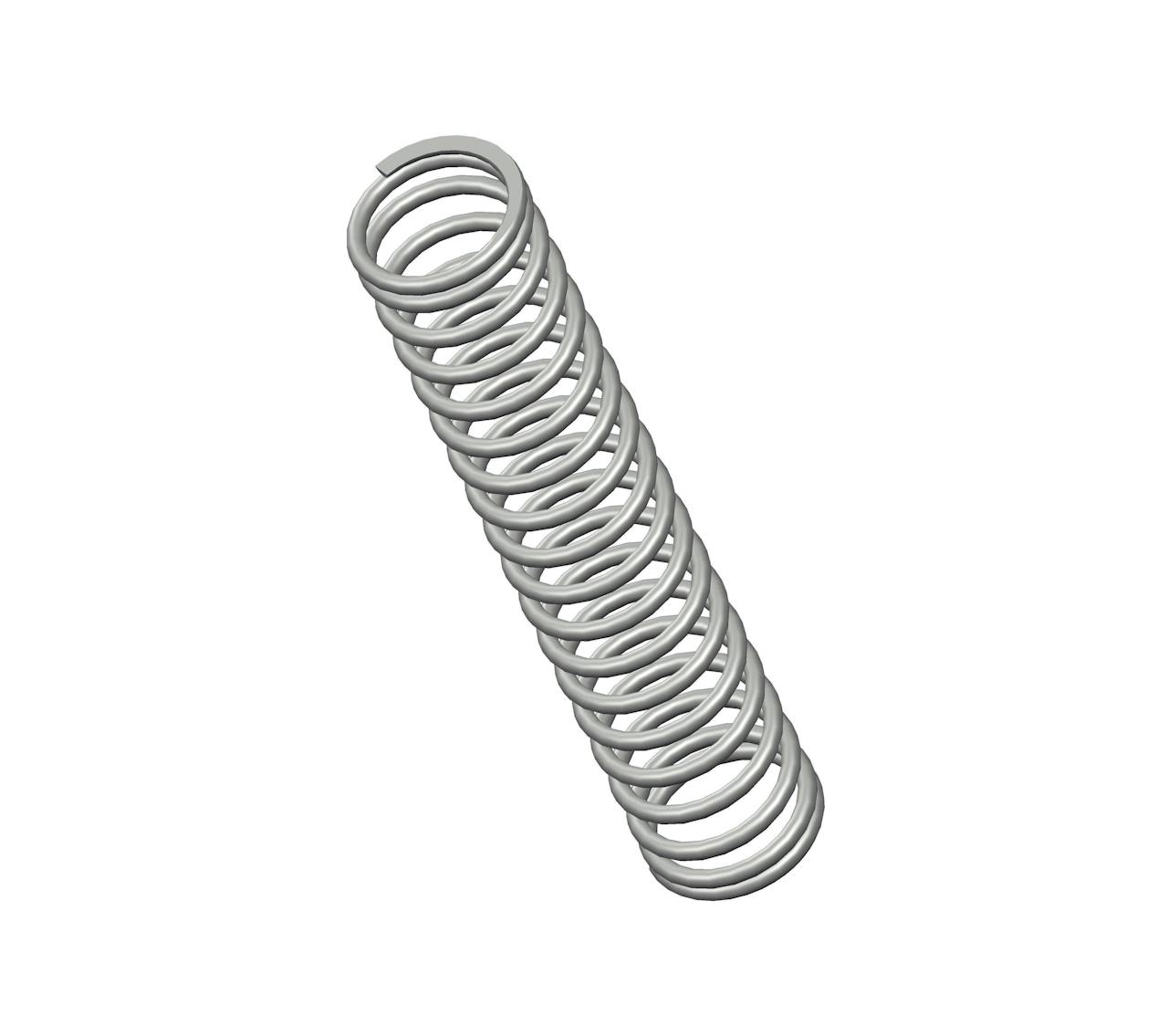

10086CS - 2" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 18.8 coils and closed & ground ends. This spring features an O.D. of 0.39", and an I.D. of 0.31".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10086
Ends Closed & Ground
Finish None
Free Length 2 in
Inside Diameter 0.31 in
Material Spring Steel
Outside Diameter 0.39 in
Part Type Standard
Rate 5.1 lbs/in
SKU 10086CS
Solid Length 0.75 in
Suggested Max Deflection 1.2 in
Suggested Max Load 6.3 lbf
Total Coils 18.8
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 10086
Ends Closed & Ground
Finish None
Free Length 50.8 mm
Inside Diameter 7.87 mm
Material Spring Steel
Outside Diameter 9.91 mm
Part Type Standard
Rate 0.89 N/mm
SKU 10086CS
Solid Length 19.05 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 28.02 N
Total Coils 18.8
Wire Diameter 1.02 mm
The compression spring 10086CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10086 compression spring design exhibits exceptional tensile strength and resilience.

The 10086 design is manufactured with a free length of 2", with an outer diameter of 0.39", an inner diameter of 0.31", and a total of 18.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.1 lbs/in.

The 10086CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10086 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
