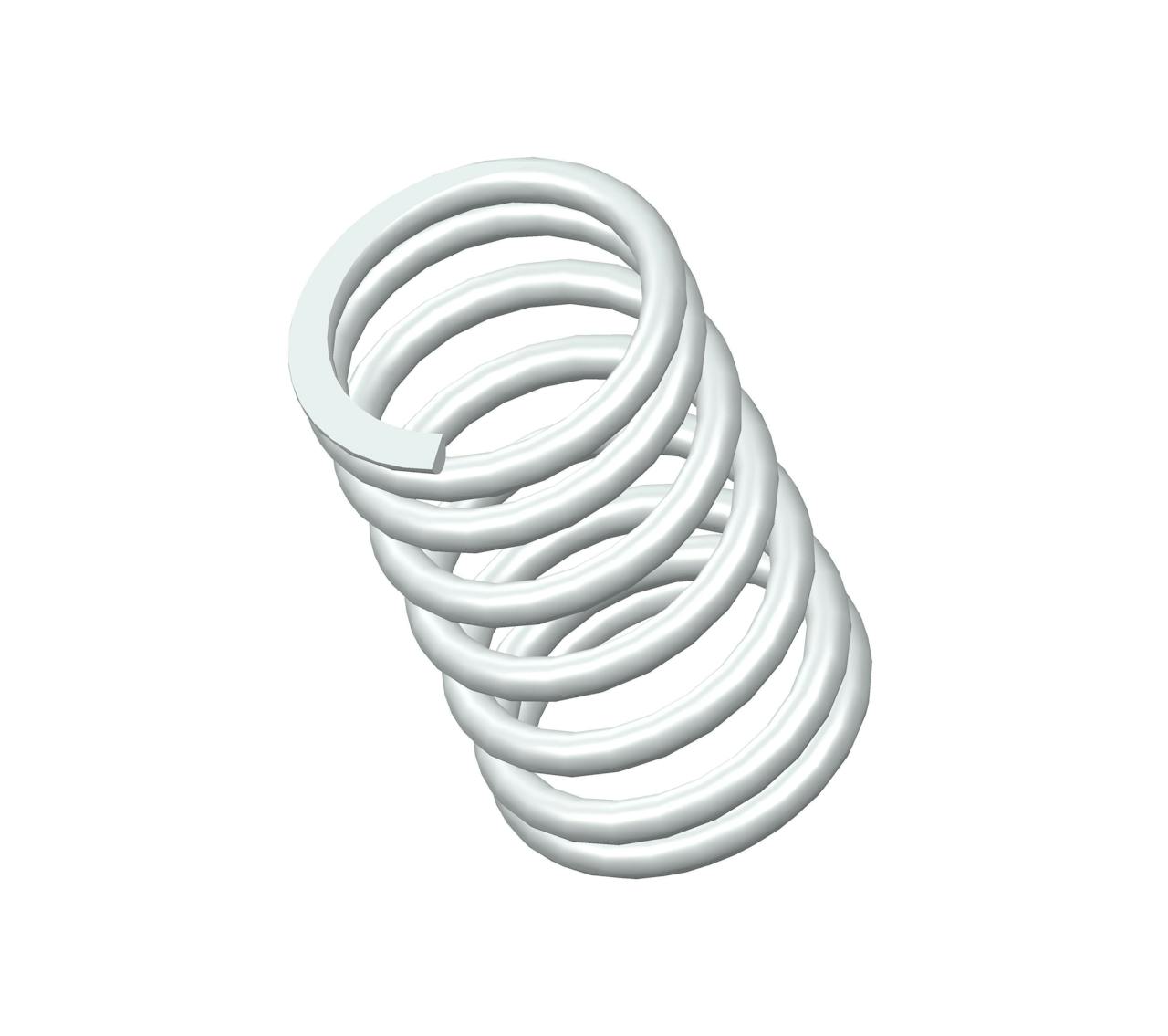

Q-33CS - 1" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 0.609", and an I.D. of 0.475".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name Q-33
Ends Closed & Ground
Finish None
Free Length 1 in
Inside Diameter 0.475 in
Material 302/304 Stainless Steel
Outside Diameter 0.609 in
Part Type Standard
Rate 29 lbs/in
SKU Q-33CS
Solid Length 0.5 in
Suggested Max Deflection 0.5 in
Suggested Max Load 14 lbf
Total Coils 7.5
Wire Diameter 0.067 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name Q-33
Ends Closed & Ground
Finish None
Free Length 25.4 mm
Inside Diameter 12.07 mm
Material 302/304 Stainless Steel
Outside Diameter 15.47 mm
Part Type Standard
Rate 5.08 N/mm
SKU Q-33CS
Solid Length 12.7 mm
Suggested Max Deflection 12.7 mm
Suggested Max Load 62.27 N
Total Coils 7.5
Wire Diameter 1.7 mm
The compression spring Q-33CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the Q-33 compression spring design exhibits exceptional tensile strength and resilience.

The Q-33 design is manufactured with a free length of 1", with an outer diameter of 0.609", an inner diameter of 0.475", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.

The Q-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring Q-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
